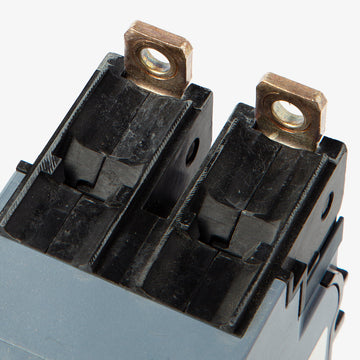

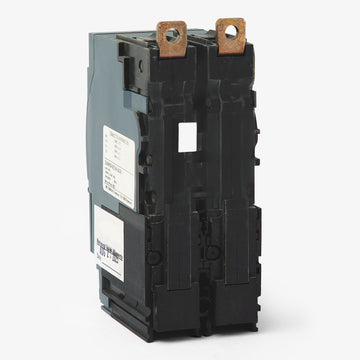

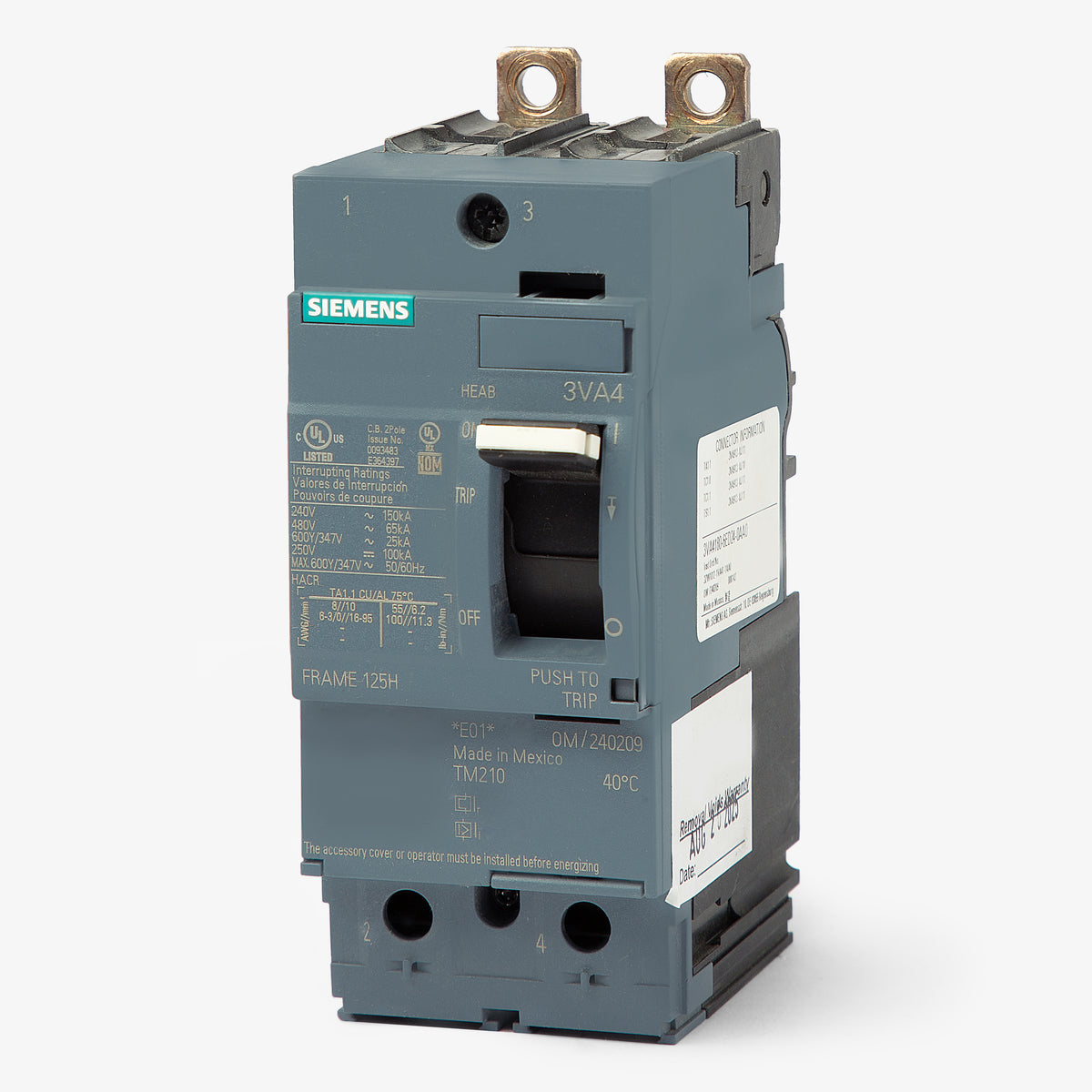

Siemens 3VA4145-6ED24-0AA0 Molded Case Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Siemens
3VA4145-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4145-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4145-6ED24-0AA0 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens 3VA4145-6ED24-0AA0 is a 2-pole, 45A molded case circuit breaker from the 3VA4 frame family. It provides dependable protection using a fixed thermal-magnetic TM210 trip unit. This bolt-on MCCB installs into Siemens P1 panelboards. It serves as a modern replacement for legacy ED62B045 and HED42B045 breakers, simplifying facility upgrades. Rated 65kAIC at 480V, this Class H breaker features current-limiting capabilities and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich panelboards are compatible with the 3VA4145-6ED24-0AA0?
This 3VA41 frame breaker is designed for bolt-on installation in Siemens P1 panelboards.
Can this breaker replace older Siemens ED-frame breakers?
Yes, the 3VA4145-6ED24-0AA0 serves as a modern replacement for legacy ED62B045 and HED42B045 circuit breakers, simplifying facility upgrades.

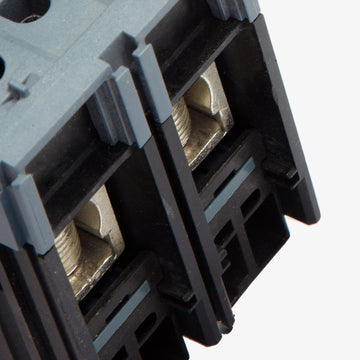

What wire sizes are accepted by the lugs on this breaker?
The factory-installed clamp terminals accept both copper and aluminum conductors ranging from 8 AWG to 3/0 AWG.
Can the trip settings be adjusted on this 45A breaker?
No, it features a TM210 thermal-magnetic trip unit with fixed long-time and fixed instantaneous settings. It does not offer field adjustability.
Is this breaker suitable for heating, air conditioning, and refrigeration equipment?
Yes, the 3VA4145-6ED24-0AA0 is HACR rated, making it suitable for protecting HVACR circuits.
Is this breaker rated for direct current (DC) applications?
Yes, it is rated for up to 250VDC with an interrupting capacity of 100kA, making it suitable for specific DC distribution systems.
