Siemens 3VA6580-6HN32-0AA0 Molded Case Circuit Breaker
- 800A
- 3 Pole
- Panel Mount
Siemens
3VA6580-6HN32-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6580-6HN32-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

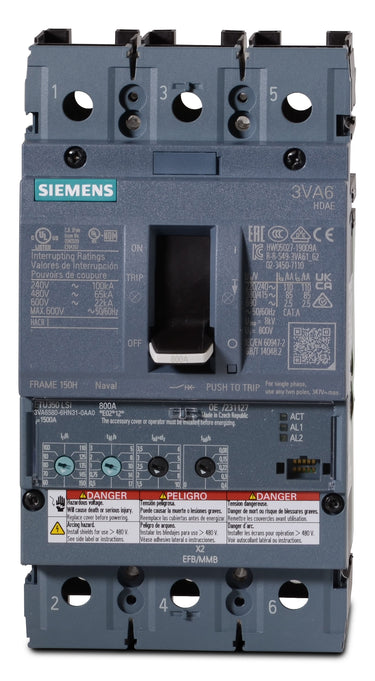

Siemens 3VA6580-6HN32-0AA0 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens 3VA6580-6HN32-0AA0 is a 3-pole, 800A molded case circuit breaker. It provides reliable protection with an ETU350 LSI electronic trip unit, allowing for precise long-time, short-time, and instantaneous adjustments. This panel mount MCCB installs into Siemens P4 and P5 panelboards and switchboards via nut keeper terminals. Boasting a Class H breaking capacity of 65kA at 480V, this current-limiting breaker is HACR rated for reverse feed.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6580-6HN32-0AA0 |
| Series | 3VA6 |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 320-800A |
|---|
| Terminal Type | Nut Keeper |
|---|---|
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Lugs |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan I install the 3VA6580-6HN32-0AA0 in existing Siemens panelboards?
This breaker is designed for Siemens P4 and P5 panelboards, as well as Siemens switchboards. When retrofitting into existing P5 panels or switchboards, specific 3VA branch strap kits or OEM bus kits are required to properly mount the 3VA65 frame.
How does the LSI trip function on the ETU350 operate?
The ETU350 electronic trip unit provides adjustable Long-Time for overload protection, Short-Time for short circuit delay, and Instantaneous for immediate short circuit protection. This allows panel builders to fine-tune the breaker's response curve to coordinate with other protective devices in the electrical system.
How do I connect cables to the nut keeper terminals on this breaker?
Nut keeper terminals do not include standard mechanical wire lugs. Instead, they provide a captive nut assembly on the breaker pads. This design accepts bolt-on compression lugs or direct busbar connections on both the line and load sides.
Are mechanical wire lugs included with the 3VA6580-6HN32-0AA0?
No, this model ships exclusively with nut keeper terminals. If you need to terminate standard bare copper or aluminum wire, you must purchase compatible Siemens mechanical lug kits separately.
Is the 3VA6580-6HN32-0AA0 a direct physical replacement for legacy Siemens 800A breakers?
No. While it upgrades older 800A frames with modern electronic trip technology, the 3VA65 frame has different physical dimensions. You will need the appropriate 3VA retrofit mounting hardware to install it in existing switchboards or panels that previously housed older frame types.
Is the 3VA6580-6HN32-0AA0 suitable for heating and cooling equipment?
Yes, this breaker is HACR rated. It is certified for safe use with heating, air conditioning, and refrigeration equipment that requires a high-capacity 800A disconnect.
