Siemens QE215 GFEP Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Siemens
QE215
GFEP Miniature Circuit Breaker
Brand
Siemens
SKU
QE215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

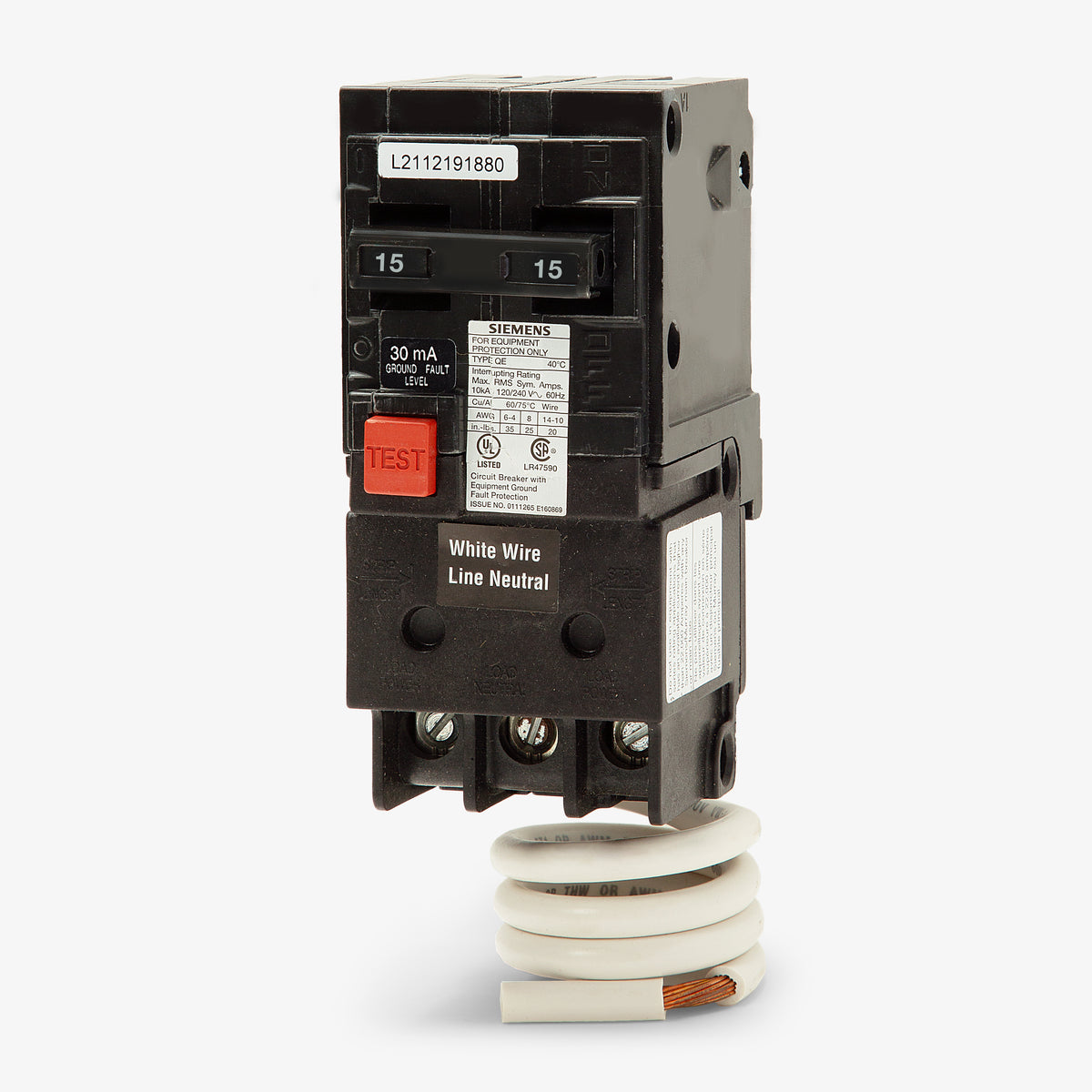

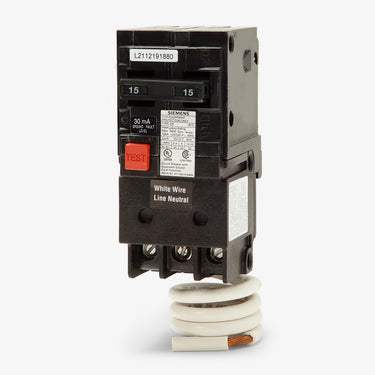

Siemens QE215 - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
60A GFEP Miniature Circuit Breaker
Description
Engineered for reliable equipment safety, the Siemens QE215 is a 15-amp, two-pole GFEP circuit breaker. It provides a 30mA trip threshold to defend machinery against damaging line-to-ground faults in residential, commercial, and industrial applications. This plug-on breaker mounts into Siemens EQ, PL, ES, and Ultimate load centers. It serves as a replacement for the legacy Q215EG model. Rated at 10 kAIC, the thermal-magnetic unit features HACR and SWD ratings for versatile use.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QE215 |
| Series | QE |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, EQ, PL, ES, Ultimate Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 10 AWG (Cu), 8 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire, Common Trip |
Product FAQs
5 answersWhich load centers are compatible with the Siemens QE215?
This plug-on breaker is designed for use in Siemens EQ, PL, ES, and Ultimate load centers.
What is the ground fault trip threshold for the QE series?
The QE215 features a 30mA trip sensitivity, which is standard for Ground Fault Equipment Protection (GFEP) applications.
Can the QE215 be used for personnel ground fault protection?
No. The QE215 is a GFEP breaker with a 30mA trip threshold designed to protect equipment, such as heat trace cables or machinery, from line-to-ground faults. It does not provide the 5mA trip sensitivity required for Class A personnel GFCI protection.
Does the QE215 replace any older Siemens or ITE part numbers?
Yes, the QE215 serves as a direct replacement for the legacy Q215EG circuit breaker.
How is the neutral connection made on the QE215?
This breaker utilizes a pigtail neutral wire that must be connected directly to the neutral bus bar in your load center to ensure proper ground fault equipment protection.
