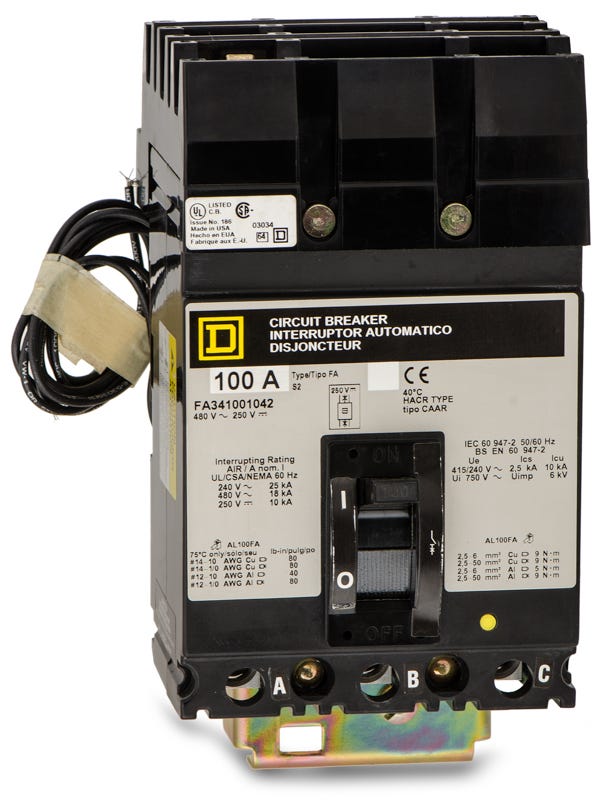

Square D FA341001042 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
FA341001042
Molded Case Circuit Breaker
Brand
Square D
SKU
FA341001042
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA341001042 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial distribution, this 100-amp molded case circuit breaker delivers dependable thermal-magnetic protection. It mounts into Square D I-Line panelboards and switchboards, utilizing a plug-on phase connection for fast, secure installation. Equipped with a factory-installed 12/24V AC/DC shunt trip, the unit allows for remote tripping capabilities in safety or control circuits. For facility upgrades, this legacy breaker is replaced by the modern HDA36100.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA341001042 |
| Series | FA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the 1042 suffix indicate on the FA341001042?
The 1042 suffix designates a factory-installed 12/24V AC/DC shunt trip. This accessory allows the breaker to be opened remotely via a control signal, which is commonly used for emergency stops or automated safety disconnects.
Can I install the FA341001042 in a standard QO or NQ load center?
No. The FA341001042 is an F-frame molded case circuit breaker with an I-Line mounting style. It is exclusively compatible with Square D I-Line panelboards and switchboards, and will not fit in QO, NQ, or NF series panels.
What is the modern replacement for the FA341001042 I-Line breaker?
The legacy FA series has been superseded by the Square D PowerPact H-frame lineup. The base replacement is the HDA36100, but to replicate the remote tripping capability of the 1042 suffix, a compatible 12/24V shunt trip accessory must be installed in the PowerPact breaker.
How do I wire the shunt trip on the FA341001042?
The factory-installed shunt trip includes control wire leads that exit the breaker housing. These leads must be connected to an external 12V or 24V AC/DC power source routed through a normally open contact, such as an emergency stop button or control relay.
Does the FA341001042 provide ground fault or arc fault protection?
No. This breaker features standard thermal magnetic trip technology for overload and short-circuit protection. It does not include GFCI or AFCI capabilities.
Can the trip settings on the FA341001042 be adjusted for specific coordination requirements?
No. The FA341001042 features fixed thermal and fixed magnetic trip settings. If your application requires adjustable long-time or instantaneous pickup settings for selective coordination, you will need to upgrade to a breaker with an electronic trip unit.
