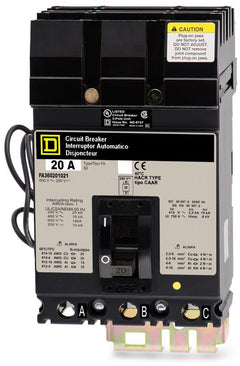

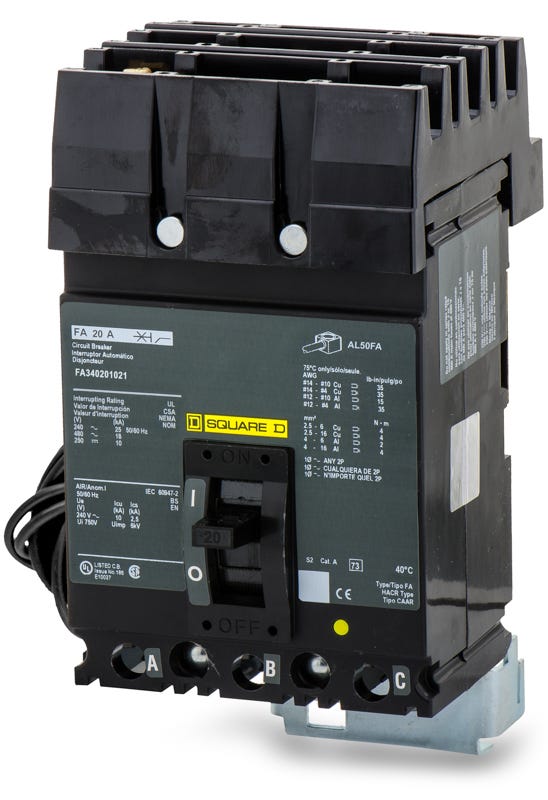

Square D FA340201021 Molded Case Circuit Breaker
- 20A
- 3 Pole
- I-Line
Square D
FA340201021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA340201021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA340201021 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial environments, the Square D FA340201021 is a 3-pole thermal-magnetic molded case circuit breaker. It is engineered to mount into Square D I-Line panelboards, offering robust overcurrent protection with long-time and instantaneous (LI) trip functions. This legacy F-Frame unit is replaced by the PowerPact HDA36020 combined with an S29386 shunt trip accessory. It provides an 18 kAIC rating at 480VAC and includes a Visi-Trip indicator for clear status visibility.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA340201021 |
| Series | FA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip, Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the FA340201021 circuit breaker?
This breaker is engineered specifically for installation in Square D I-Line panelboards and I-Line switchboards. It is not compatible with standard QO, NQ, or NF series panels.
What is the current replacement for the legacy FA340201021 breaker?
The legacy F-Frame series has been superseded by the Square D PowerPact H-Frame series. The modern equivalent is the HDA36020 circuit breaker, which must be paired with an S29386 shunt trip accessory to match the original functionality.
What does the 1021 suffix mean on this specific FA series breaker?
The 1021 suffix indicates the inclusion of a factory-installed 120V AC shunt trip accessory. This allows the breaker to be tripped remotely via an external control signal, which is commonly used for emergency shutdowns or automated control systems.
How is the FA340201021 wired and mounted?
This breaker utilizes an I-Line plug-on connection for the line side, which attaches directly to the panelboard bus assembly. The load side features mechanical lugs that accept 14 AWG to 4 AWG copper or aluminum wire.
What type of trip unit is equipped in the FA340201021?
It features a fixed thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions. The thermal component handles sustained overloads, while the magnetic component provides immediate tripping during short-circuit events.
How does the FA340201021 indicate a tripped condition?
When the breaker trips due to an overload or short circuit, the operating handle moves to a center position between ON and OFF. This provides clear visual confirmation that the circuit has been interrupted.
