Square D FY12020C Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
FY12020C
Molded Case Circuit Breaker
Brand
Square D
SKU
FY12020C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

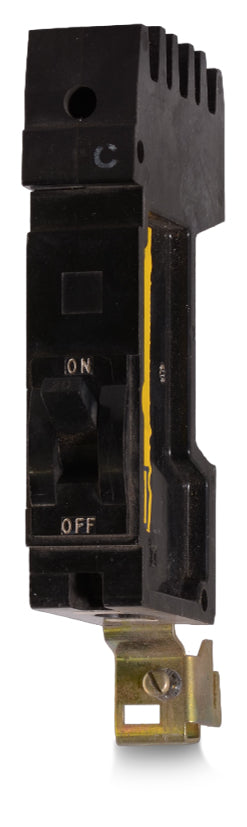

Square D FY12020C - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, this 20A molded case circuit breaker delivers reliable thermal-magnetic protection. Designed to install into Square D I-Line panelboards, this legacy F-Frame breaker utilizes a plug-in mounting system. For modern upgrades, it is replaced by the BDA140205 model. Rated at 18kAIC at 120VAC, it includes a factory-configured Phase C connection and a Visi-Trip indicator. It is SWD and HACR rated for versatile switching and HVAC applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY12020C |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase C Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase C Connection, Visual Trip Indicator |
Product FAQs
5 answersCan I install the FY12020C in a standard Square D QO or Homeline load center?
No. The FY12020C features an I-Line plug-in mounting style, which is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in QO, Homeline, or NQOD residential and light commercial load centers.
What does the 'C' in the FY12020C catalog number indicate?
In Square D I-Line nomenclature, the trailing letter on a 1-pole breaker indicates the specific phase connection on the panelboard bus. The 'C' signifies that this breaker is factory-configured with the jaw positioned to connect to Phase C of the I-Line bus.
Does this breaker require a separate mounting bracket or strap for installation?
No. The I-Line mounting system is designed so the breaker plugs directly into the panelboard bus stack. The mechanical mounting and electrical connections are made simultaneously without the need for external mounting brackets or bus straps.
What is the modern replacement for the legacy FY12020C breaker?
The FY frame is a legacy series that has been largely phased out. When upgrading or replacing this unit in an I-Line panel, electricians typically cross-reference to the newer Square D PowerPact B-frame (such as the BDA series) or FA frame breakers that match the 20A, 1-pole, 120V, and 18kAIC requirements.
Can the trip settings on the FY12020C be adjusted in the field?
No. This breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip points are factory-calibrated and cannot be modified by the user.
