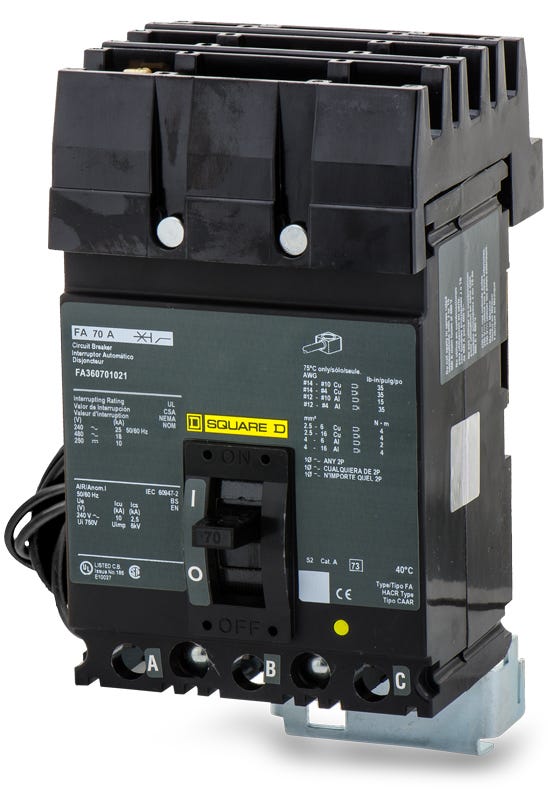

Square D FA36070-1021 Molded Case Circuit Breaker
- 70A
- 3 Pole
- I-Line
Square D
FA36070-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA36070-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA36070-1021 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D FA36070-1021 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA36070-1021 |
| Series | FA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D FA36070-1021 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA36070-1021-R |
| Series | FA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for advanced control, the Square D FA36070-1021 integrates a 120-240VAC shunt trip for remote disconnection. This 3-pole, 70A MCCB utilizes thermal-magnetic technology to deliver reliable long-time and instantaneous (LI) protection. The F-Frame breaker installs into Square D I-Line panelboards using a plug-on connection. For modernizing older infrastructure, this configuration is replaced by the HDA36070SA.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA36070-1021 |
| Series | FA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the -1021 suffix indicate on the FA36070-1021?
The -1021 suffix designates a factory-installed 120/240VAC shunt trip. This internal accessory allows the breaker to be opened remotely by an external control signal, which is commonly used for emergency stops or automated control systems.
What is the current PowerPact replacement for the legacy FA36070-1021?
The modern equivalent for this legacy F-Frame MCCB is the Square D PowerPact H-Frame HDA36070SA for 120VAC control circuits, or HDA36070SD for 240VAC control circuits. Both maintain the 70A rating, matching interrupting capacity, and I-Line plug-on mounting.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the FA36070-1021 utilizes a standard thermal-magnetic trip unit with fixed long-time and fixed instantaneous functions. If your application requires adjustable trip curves, you will need to upgrade to a breaker with an electronic trip unit.
Can I add a shunt trip to a standard FA36070 in the field?
No, internal accessories like shunt trips and auxiliary switches for legacy Square D F-Frame breakers are factory-installed. You must specify the correct catalog suffix, such as -1021, at the time of purchase if your application requires remote tripping.
How does the FA36070-1021 mount into the panelboard?
This breaker uses an I-Line style plug-on connection. The line side features plug-on jaws that engage directly with the busbar stack in Square D I-Line panelboards and switchboards, while the load side uses standard mechanical lugs.
