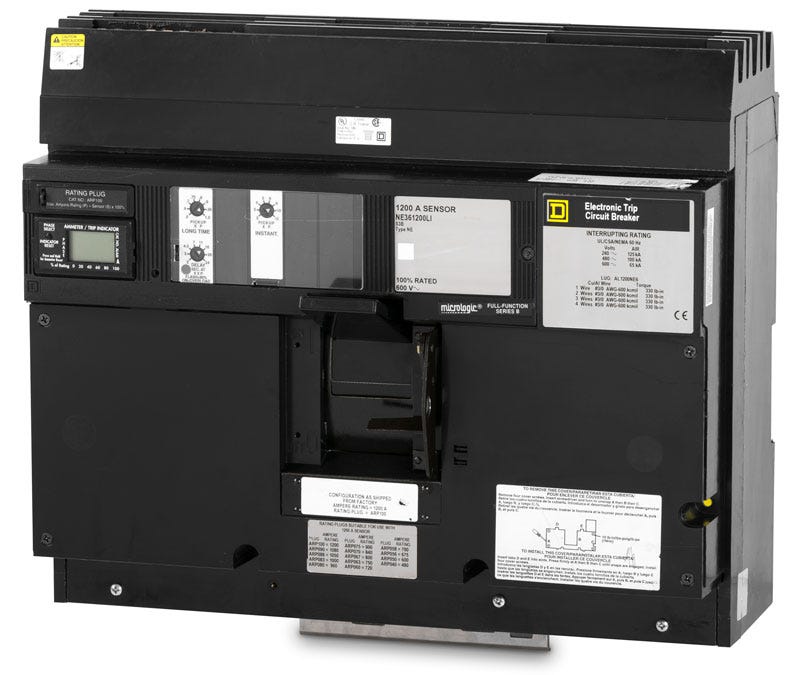

Square D NE361200LI Molded Case Circuit Breaker
- 1200A
- 3 Pole
- I-Line
Square D
NE361200LI
Molded Case Circuit Breaker
Brand
Square D
SKU
NE361200LI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D NE361200LI - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D NE361200LI - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | NE361200LI |
| Series | NE |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) or (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Micrologic Standard Trip Unit (LI) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, True RMS Sensing, Non-Interchangeable Trip |
Quantity
Square D NE361200LI - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | NE |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) or (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Micrologic Standard Trip Unit (LI) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, True RMS Sensing, Non-Interchangeable Trip |
Similar Items
Description
Part of the legacy N-Frame series, this 1200A electronic trip molded case circuit breaker delivers reliable commercial and industrial power distribution. Designed for Square D I-Line panelboards and switchboards, it utilizes a plug-on mounting style for secure installation. This unit is the predecessor to the modern PLA36120U31A replacement. It features a Micrologic standard trip unit with adjustable long-time and instantaneous (LI) protection settings for precise system coordination.Specifications
| Brand | Square D |
|---|---|
| Series | NE |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) or (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Micrologic Standard Trip Unit (LI) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, True RMS Sensing, Non-Interchangeable Trip |
Product FAQs
5 answersWhat type of panelboards accept the NE361200LI circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side for secure busbar mounting.
How much mounting space does this N-frame breaker require in an I-Line panel?
The NE361200LI requires 15 inches of mounting space within a compatible I-Line panelboard or switchboard.
What does the "LI" designation in the NE361200LI catalog number indicate?
The "LI" signifies that the breaker is equipped with a solid-state electronic trip unit featuring adjustable Long-Time and Instantaneous protection settings. This allows for precise coordination with other protective devices in the system.
What are the acceptable wire sizes for the load lugs on this 1200A breaker?
The standard load-side lugs accept either three or four 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Is the Square D NE361200LI still in active production?
The NE361200LI is part of the legacy N-frame series. For modern replacements, Square D has transitioned to the PowerPact P-frame series, such as the PLA36120U31A, which offers similar ratings and I-Line compatibility.
