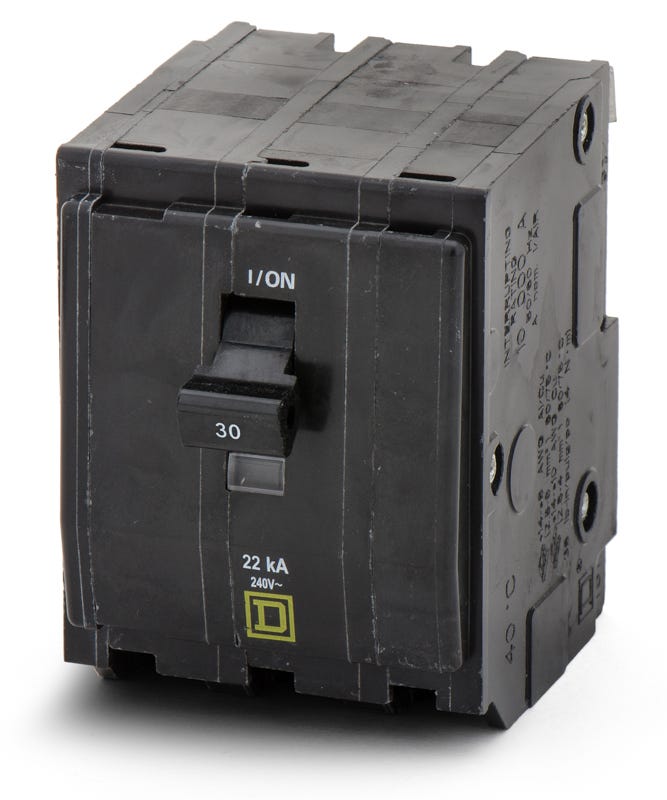

Square D QO330VH Miniature Circuit Breaker
- 30A
- 3 Pole
- Plug-On
Square D
QO330VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO330VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO330VH - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Delivering enhanced 22kAIC fault protection, this three-pole 30A miniature breaker serves commercial and industrial distribution needs. The unit installs into Square D QO load centers, NQ panelboards, and Speed-D switchboards using a standard plug-on configuration. It features the signature Visi-Trip indicator for rapid fault identification and carries an HACR rating for specialized HVAC applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO330VH |
| Series | QO |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Common Trip |
Product FAQs
6 answersCan I install the QO330VH in a Square D Homeline panel?
No. QO series breakers are not interchangeable with Homeline panels. The QO330VH is designed exclusively for Square D QO load centers, NQ panelboards, and Speed-D switchboards.
What does the VH stand for in the QO330VH catalog number?
The VH suffix designates a high interrupting rating of 22kAIC at 240V. Standard QO breakers without the VH suffix typically have a 10kAIC rating.
How many panel spaces does this 3-pole breaker require?
The QO330VH requires three standard 0.75-inch spaces in a compatible QO or NQ panel, taking up a total width of 2.25 inches.
What are the wire size and torque specifications for the QO330VH?
The pressure plate terminals accept 14 AWG to 8 AWG copper or aluminum wire. The recommended tightening torque for the terminals is 40.7 lb-in (4.6 N.m).
Is the QO330VH suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires HACR rated circuit protection.
Can I use the QO330VH to replace a standard QO330 breaker?
Yes, the QO330VH can replace a standard QO330. It provides the same 30A protection and physical footprint but offers an upgraded 22kAIC interrupt rating compared to the standard 10kAIC rating.
