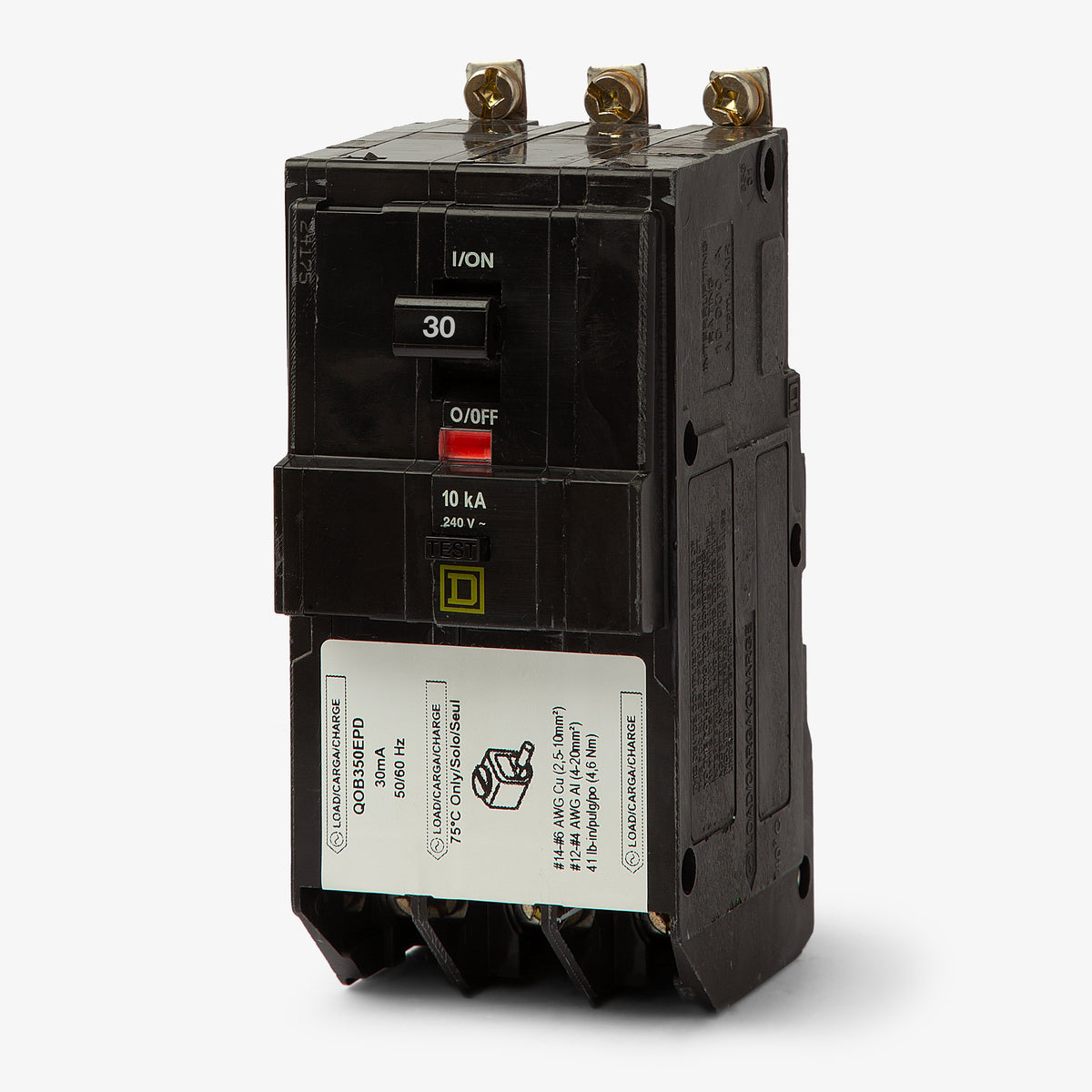

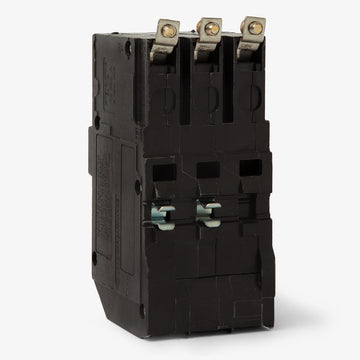

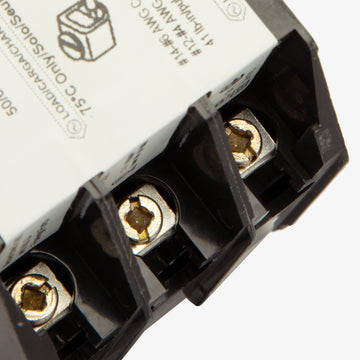

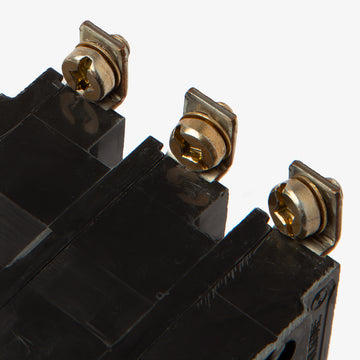

Square D QOB330EPD GFEP Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
QOB330EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB330EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB330EPD - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Schneider Electric / Square DQOB320EPD
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
50A GFEP Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this 30A three-pole GFEP device provides essential 30mA equipment-level ground fault protection. It installs securely into Square D NQ and NQOD panelboards via a standard bolt-on connection, ensuring reliable performance in demanding environments. Featuring a 10kAIC rating at 240VAC and the signature Visi-Trip indicator, maintenance personnel can quickly identify tripped circuits to minimize costly operational downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB330EPD |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 12-4 AWG (Al), 14-6 AWG (Cu) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Handle Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Ground Fault Protection |
Product FAQs
6 answersWhich panelboards are compatible with the QOB330EPD?
This bolt-on circuit breaker is designed exclusively for use in Square D NQ and NQOD panelboards. It will not fit in standard QO load centers that require plug-on breakers.
What does the EPD designation mean on this breaker?
EPD stands for Equipment Protection Device. It provides a 30 mA ground fault trip threshold, known as Class B protection, designed to protect equipment from damaging line-to-ground faults rather than providing personnel protection.
How does a 30 mA EPD breaker differ from a standard GFCI?
A standard Class A GFCI trips at 5 mA to protect personnel from electric shock. This Class B EPD breaker trips at 30 mA and is intended to protect equipment, such as heat trace cables or industrial machinery, from ground faults without nuisance tripping.
How many panel spaces does the QOB330EPD require?
As a 3-pole breaker, it requires three standard 0.75-inch spaces in a compatible NQ or NQOD panelboard.
How is the neutral connected on this breaker?
This breaker features a pigtail neutral wire that must be wired directly to the panelboard neutral bar. This connection is required to power the internal ground fault monitoring circuitry, even if the 240V load does not use a neutral.
Does this breaker include a tripped status indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or ground fault, the handle snaps to a center position and a highly visible red indicator appears.
