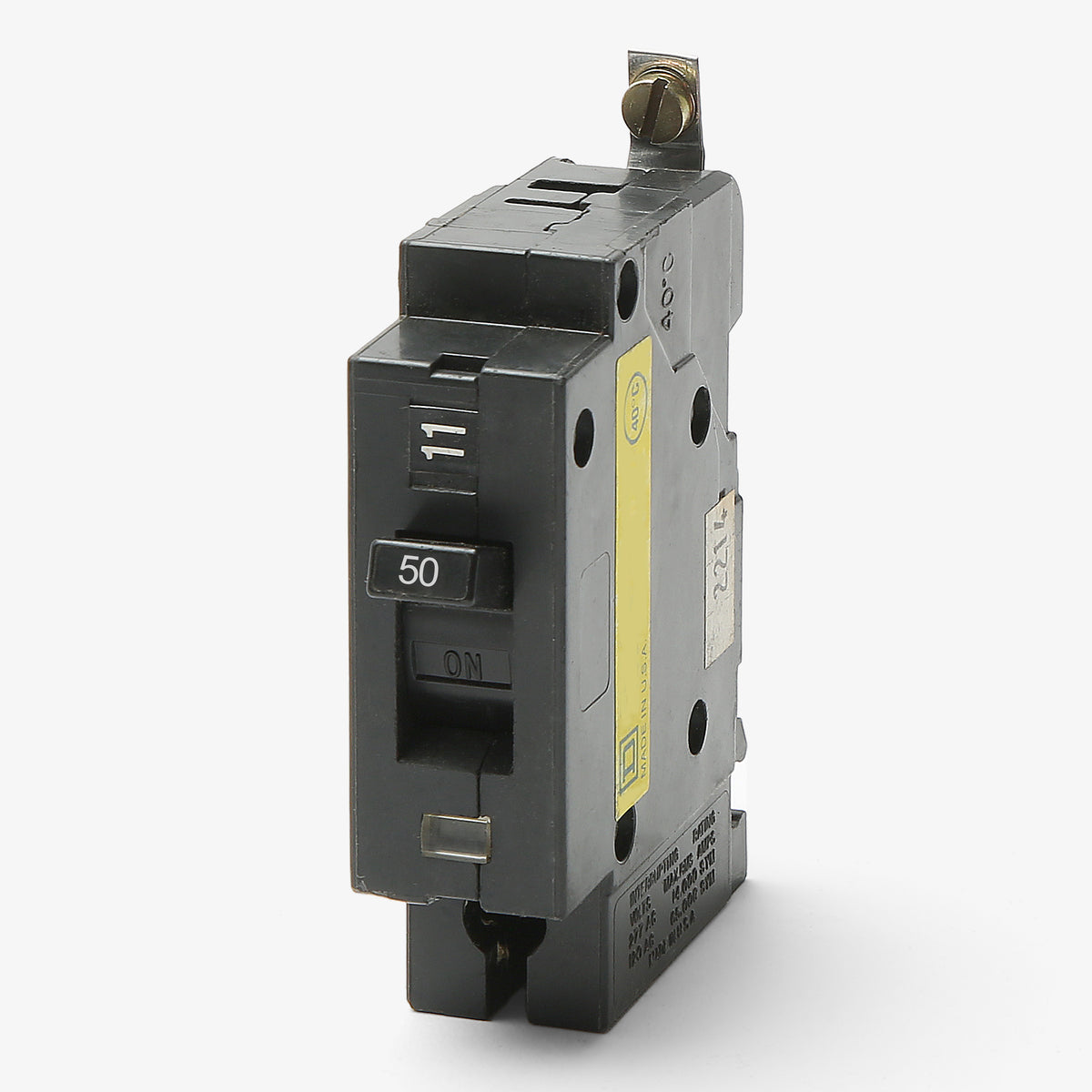

Square D EHB14050 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Square D
EHB14050
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

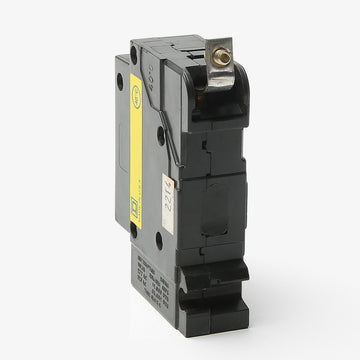

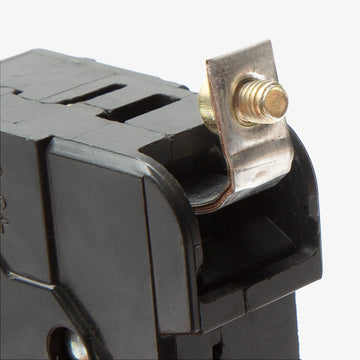

Square D EHB14050 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Part of Square D's discontinued E-Frame series, this 1-pole 50A molded case circuit breaker is engineered for 120/277VAC commercial systems. It features a bolt-on connection designed strictly for legacy NEHB panelboards. The modern EDB14050 replacement requires an upgrade to an NF panelboard and will not fit NEHB enclosures. This unit provides reliable thermal-magnetic protection with a 14kA interrupting rating at 277V and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14050-R |
| Series | EHB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EHB14050 circuit breaker?
This bolt-on breaker is designed specifically for use in legacy Square D NEHB series panelboards.
Is the Square D EHB14050 circuit breaker still actively manufactured?
No, the EHB series is a legacy product line that has been made obsolete by Square D. Replacements are typically sourced to maintain existing NEHB panelboards without requiring a full panel upgrade.

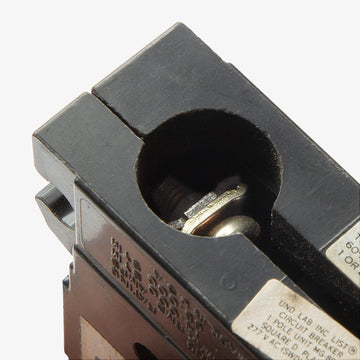

What wire sizes are accepted by the lugs on the EHB14050?
The factory lugs accept 14 AWG to 2/0 AWG copper wire, or 12 AWG to 2/0 AWG aluminum wire. Ensure proper torque specifications are applied during installation.
How does the interrupting rating differ between 120V and 277V applications?
The EHB14050 provides a 65kAIC rating when applied at 120VAC, but the interrupting capacity drops to 14kAIC when used on 277VAC systems. Verify your available fault current before installation.
Does the EHB14050 mount to a standard DIN rail?
No, this is a bolt-on molded case circuit breaker. It requires a bolted connection directly to the busbar of an NEHB panelboard and cannot be DIN rail mounted.
What type of trip mechanism does the EHB14050 use?
It utilizes a fixed thermal magnetic trip unit, providing both long time thermal overload protection and instantaneous magnetic short circuit protection.
