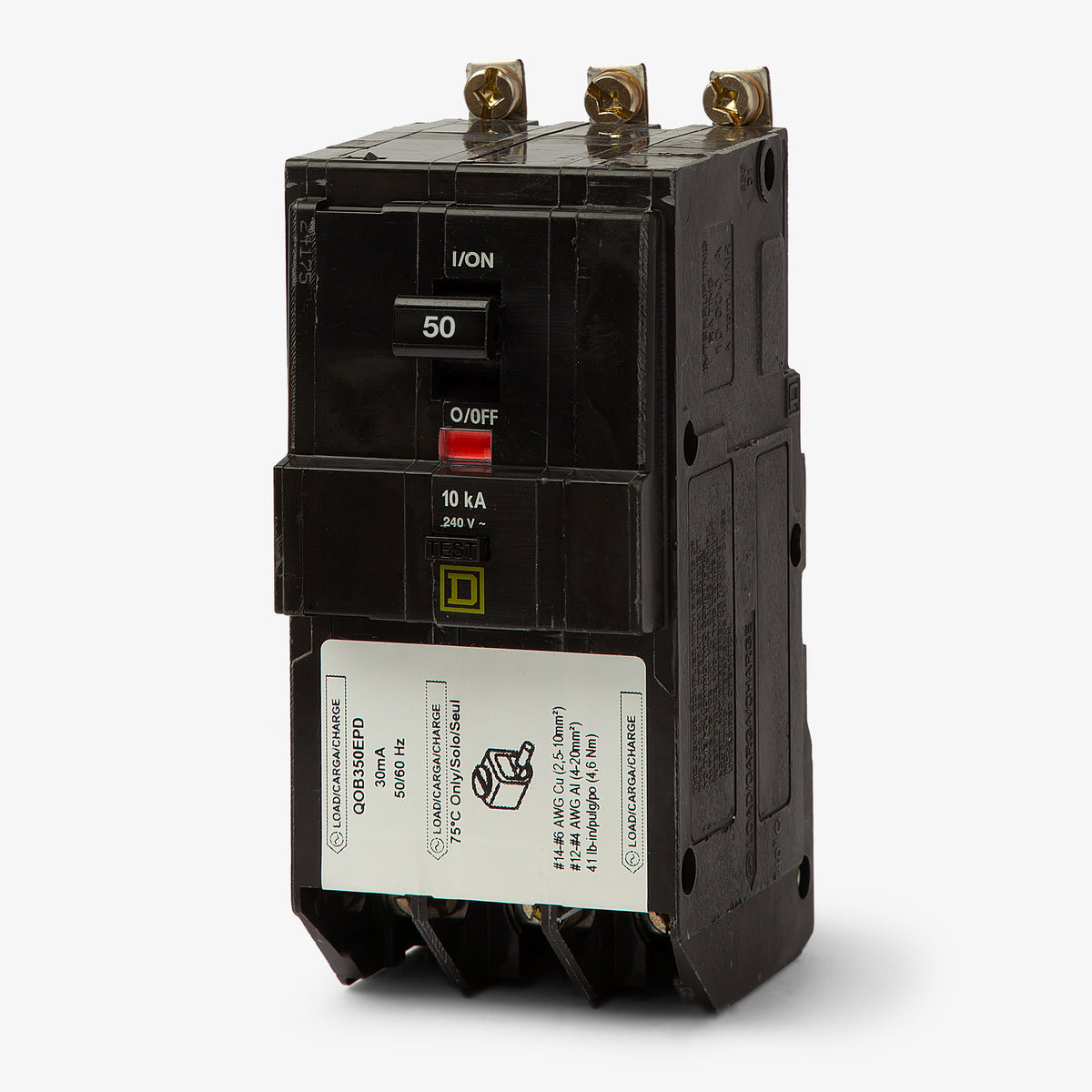

Square D QOB350EPD GFEP Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Square D
QOB350EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB350EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB350EPD - 50A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFEP Miniature Circuit Breaker
Schneider Electric / Square DQOB320EPD
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Providing robust 30mA ground fault detection, this 50A three-pole breaker is optimized for heavy-duty commercial equipment protection. It integrates seamlessly into Square D NQ and NQOD panelboards, utilizing a secure bolt-on mechanism that eliminates the risk of arcing from loose connections. The unit delivers a 10kAIC rating at 240VAC and includes the highly visible Visi-Trip indicator, allowing electricians to instantly spot tripped circuits without opening the panel deadfront.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB350EPD |
| Series | QOB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the QOB350EPD breaker?
This bolt-on circuit breaker is designed exclusively for use in Square D NQ and NQOD series commercial panelboards. It cannot be installed in standard QO residential load centers, which require plug-on breakers.
What is the difference between an EPD breaker and a standard GFCI breaker?
An EPD (Equipment Protection Device) breaker, like the QOB350EPD, features a 30mA ground fault trip threshold designed to protect machinery from damage. A standard GFCI (Class A) breaker has a highly sensitive 5mA threshold for personnel protection. The 30mA limit prevents nuisance tripping on equipment with natural electrical leakage, such as heat trace cables or large motors.
How does the QOB350EPD connect to the panel neutral?
This breaker utilizes a pigtail neutral connection. The attached coiled white wire must be terminated directly to the panelboard neutral bus to power the internal ground fault sensing electronics.
What does the LIG trip function on this breaker indicate?
LIG stands for Long-Time, Instantaneous, and Ground-Fault. This indicates the thermal-magnetic breaker provides delayed tripping for mild overloads, immediate tripping for severe short circuits, and specialized 30mA protection against leakage currents to ground.
Does the QOB350EPD feature a Visi-Trip indicator?
Yes. This breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or ground fault event, a highly visible red flag appears in the handle window, allowing electricians to quickly identify the tripped circuit.
Is there a plug-on version of this breaker available?
Yes. If you need this exact 50A, 3-pole, 30mA equipment protection breaker for a standard QO load center, you will need the plug-on version, catalog number QO350EPD.
