Square D EDB34060SA Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Square D
EDB34060SA
Molded Case Circuit Breaker
Brand
Square D
SKU
EDB34060SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

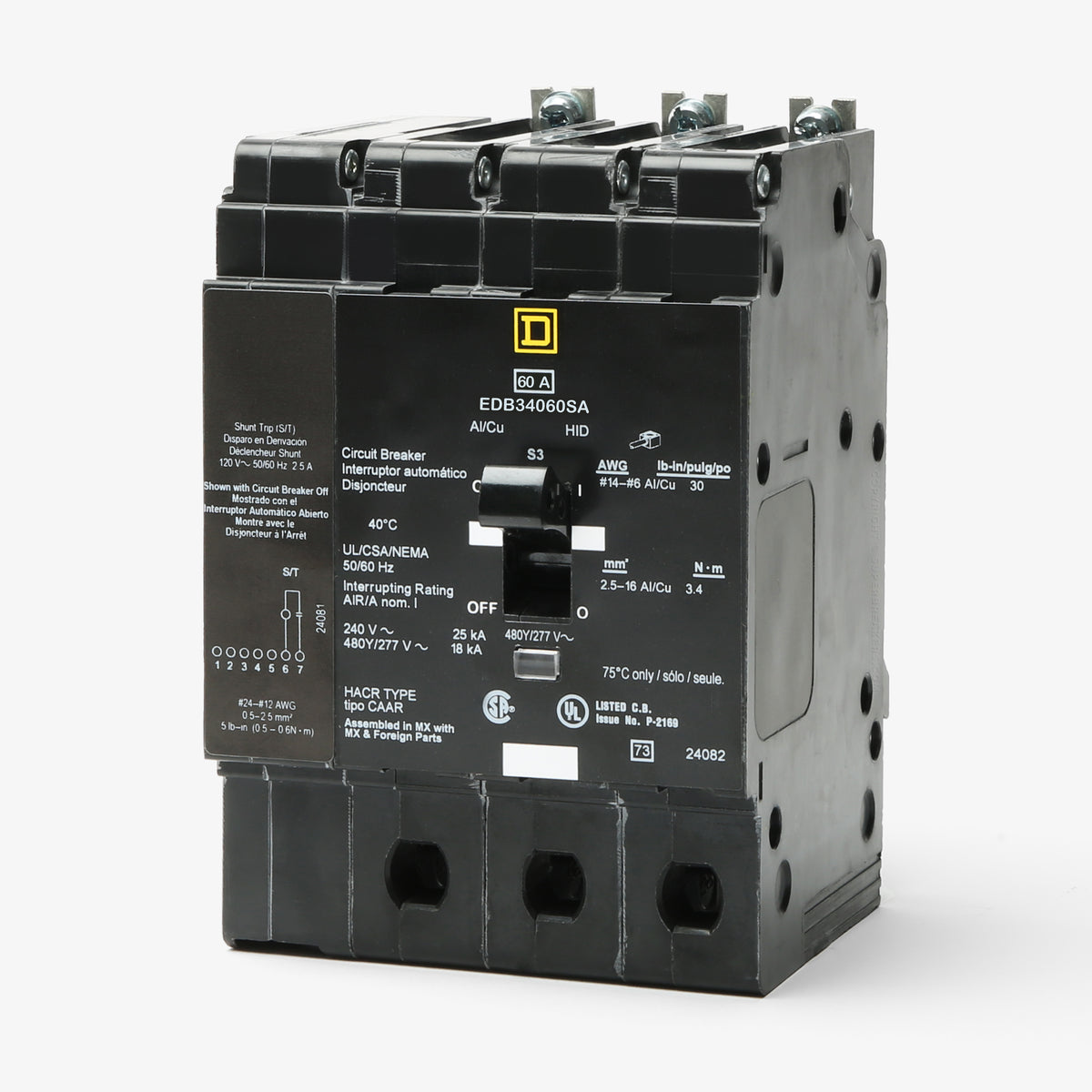

Square D EDB34060SA - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Part of the E-Frame series, this 3-pole, 60A molded case circuit breaker features a factory-installed 120VAC shunt trip for remote tripping capabilities. It mounts into Square D NF panelboards using a secure bolt-on connection, accepting up to 2/0 AWG wire. Rated for 18 kAIC at 480Y/277VAC, it utilizes fixed thermal-magnetic trip technology for reliable commercial protection. The breaker includes a Visi-Trip indicator to easily spot tripped circuits and is HACR rated for HVAC loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34060SA |
| Series | EDB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersDoes the EDB34060SA require extra panel space for the shunt trip?
Yes. The SA suffix indicates a factory-installed 120VAC shunt trip. This accessory requires one additional pole space, meaning this 3-pole breaker will occupy four total pole spaces in your Square D NF panelboard.
Which panelboards are compatible with the EDB34060SA circuit breaker?
This E-frame breaker is designed exclusively for use in Square D NF series panelboards. It features a bolt-on mounting connection and cannot be used in NQ or QO load centers.
Can I add or remove the shunt trip on the EDB34060SA in the field?
No. The 120VAC shunt trip (indicated by the SA suffix) is factory-installed. Schneider Electric does not offer field-installable shunt trips for E-frame miniature circuit breakers.
What is the control voltage for the shunt trip on this breaker?
The factory-installed shunt trip operates on a 120VAC control voltage (rated 110 to 130 VAC). Applying a different control voltage will fail to operate the trip mechanism and may damage the accessory coil.
Is the EDB34060SA fully rated for 480V systems?
No, it is rated for 480Y/277VAC solid-grounded Wye systems. It is not suitable for 480V Delta or ungrounded 480V systems, as the individual poles are only rated to interrupt 277V to ground.
Does this breaker include ground fault or equipment protection?
No. The EDB34060SA provides standard thermal-magnetic overcurrent and short-circuit protection. It does not include GFCI (Ground Fault Circuit Interrupter) or EPD (Equipment Protection Device) functionality.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
These E-frame breakers share the same physical dimensions and mount into the same Square D NF panelboards, but they have different short-circuit interrupting ratings. At 480Y/277VAC, the EDB series is rated for 18 kAIC, the EGB series for 35 kAIC, and the EJB series for 65 kAIC.
Can the EDB34060SA replace an older EHB series breaker?
Yes. The Square D EDB series is the direct, modern replacement for the obsolete EHB series. Both are E-frame, bolt-on breakers designed for NF panelboards. If your original 60A EHB breaker had a factory-installed 120VAC shunt trip, the EDB34060SA is the correct functional cross-reference.
