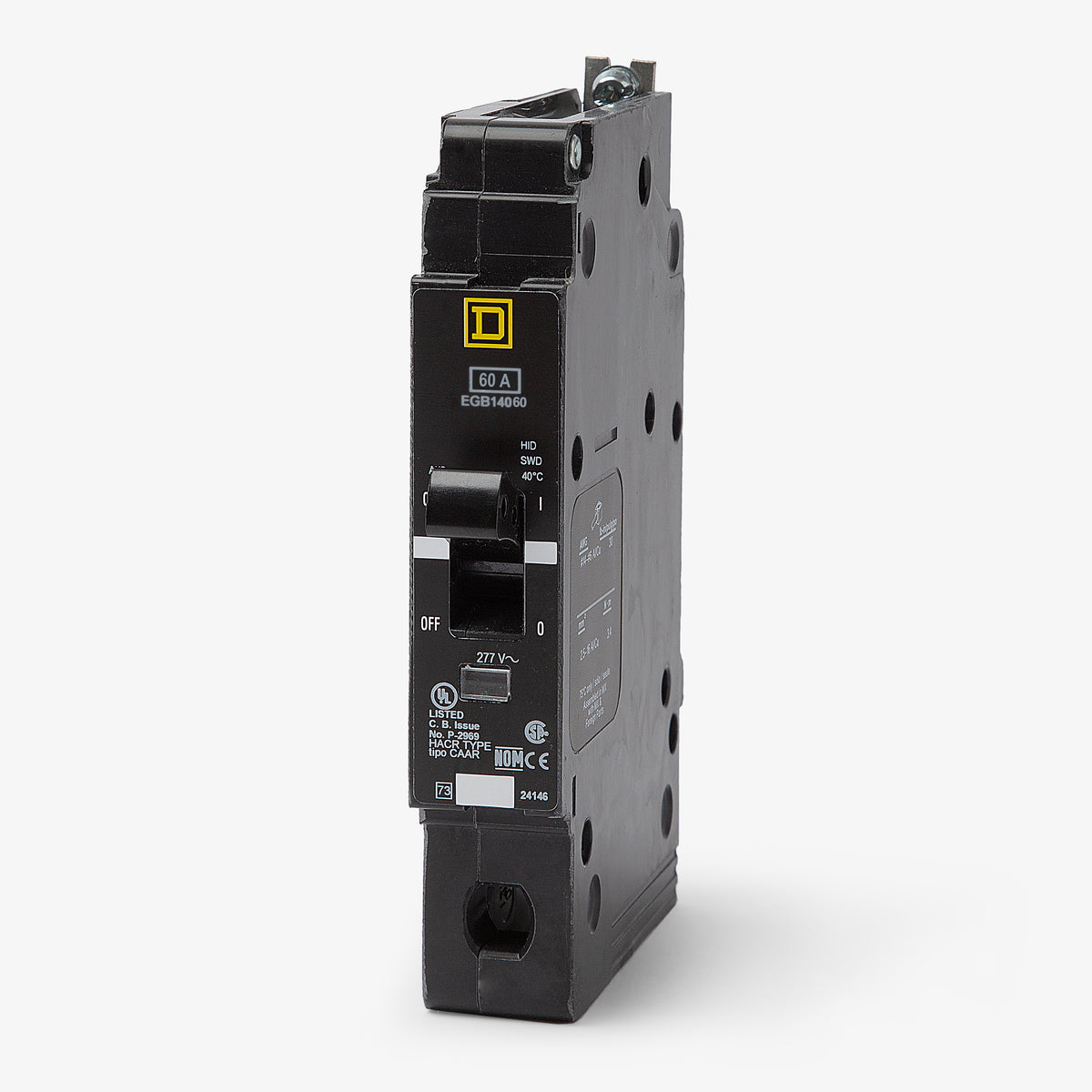

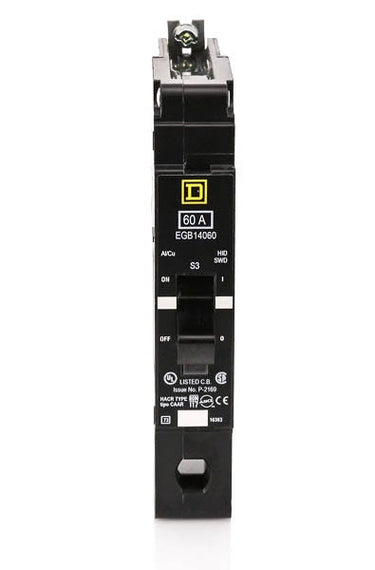

Square D EGB14060 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Square D
EGB14060
Molded Case Circuit Breaker
Brand
Square D
SKU
EGB14060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

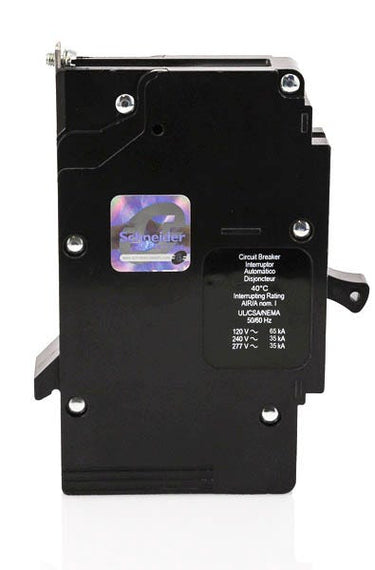

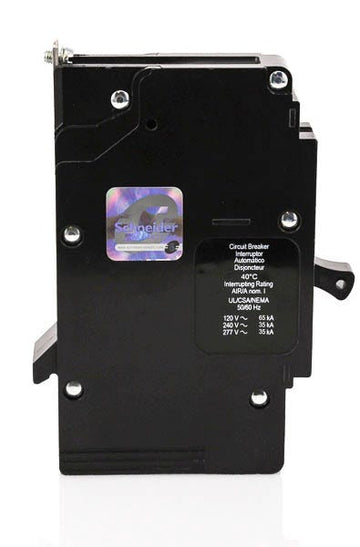

Square D EGB14060 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial environments, the Square D EGB14060 provides robust thermal-magnetic protection for branch circuits. This single-pole, 60-amp molded case circuit breaker is part of the proven E-Frame family, offering dependable performance for lighting and power distribution networks. It features a bolt-on mounting style designed specifically for use in Square D NF panelboards.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB14060 |
| Series | EGB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, NOM 117, RoHS, UL 489 |
| Approval | CSA, cULus, HACR, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the EGB14060?
This breaker is designed exclusively for bolt-on installation in Square D NF series panelboards. It is not compatible with NQ, QO, or I-Line panelboards.
What does the G in the EGB14060 part number indicate?
The G designates the interrupting rating tier within the Square D E-Frame family. The EGB series provides a 35kAIC rating at 277VAC, which is higher than the standard EDB series (18kAIC) but lower than the high-interrupting EJB series (65kAIC).
Can I substitute an EDB14060 for the EGB14060?
Both are 60A, 1-pole E-Frame breakers that fit NF panelboards, but the EDB14060 has a lower interrupting rating of 18kAIC at 277VAC. You can only substitute the EDB version if your system's available fault current is verified to be below 18kA. For higher fault currents, you must use the EGB14060 or the 65kAIC-rated EJB14060.

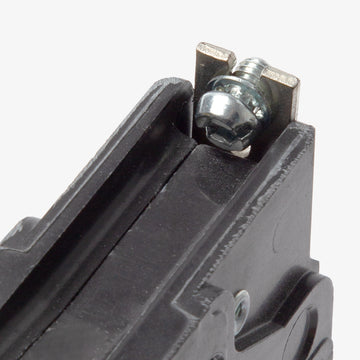

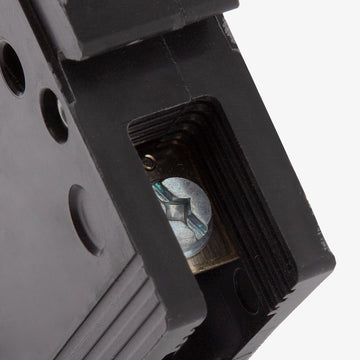

What wire sizes and materials are accepted by the EGB14060 terminals?
The factory-installed lugs accept 14 AWG to 2/0 AWG copper wire, or 12 AWG to 2/0 AWG aluminum wire.
Is the Square D EGB14060 HACR rated?
Yes, this breaker is HACR rated, making it suitable for branch circuit protection of heating, air conditioning, and refrigeration equipment.
Does the EGB14060 include a Visi-Trip indicator?
Yes, this E-Frame breaker features the Square D Visi-Trip visual indicator. When the breaker trips due to an overload or short circuit, a red indicator appears to help quickly identify the tripped circuit in the panelboard.
Can the EGB14060 be used on a 120V circuit?
Yes. While it is rated for up to 277VAC, it is fully compatible with 120VAC circuits. When applied at 120VAC, the interrupting rating increases to 65kAIC.
