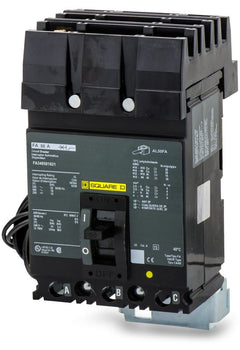

Square D FA340901037 Molded Case Circuit Breaker
- 90A
- 3 Pole
- I-Line
Square D
FA340901037
Molded Case Circuit Breaker
Brand
Square D
SKU
FA340901037
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA340901037 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D FA340901037 is a 3-pole, 90A molded case circuit breaker from the legacy F-Frame series. It provides reliable thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This unit installs into Square D I-Line panelboards and switchboards. As a legacy component, it is commonly replaced by the HDA36090 equipped with an S29388 shunt trip. Rated 18kAIC at 480VAC, it includes a factory-installed 277-480VAC shunt trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA340901037 |
| Series | FA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the FA340901037?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes an I-Line style plug-in connection for secure phase mounting directly to the bus.
What does the 1037 suffix indicate on this FA-frame breaker?
The 1037 suffix means the breaker is equipped with a factory-installed 380-480 VAC shunt trip. This accessory allows the breaker to be tripped remotely by an external control signal.
Is the FA340901037 a current model or a legacy breaker?
The FA-frame is a legacy series. For modern panel upgrades, it is typically replaced by Square D PowerPact B-Frame or H-Frame circuit breakers, such as the BDA34090, configured with a matching shunt trip accessory.
What wire sizes are accepted by the terminals on this 90A breaker?
The standard lugs accommodate 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire.
How does the integrated shunt trip improve system safety?
The 480V shunt trip allows personnel or automated systems to remotely open the circuit breaker during emergencies. This is commonly used for fire alarm integration, emergency stops, or equipment shutdown protocols.
Can the trip settings on the FA340901037 be adjusted in the field?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short circuit) trip functions are factory set and cannot be modified.
Does the FA340901037 require a separate mounting hardware kit?
No, the I-Line plug-in design features integrated jaws that connect directly to the panelboard bus assembly. This eliminates the need for separate mounting hardware or cable connections on the line side.
