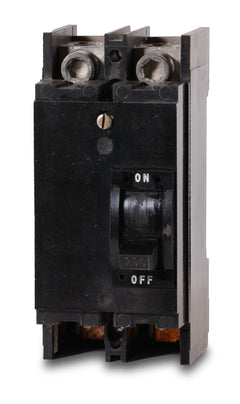

Square D Q2M2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Square D
Q2M2200
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2M2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2M2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker

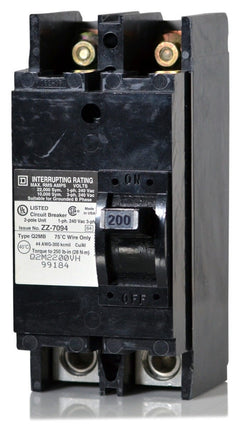

200A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Engineered for residential and commercial distribution, the Square D Q2M2200 is a 200A, 2-pole molded case circuit breaker. It features a fixed thermal-magnetic trip mechanism and includes a Visi-Trip indicator to easily spot tripped circuits in busy electrical rooms. This Q-Frame breaker mounts into Square D QO load centers and NQO panelboards using a standard bolt-on connection. For modernizing older systems, note that this legacy component is officially replaced by the QBP22200TM.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2M2200 |
| Series | Q2M |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2M |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO Load Centers, NQO Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Main Breaker |
Product FAQs
5 answersWhat panels are compatible with the Q2M2200 circuit breaker?
The Q2M2200 is designed for use as a main breaker in legacy Square D QO load centers and NQO panelboards that accept Q-Frame breakers.
Is the Q2M2200 still manufactured, or is there a direct replacement?
The Q2M2200 is a legacy component. For modernizing older systems, Schneider Electric officially recommends the PowerPacT QBP22200TM as a direct substitute.
How does the Q2M2200 mount into the panel?
This breaker features a bolt-on, bottom-mounting design. It secures directly to the panel bus using bolted connections rather than snapping into place, ensuring a secure connection for high-amperage main service.
What does the "M" in the Q2M2200 part number indicate?
The "M" designates this as a main breaker, built specifically to serve as the primary disconnect for the entire load center or panelboard.
Can I use the Q2M2200 in a Homeline panel?
No. The Q2M2200 is specifically engineered for Square D QO load centers and NQO panelboards. It is not compatible with Homeline load centers, which require different breaker profiles.
