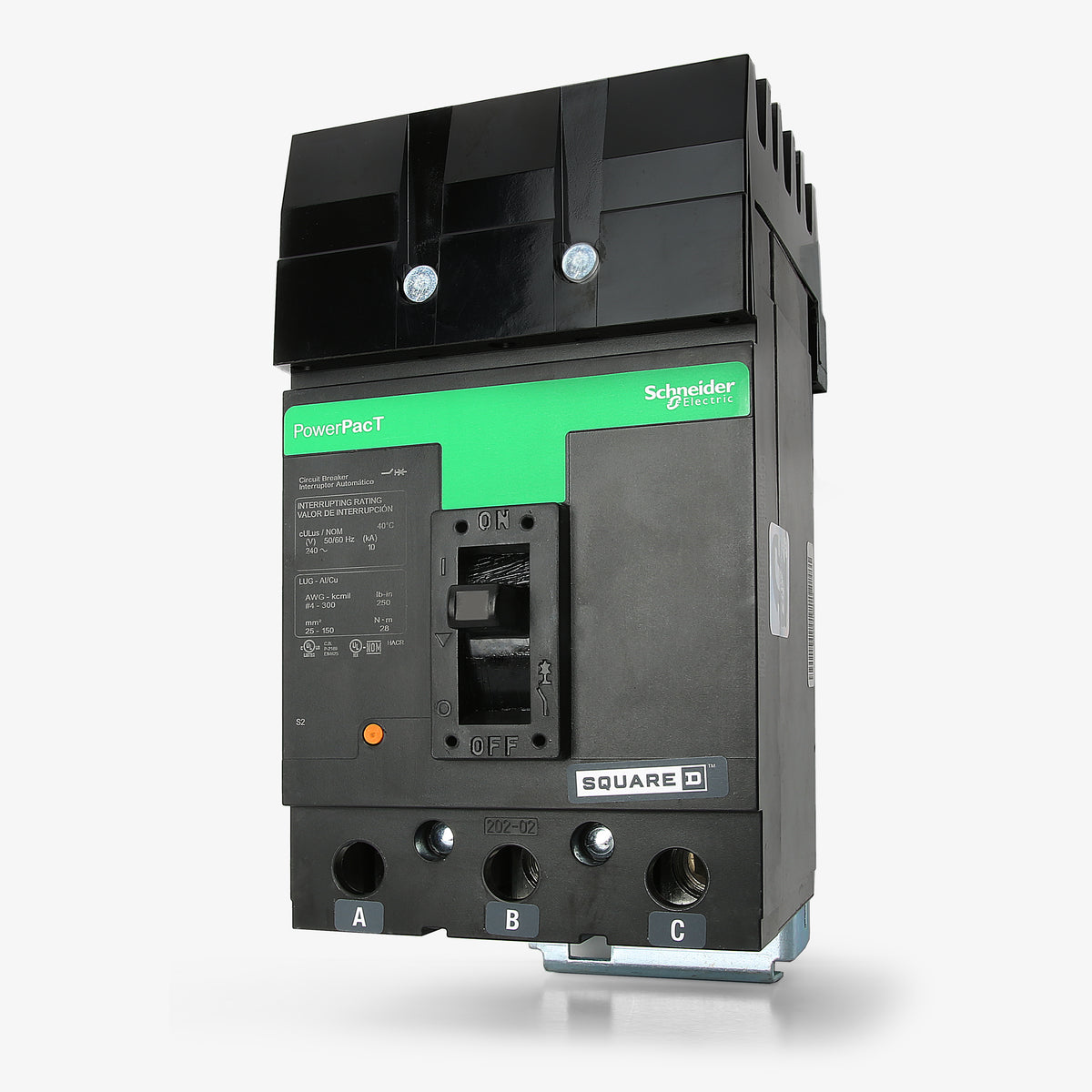

Square D QBA32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
QBA32200
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA32200 |
| Series | QBA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QBA32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA32200-R |
| Series | QBA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Operating as a robust 200A main or feeder device, this three-pole PowerPacT breaker safeguards commercial and industrial power distribution networks. It plugs into Square D I-Line panelboards and switchboards, providing a seamless upgrade path for older Q23200 installations. The ABC phase connection simplifies the mounting process. This HACR-rated unit provides 10kAIC at 240VAC, utilizing fixed long-time and instantaneous trip settings alongside a highly visible Visi-Trip flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA32200 |
| Series | QBA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
9 answersWhat type of panelboard accepts the QBA32200 circuit breaker?
The QBA32200 is engineered specifically for Square D I-Line panelboards and switchboards. It uses a plug-on line connection that seats directly onto the I-Line bus structure.
Can the PowerPacT QBA32200 replace older Square D breakers?
Yes. The PowerPacT Q-frame line is designed as a direct physical and functional replacement for legacy Square D Q2 series molded case circuit breakers.
How do the line and load terminations differ on this device?

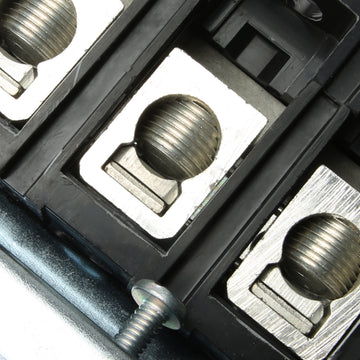

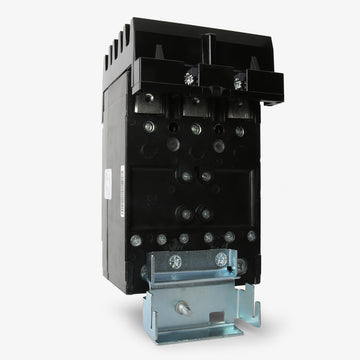

The line side features specialized I-Line plug-in jaws that attach directly to the panelboard bus, eliminating the need for line-side wiring. The load side utilizes standard mechanical lugs for cable termination.
What do the letters in the QBA catalog prefix signify?
In the PowerPacT nomenclature, Q identifies the frame family, B indicates the standard interrupting rating of 10 kAIC at 240VAC, and A specifies an I-Line plug-in mounting style.
Is the QBA32200 compatible with Square D QO or NQ series panels?
No. This breaker requires an I-Line bus configuration. It will not physically fit or function in QO load centers, NQ panelboards, or Homeline enclosures.
How can an electrician verify the mechanical trip operation before commissioning?
The device includes a built-in push-to-trip button on the front cover. Pressing this button manually actuates the trip mechanism to ensure the internal mechanical linkages are functioning properly.
What phase connection does this 3-pole breaker utilize?
The QBA32200 is configured for an ABC phase connection, matching the standard three-phase bus layout found in I-Line distribution equipment.
Does the QBA32200 include adjustable trip settings?
No. This specific model features a standard thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip thresholds.
Can the QBA32200 be installed in a 480V system?
No. The QBA32200 is strictly rated for applications up to 240VAC. Installing it in a 480V system violates its UL listing and creates a severe safety hazard.
