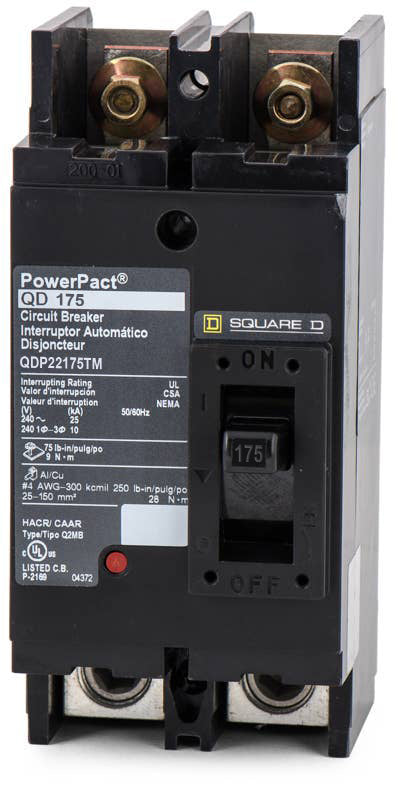

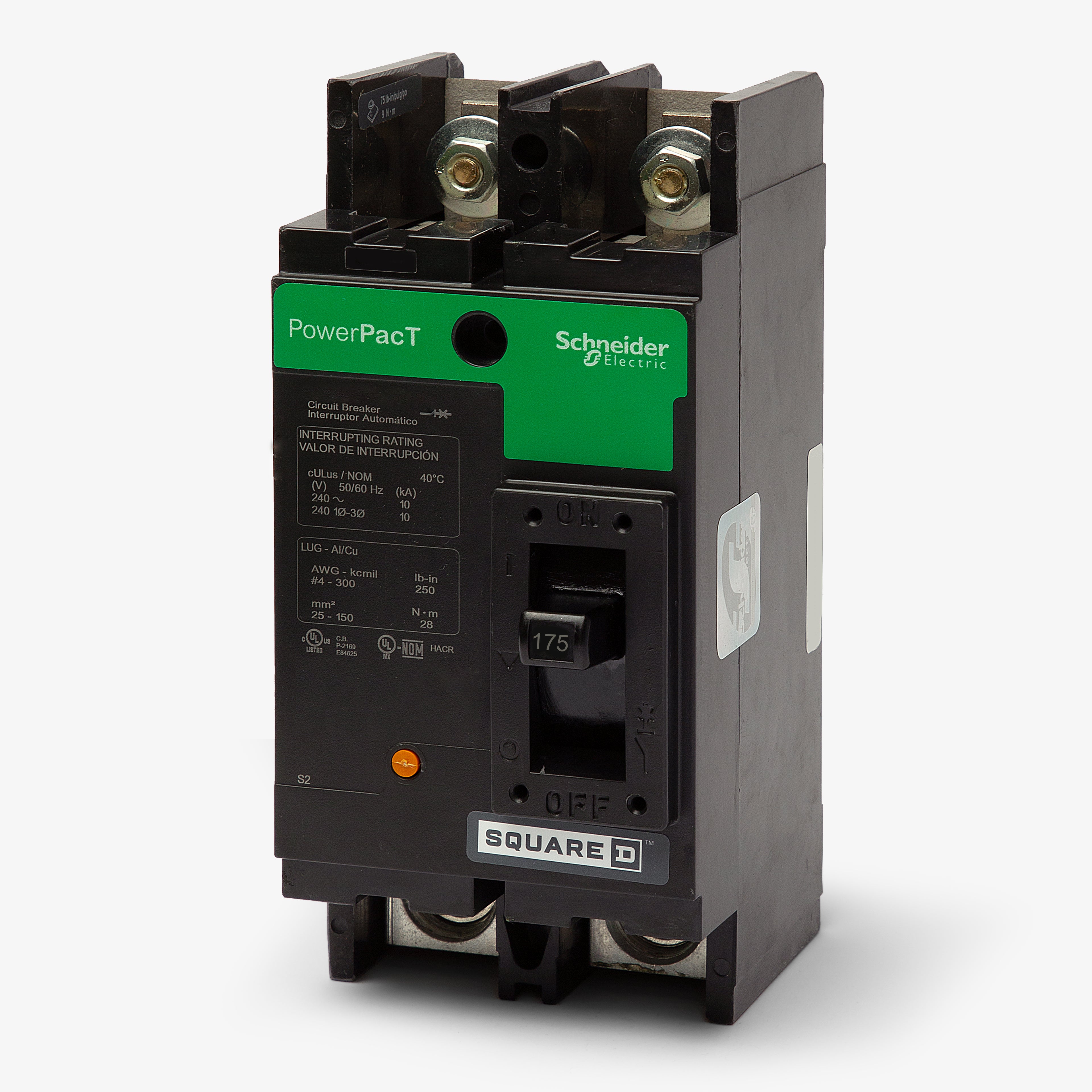

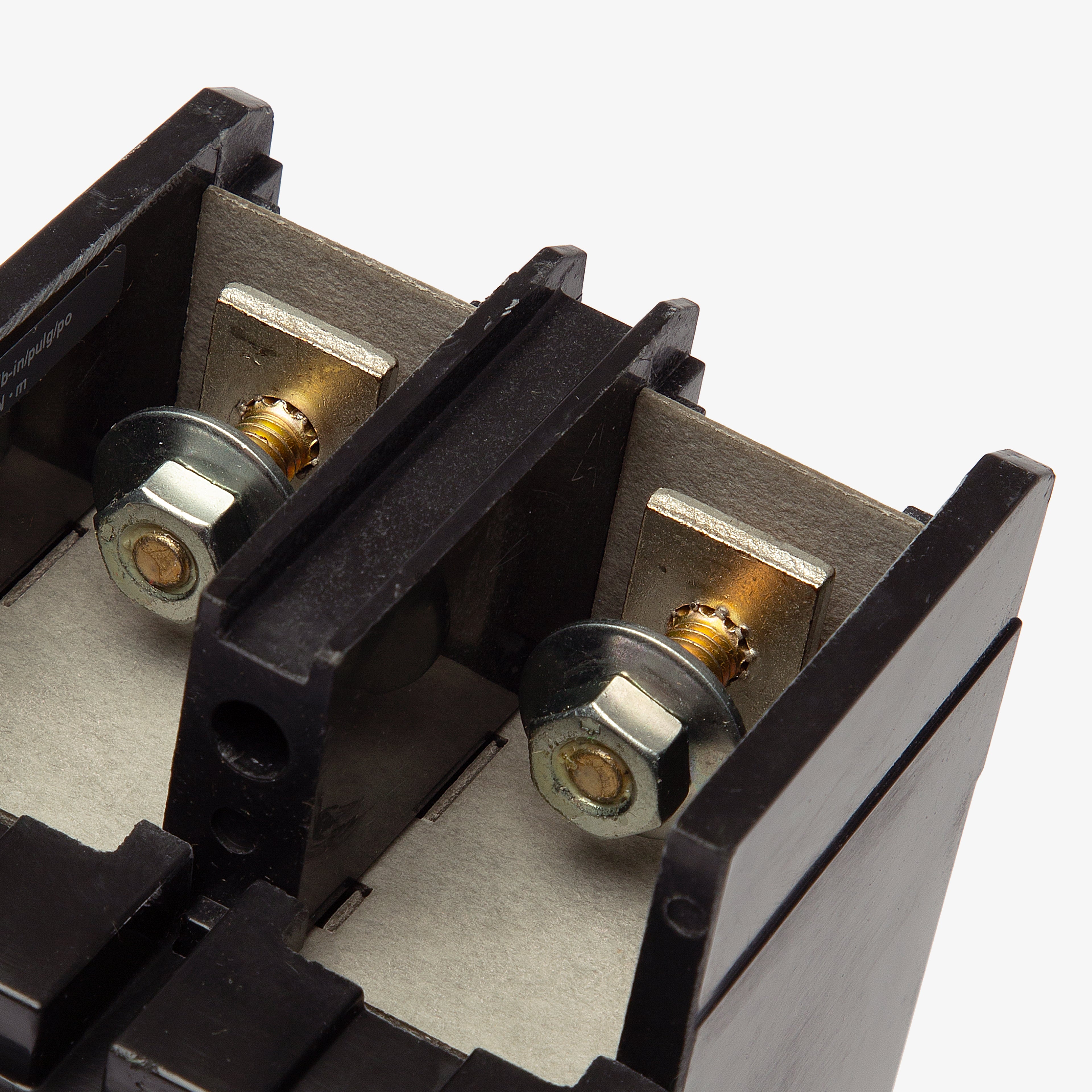

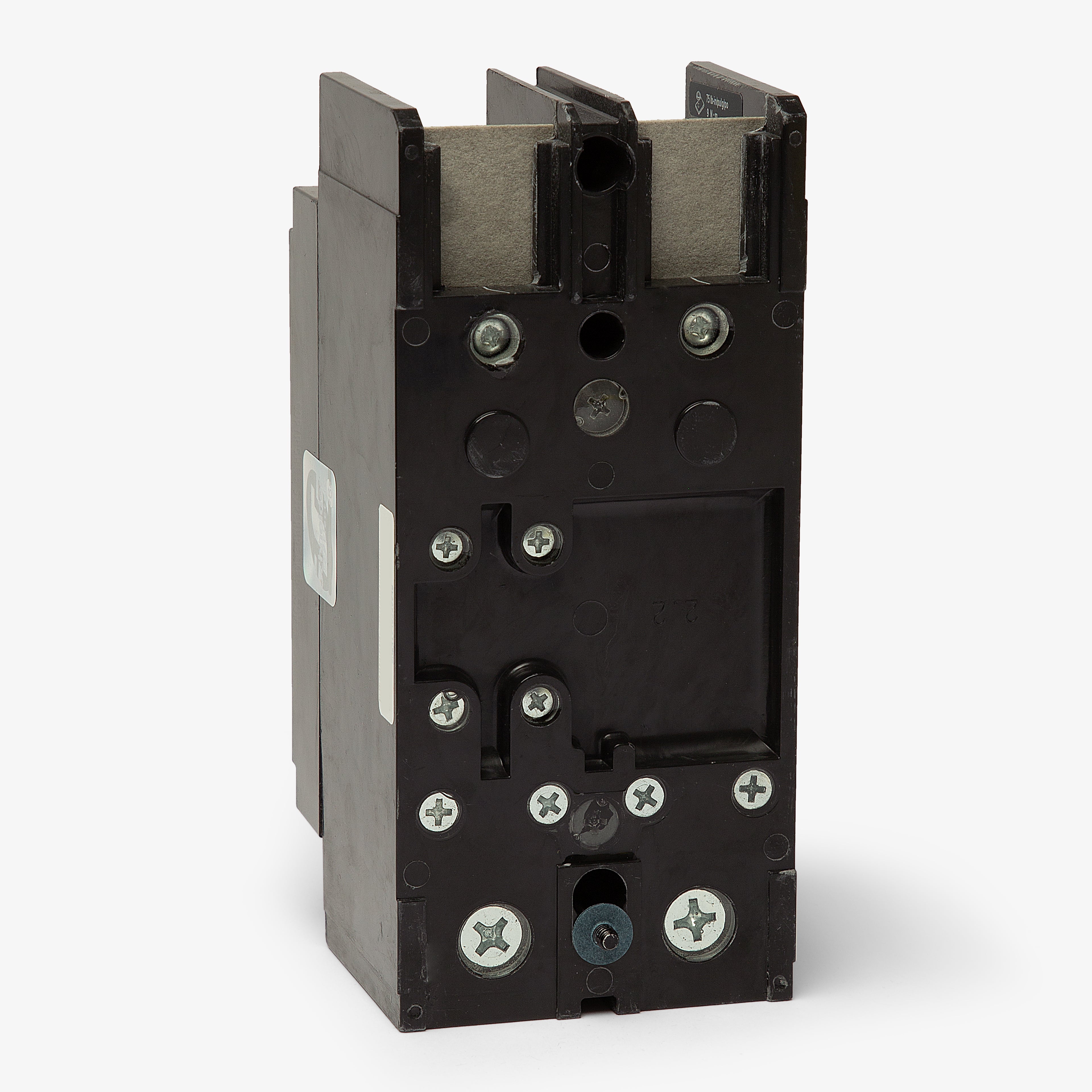

Square D QDP22175TM Molded Case Circuit Breaker
- 175A
- 2 Pole
- Bolt-On
Square D
QDP22175TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP22175TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDP22175TM - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDP22175TM - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDP22175TM |
| Series | QDP |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Studs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QDP22175TM - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Studs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
225A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Part of Square D's PowerPacT Q-Frame lineup, the QDP22175TM provides robust thermal-magnetic overcurrent protection. This 175-amp, two-pole breaker features a Visi-Trip indicator for quick fault identification. Designed for unit-mount installations, this bolt-on MCCB installs into EZ and MP Meter-Pak metering centers. It serves as an exact drop-in replacement for legacy Q22175 breakers. Rated for 25 kAIC at 240VAC, it includes line-side studs and load-side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDP22175TM |
| Series | QDP |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Studs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat metering equipment is compatible with the QDP22175TM circuit breaker?
This PowerPacT Q-Frame breaker is specifically designed for installation in Square D EZ Meter-Pak and MP Meter-Pak metering centers.
What is the terminal configuration on the QDP22175TM?
The breaker is equipped with a stud, nut, and washer on the line side (ON end) and mechanical lugs on the load side (OFF end).
What are the wire size and torque requirements for the load-side lugs?
The load lugs accept 4 AWG to 300 kcmil copper or aluminum wire. The required tightening torque is 248 lb-in (28 N.m).
What are the magnetic trip thresholds for this 175A breaker?
The fixed thermal-magnetic trip unit has a magnetic hold current of 1200A and a magnetic tripping current of 2400A.
Does the QDP22175TM carry a 100% continuous current rating?
No, this breaker is standard rated for 80% continuous current.
Can the QDP22175TM replace legacy Square D breakers in existing meter centers?
Yes, this PowerPacT Q-Frame breaker serves as an exact drop-in replacement for legacy Square D Q22175 175A circuit breakers.
