Square D QGP32100TM Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
QGP32100TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP32100TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

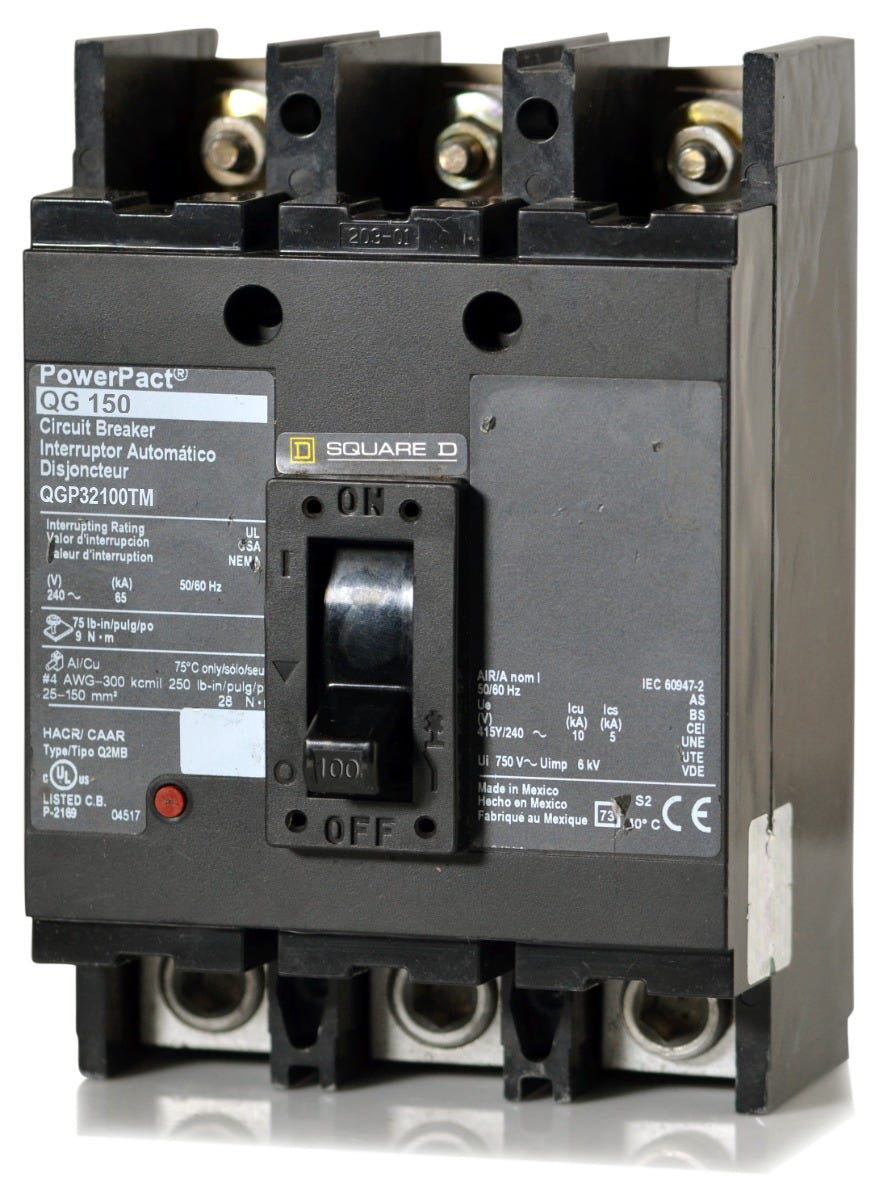

Square D QGP32100TM - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Rated for 100A, this three-pole MCCB belongs to the Square D PowerPacT Q-Frame lineup. It offers dependable thermal-magnetic protection for commercial environments. This unit-mount breaker is built to fit Square D EZ Meter-Pak metering centers. It provides a secure connection using standard stud and tapped pad terminals. Featuring a 65 kAIC interrupting rating at 240VAC, it safely clears severe faults. The unit is HACR rated and equipped with a Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP32100TM |
| Series | QGP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Terminal Nuts |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat equipment is the QGP32100TM designed to be installed in?
This PowerPacT Q-frame breaker is specifically designed for use in Square D Meter-Pak Metering Centers. It is a unit mount breaker and will not fit in standard QO or Homeline load centers.
Does the QGP32100TM come with standard mechanical lugs?
No, this specific catalog number features stud or tapped pad terminals. You will need to verify if your specific Meter-Pak application requires separate lug kits or if it bolts directly to the bus assembly.
What does the G in the QGP prefix indicate for this breaker?
In the Square D PowerPacT Q-frame nomenclature, the G designates the interrupting rating tier. A QG breaker provides a 65kAIC rating at 240V AC. Other tiers in this frame size include QB (10kAIC), QD (25kAIC), and QJ (100kAIC).
Can I adjust the trip settings on the QGP32100TM?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Neither the long-time nor the instantaneous trip functions are field adjustable.
Can I substitute a QDP32100TM or QJP32100TM for this breaker?
Yes, the QDP and QJP models share the same physical dimensions and mounting footprint. You can use a higher rated QJP if your system requires a 100kAIC rating, or a QDP if your system fault current is below 25kAIC. Always verify the required short circuit current rating of your specific installation.
