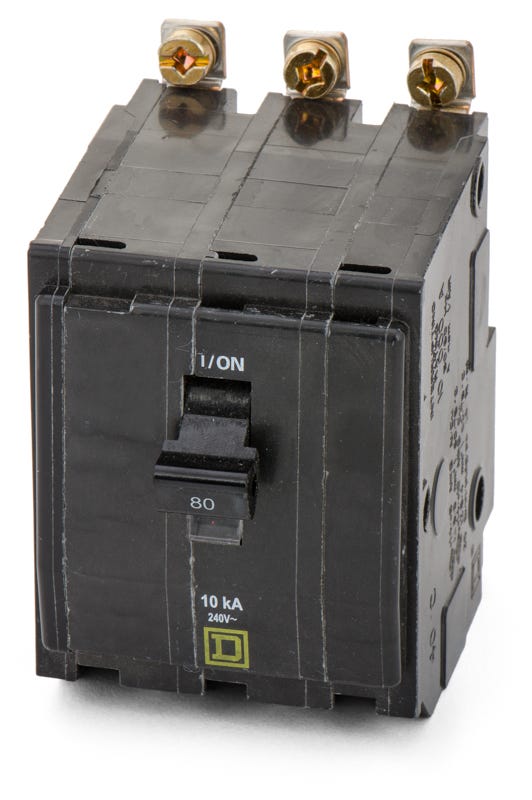

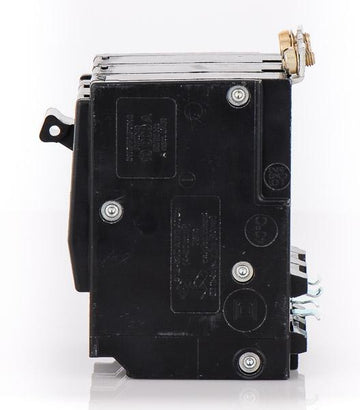

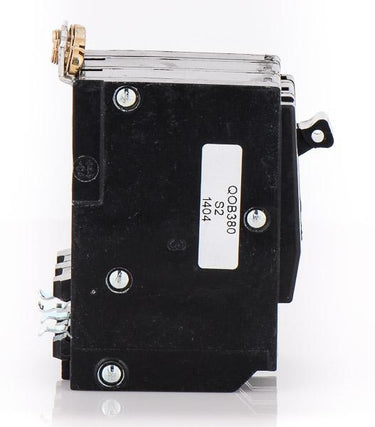

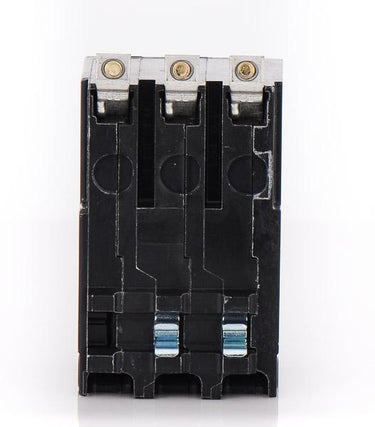

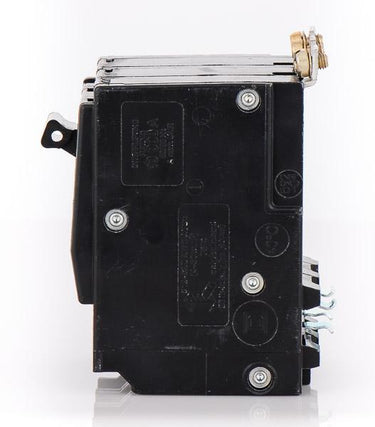

Square D QOB380 Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Square D
QOB380
Miniature Circuit Breaker
Brand
Square D
SKU
QOB380
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB380 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Square D QOB380 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB380 |
| Series | QOB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOB380 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB380-R |
| Series | QOB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
80A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
Description
The QOB380 is part of Square D's QO family, delivering 80 amps of thermal-magnetic protection. Built for commercial environments, this three-pole unit provides reliable overcurrent defense for 120/240VAC systems. Designed with a bolt-on mounting style, it installs securely into NQ and NQOD panelboards. The breaker occupies three pole spaces and accepts 4 to 2/0 AWG wiring. Rated at 10 kAIC, it includes the signature Visi-Trip indicator to display a highly visible red flag when tripped.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB380-R |
| Series | QOB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersCan I install the QOB380 in a standard QO load center?
No. The QOB380 is a bolt-on circuit breaker designed exclusively for Square D NQ and NQOD panelboards. It cannot be installed in standard residential QO load centers, which require plug-on QO breakers.
How much panel space does the QOB380 require?
This 3-pole breaker occupies three standard spaces in an NQ or NQOD panelboard. Each pole is 3/4 inch wide, requiring a total panel width of 2.25 inches.
Is the QOB380 rated for DC applications?
Yes. In addition to its standard 120/240VAC rating, the QOB380 is rated for use on 48VDC systems with a 5kA interrupting capacity.
Does the QOB380 feature a visual trip indicator?
Yes. This breaker includes Square D's Visi-Trip indicator. When tripped, the handle moves to a center position and a high-visibility red flag appears in the indicator window to help you quickly identify the faulted circuit.
Do I need special lugs to terminate aluminum wire on the QOB380?
No. The standard factory-installed box lugs on the QOB380 are dual-rated for both aluminum and copper (Al/Cu) conductors. They accept wire sizes ranging from 4 AWG to 2/0 AWG.
Can I add a field-installable shunt trip to the QOB380?
No. Square D QO and QOB circuit breakers do not support field-installable internal accessories. Shunt trips, auxiliary switches, and alarm switches must be factory-installed and are identified by a specific catalog suffix (such as -1021).
Is the QOB380 suitable for HVAC equipment?
Yes. The QOB380 is HACR rated, making it fully approved for use with compatible heating, air conditioning, and refrigeration equipment that require this specific listing for overcurrent protection.
Will a fault on one phase trip the entire breaker?
Yes. The QOB380 features a common-trip mechanism. A thermal overload or short circuit on any single pole will force all three poles to open simultaneously, safely disconnecting the entire 3-phase load.
