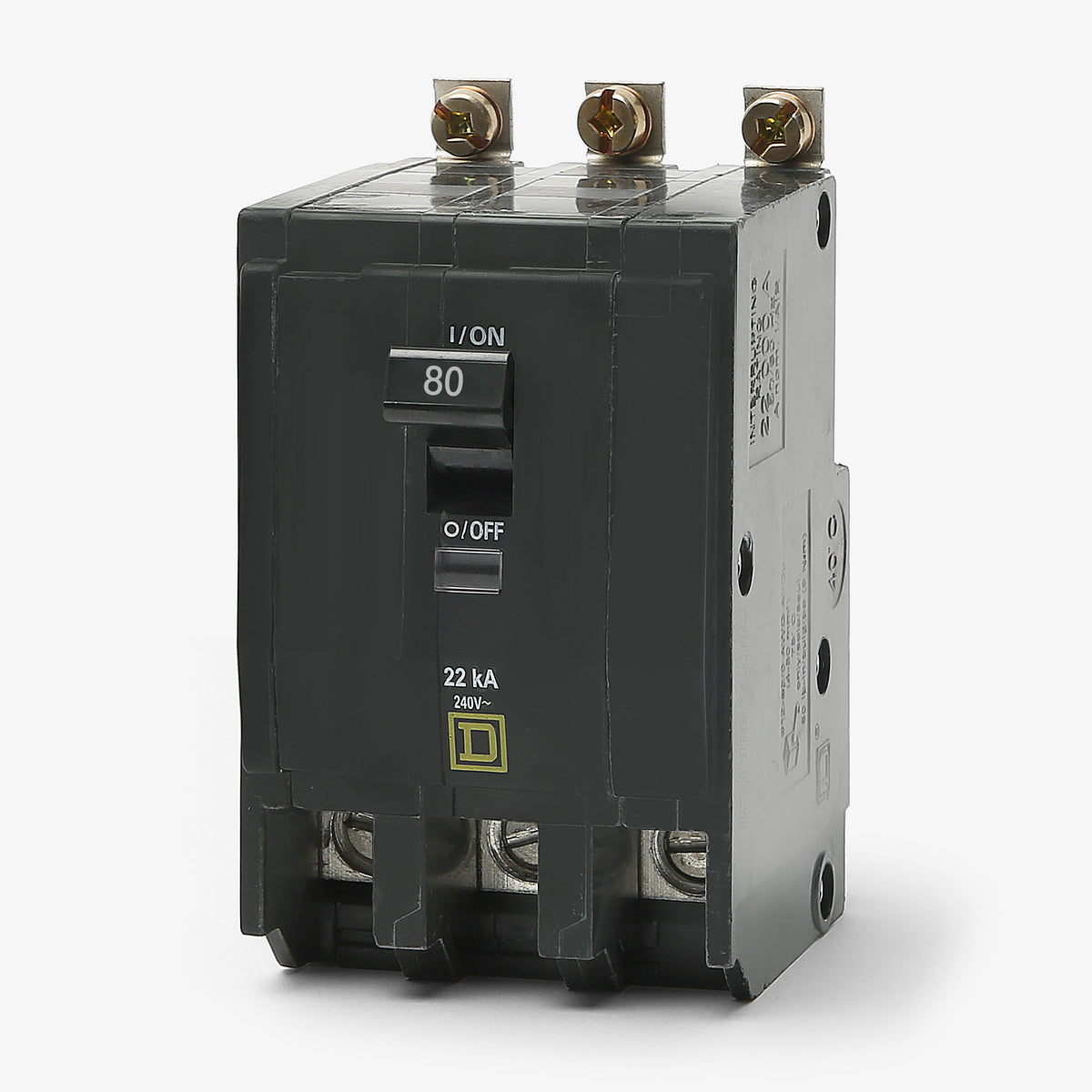

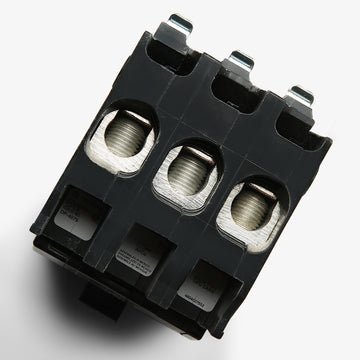

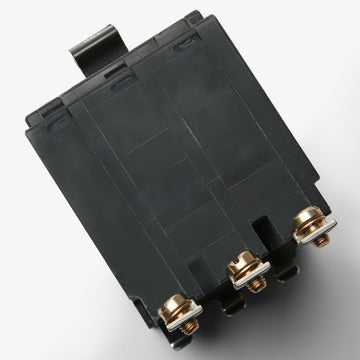

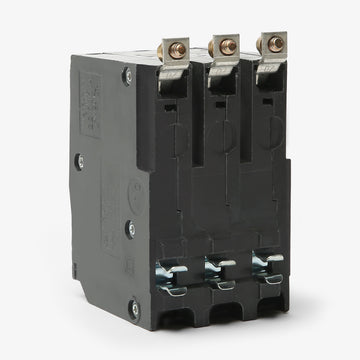

Square D QOB380VH Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Square D
QOB380VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB380VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB380VH - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB380VH - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB380VH-R |
| Series | QOB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, High Interrupting Capacity |
Sold out
Quantity
Square D QOB380VH - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB380VH-R |
| Series | QOB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, High Interrupting Capacity |
Similar Items
70A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Built to handle elevated fault currents, the QOB380VH provides 22kAIC interrupting capacity for commercial and industrial electrical systems. This 80-amp, three-pole miniature circuit breaker installs into Square D NQ and NQOD panelboards via a sturdy bolt-on connection. The thermal-magnetic trip unit ensures reliable overcurrent and short-circuit protection. It features a Visi-Trip red indicator flag for quick identification of tripped circuits and accepts up to 2/0 AWG wire.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB380VH-R |
| Series | QOB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the QOB380VH?
This bolt-on circuit breaker is designed for use in Square D NQ and NQOD panelboards. It will not fit standard QO load centers, which require plug-on breakers.
What does the VH suffix indicate in the QOB380VH catalog number?
The VH designates a higher interrupting rating of 22kA at 120/240VAC. Standard QOB breakers without the VH suffix have a 10kA interrupting rating.
How many panel spaces does the QOB380VH require?
This 3-pole breaker requires three standard 3/4-inch spaces, taking up a total of 2.25 inches of space in the panelboard.
What is the recommended torque specification for the box lugs on this breaker?
The wire binding screws on the QOB380VH should be torqued to 50 lb-in (5.6 N-m) for both copper and aluminum wire.
Can the QOB380VH be used in a 480V or 277V system?
No, this breaker is rated for a maximum of 240VAC. It is not suitable for 480V or 277V applications.
Does this breaker provide GFCI or equipment protection?
No, the QOB380VH is a standard thermal-magnetic breaker providing long-time and instantaneous trip functions. It does not include ground fault or equipment protection features.
