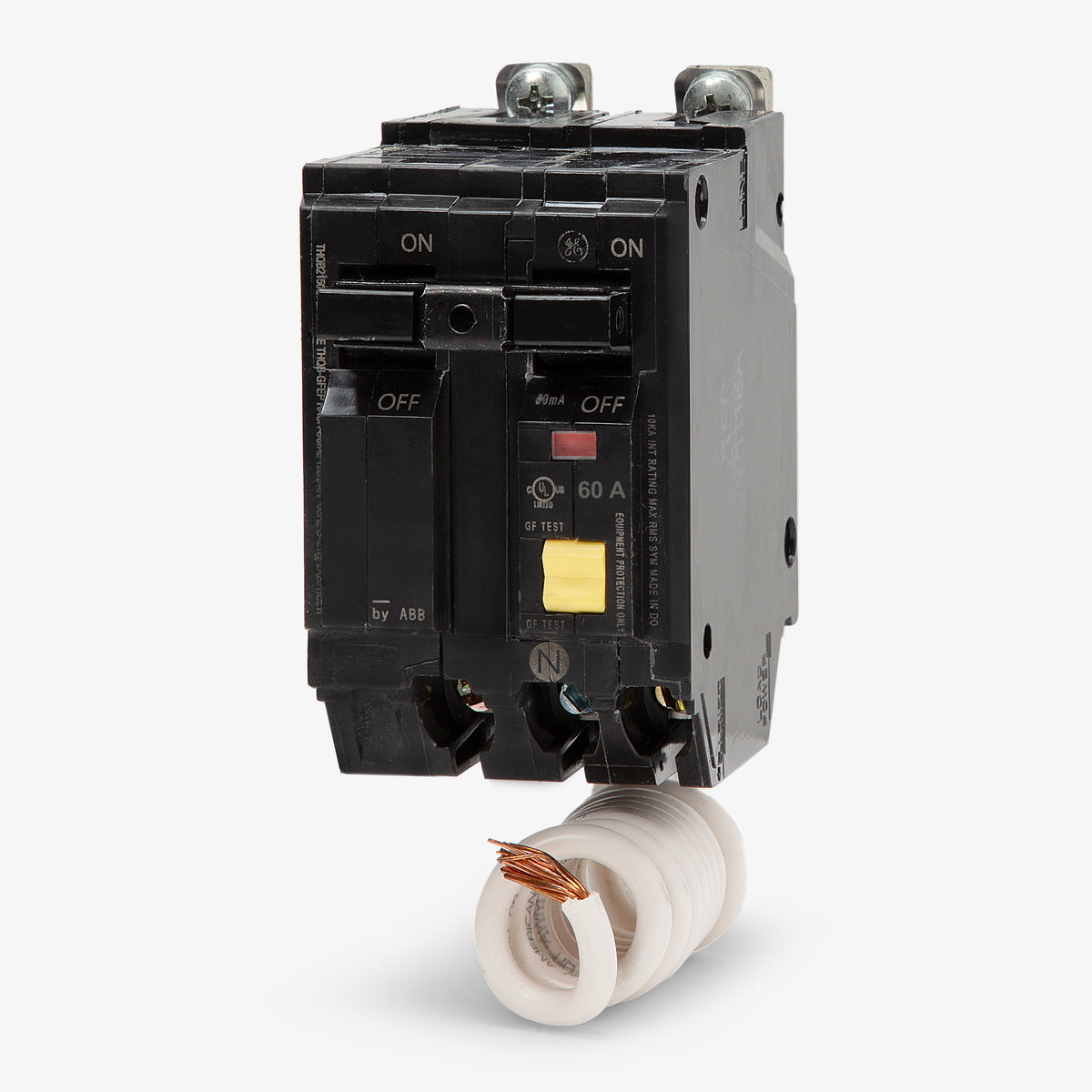

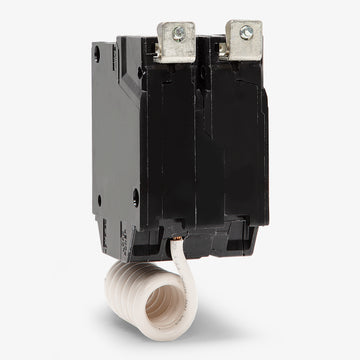

ABB THQB2160GFEP2 GFEP Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
ABB
THQB2160GFEP2
GFEP Miniature Circuit Breaker
Brand
ABB
SKU
THQB2160GFEP2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB THQB2160GFEP2 - 60A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2140GFEP2
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2140GFEP
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2130GFEP
30A GFEP Miniature Circuit Breaker
Description
Engineered for commercial applications, the ABB THQB2160GFEP2 delivers 30mA ground fault equipment protection. This 2-pole, 60A breaker prevents damage to machinery by detecting low-level ground faults. The bolt-on unit mounts into ABB and legacy GE AQ lighting panels, plus ReliaGear panelboards. It serves as an exact replacement for the discontinued THQB2160GFEP. Rated 10kAIC at 120/240V, this Q-Line breaker features fixed thermal-magnetic trip and self-test functionality.Specifications
| Brand | ABB |
|---|---|
| Series | THQB |
| Amperage | 60A |
| Poles | 2 |

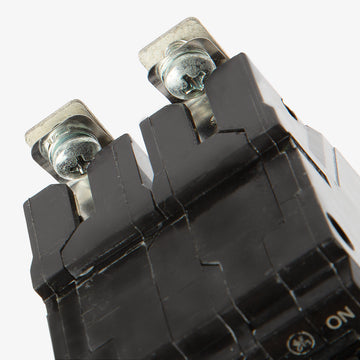

| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | ABB/GE AQ Lighting Panels, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 1053 |
| Approval | cULus, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards are compatible with the THQB2160GFEP2 circuit breaker?
This bolt-on breaker is designed for use in ABB and legacy GE AQ lighting panels, as well as ReliaGear panelboards.
What is the ground fault trip sensitivity for the THQB2160GFEP2?
This breaker provides Ground Fault Equipment Protection (GFEP) with a 30mA trip sensitivity. It is designed to protect machinery and equipment from low-level ground faults, rather than providing the 5mA personnel protection found in standard GFCI breakers.

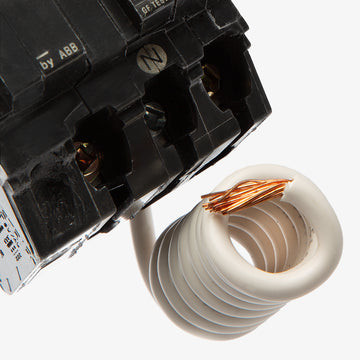

Does the THQB2160GFEP2 require a pigtail connection?
Yes, this breaker features a pigtail neutral wire that must be connected to the panel neutral bus bar for the ground fault protection circuitry to function properly.
Can I use the ABB THQB2160GFEP2 to replace an older GE THQB2160GFEP?
Yes. ABB acquired GE Industrial Solutions, and the THQB2160GFEP2 is the direct, updated replacement for the legacy GE THQB2160GFEP. The suffix indicates the newer version, which includes updated self-test functionality required by UL standards.
What wire sizes are accepted by the box lugs on the THQB2160GFEP2?
The terminal lugs accept 8 AWG to 3 AWG copper or aluminum wiring. Ensure proper torque specifications are followed during installation.
Does this 2-pole breaker have an internal common trip?
Yes, it features an internal common trip mechanism that ensures both poles disconnect simultaneously in the event of an overload, short circuit, or ground fault. This prevents single-phasing of connected 240V equipment.
