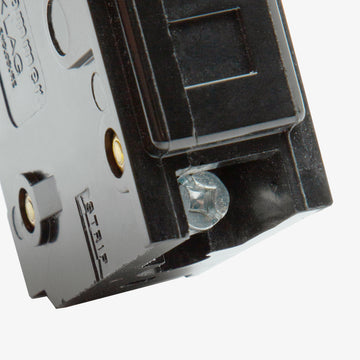

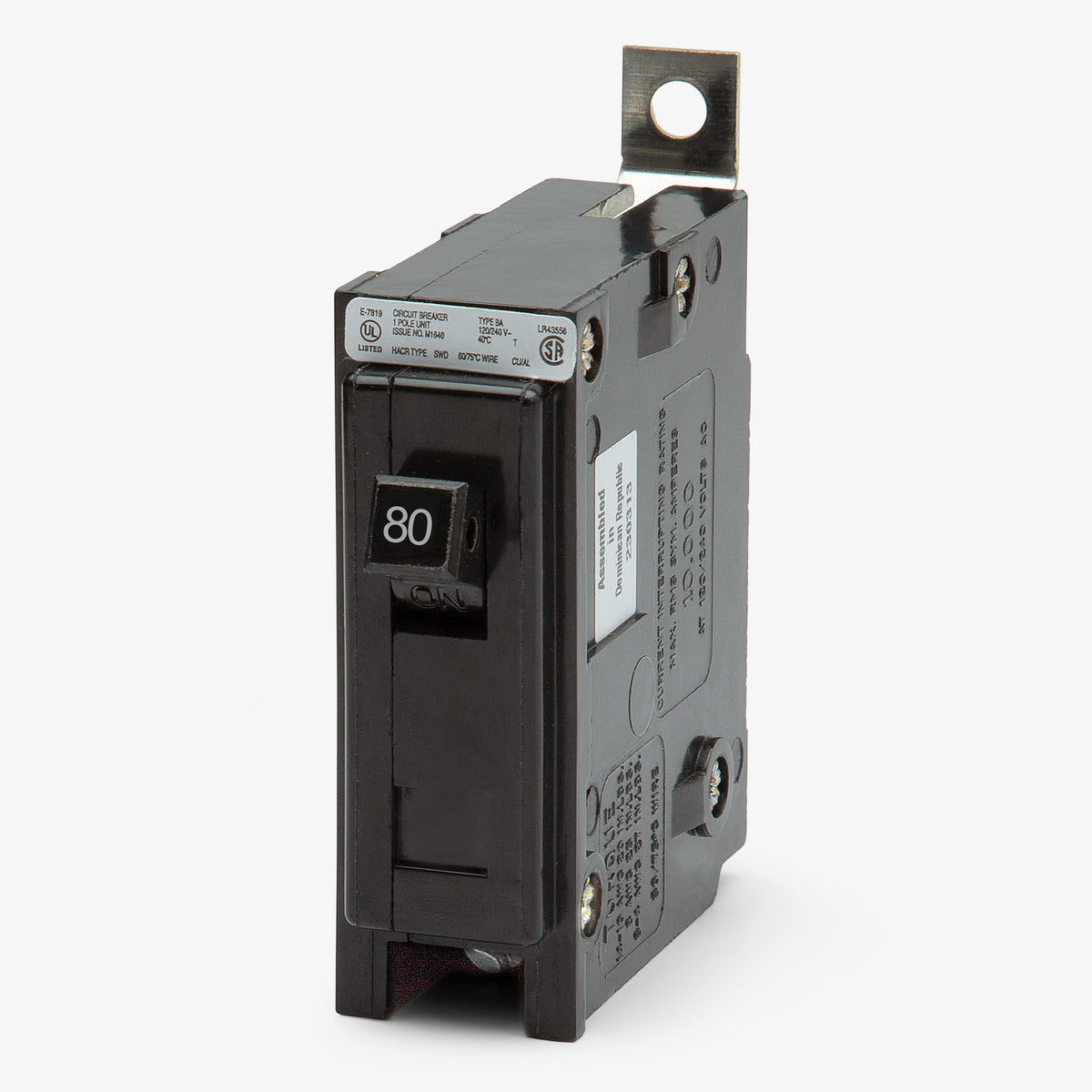

Eaton / Cutler-Hammer BAB1080 Miniature Circuit Breaker
- 80A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1080
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1080 - 80A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the Eaton BAB1080 delivers robust 80A overcurrent protection. This single-pole Quicklag breaker utilizes thermal-magnetic technology to safeguard branch circuits. It installs into Eaton Pow-R-Line, Cutler-Hammer, and legacy Westinghouse panelboards. The bolt-on design ensures a secure connection, serving as a replacement for older QNBL and QB models. Rated at 10 kAIC, this HACR-certified breaker accepts 8-1/0 AWG wire via box lug terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1080 |
| Series | BAB |
| Amperage | 80A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | HACR, UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich Eaton panelboards are compatible with the BAB1080 circuit breaker?
The BAB1080 is designed for use in Eaton Pow-R-Line panelboards, specifically the PRL1a and PRL2a series. It also fits legacy Cutler-Hammer and Westinghouse panelboards that accept bolt-on Quicklag breakers.
Can I use the BAB1080 to replace an older Westinghouse Quicklag breaker?
Yes, the Eaton BAB1080 is a direct replacement for older Westinghouse and Cutler-Hammer BAB frame breakers. Eaton acquired these product lines and maintained the exact physical dimensions and bolt-on mounting style.
What is the difference between the BAB1080 and the QBHW1080?
Both are 1-pole, 80A bolt-on breakers with the same physical footprint for Pow-R-Line panelboards. The difference is the interrupting rating. The BAB1080 is rated at 10 kAIC, while the QBHW1080 is rated at 22 kAIC.
Is the Eaton BAB1080 HACR rated?
Yes, this 80A breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific safety certification.
Can the BAB1080 be used in direct current (DC) applications?
Yes. While primarily used for 120/240VAC systems, this breaker is also certified for DC applications. It provides a 5 kAIC interrupting rating at both 24VDC and 48VDC.
What type of trip mechanism does the BAB1080 use?
It utilizes a fixed thermal-magnetic trip unit. The thermal component provides long-time protection against sustained overloads, while the magnetic component provides instantaneous protection against short circuits.

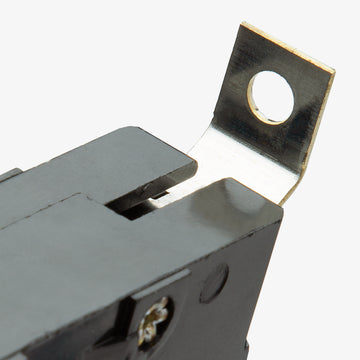

How does the BAB1080 mount into the panelboard?
It features a bolt-on connection, meaning it physically bolts directly to the panelboard busbar. This provides a highly secure, vibration-resistant connection commonly required in commercial and industrial applications.
