Eaton / Cutler-HammerBAB3020HS
Free Shipping Over $99

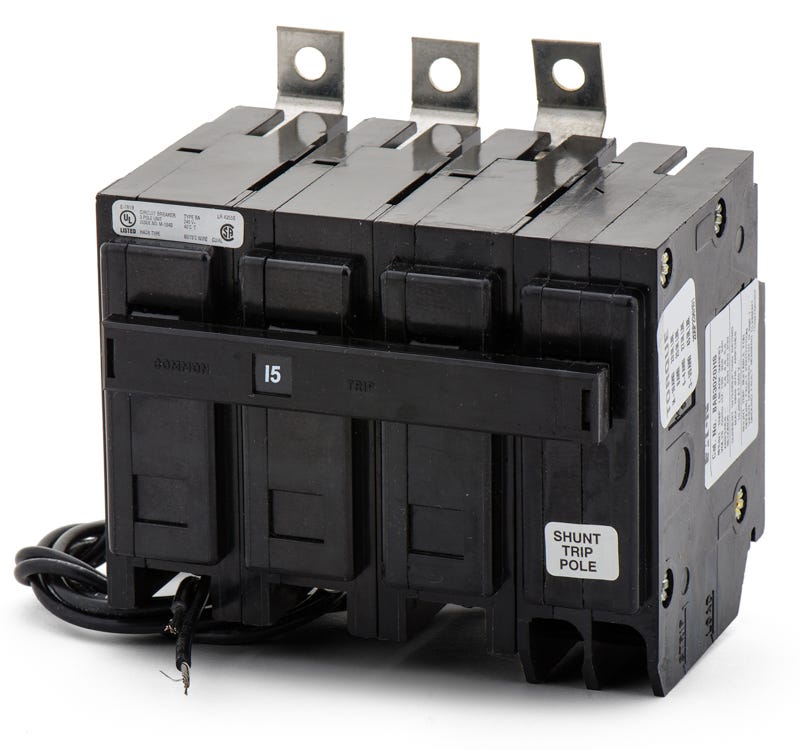

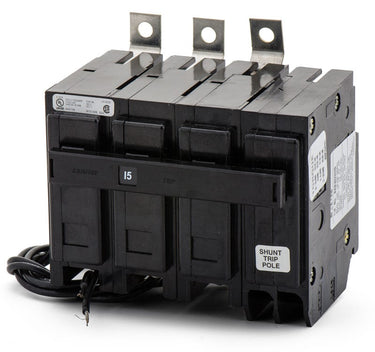

Eaton / Cutler-Hammer BAB3015HS Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3015HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3015HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3015HS - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3015HS - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3015HS |
| Series | BAB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High-Magnetic, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3015HS - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3015HS-R |
| Series | BAB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High-Magnetic, HACR Rated |
Similar Items
Eaton / Cutler-HammerBAB3020HS1
20A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3025HS
25A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3030HS
30A 3 Pole Miniature Circuit Breaker
Description
Built for commercial facilities, the Eaton BAB3015HS is a 3-pole, 15A Quicklag miniature breaker. It combines thermal-magnetic LI protection with an integrated shunt trip for remote circuit management. The bolt-on configuration installs into Eaton Pow-R-Line panelboards and legacy Cutler-Hammer load centers. It provides an exact fit for replacing older QNBL series breakers with shunt trips. Rated for 10kAIC at 240VAC, this HACR-approved breaker utilizes box lug terminals for 14-8 AWG wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3015HS |
| Series | BAB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High-Magnetic, HACR Rated |
Product FAQs
5 answersWhich panelboards are compatible with the BAB3015HS circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards and legacy Westinghouse panelboards that accept Quicklag BAB type breakers.
How does the shunt trip function operate on the BAB3015HS?
The factory installed shunt trip requires an external control voltage of 120, 208, or 240 VAC. When this voltage is applied to the accessory leads, it mechanically trips the breaker to open the circuit.
Can I use the Eaton BAB3015HS to replace an older Westinghouse BAB3015HS?
Yes. Eaton acquired the Westinghouse distribution equipment division. The Eaton Cutler-Hammer BAB3015HS is the direct replacement for the legacy Westinghouse model with the exact same catalog number.
What does the HS suffix indicate in the BAB3015HS catalog number?
The HS suffix designates that the breaker includes a factory installed shunt trip accessory rated for 120 to 240 VAC operation, allowing for remote tripping for safety or control purposes.
What type of wire can be used with the box lugs on this breaker?
The terminals accept either copper or aluminum conductors ranging from 14 AWG to 8 AWG. Ensure proper torque specifications are followed during installation.
