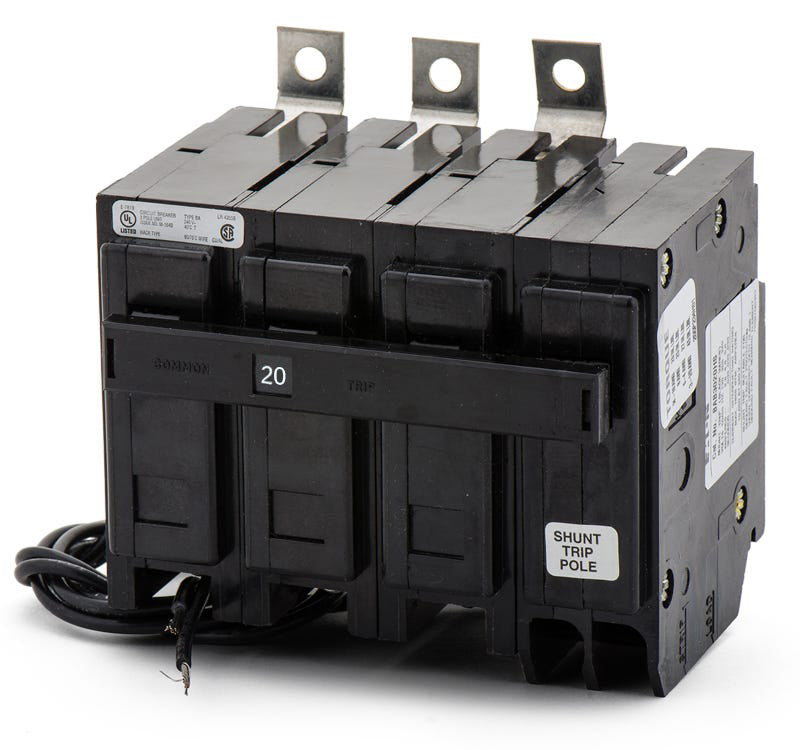

Eaton / Cutler-Hammer BAB3020HS1 Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3020HS1
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3020HS1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3020HS1 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBAB3025HS
25A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3015HS
15A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3030HS
30A 3 Pole Miniature Circuit Breaker
Description
Engineered for specialized industrial applications, the Eaton BAB3020HS1 is a 20A, three-pole miniature circuit breaker. It provides consistent thermal-magnetic protection for 240VAC commercial branch circuits. This Quicklag breaker is fully compatible with Eaton Pow-R-Line, Cutler-Hammer, and Westinghouse panelboards. It also functions as an exact replacement for discontinued QNBL series breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3020HS1 |
| Series | BAB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (24/48VDC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the HS1 suffix indicate on the BAB3020HS1 breaker?
The HS1 suffix signifies that the breaker includes a factory-installed 24/48V DC shunt trip, allowing the breaker to be tripped remotely via an external control signal.
How does the shunt trip function on the BAB3020HS1?
The integrated shunt trip allows for remote operation. When a 24V or 48V DC signal is applied to the shunt trip accessory leads, it mechanically trips the breaker to open the circuit.
Which panelboards are compatible with the BAB3020HS1?
This breaker is designed for commercial and industrial Eaton Pow-R-Line, Cutler-Hammer, and legacy Westinghouse panelboards that specifically accept bolt-on BAB frame circuit breakers.
Can the BAB3020HS1 replace older QNBL series breakers?
Yes, this BAB series breaker serves as a direct replacement for discontinued QNBL series breakers with matching pole, voltage, and amperage configurations.
How is the BAB3020HS1 installed in the panelboard?
This is a bolt-on circuit breaker, meaning it physically bolts directly to the panelboard busbar rather than snapping or plugging into place. Always ensure the panel is completely de-energized before installation.
Does the BAB3020HS1 include GFCI or AFCI protection?
No, this is a standard thermal-magnetic breaker providing overload and short-circuit protection. It does not feature ground fault or arc fault capabilities.
