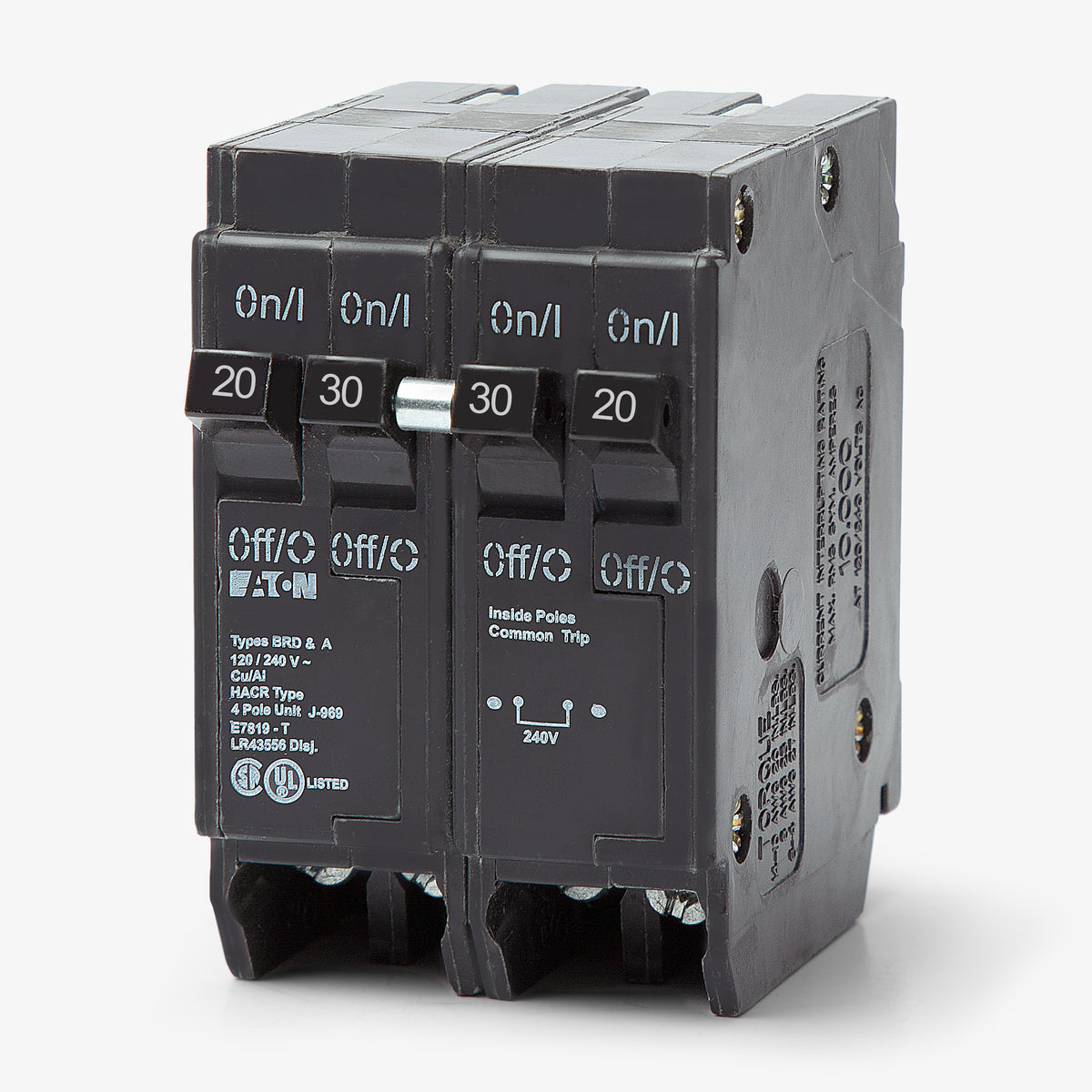

Eaton / Cutler-Hammer BQ2302120 20/30A Quadplex Miniature Circuit Breaker
- 20/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ2302120
20/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ2302120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ2302120 - 20/30A Quadplex Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BQ2302120 - 20/30A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2302120 |
| Series | BQ |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Sold out
Quantity
Eaton / Cutler-Hammer BQ2302120 - 20/30A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2302120-R |
| Series | BQ |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Similar Items
15/30A Quadplex Miniature Circuit Breaker
25/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQ2302115
15/30A Quadplex Miniature Circuit Breaker
Description
Built for residential and commercial applications, this Eaton quadplex breaker delivers 20/30A of power distribution in a compact footprint. It allows installers to add multiple circuits without requiring a larger enclosure. The device installs into Type BR load centers using a standard plug-on connection and includes a rejection tab for secure seating. Rated for 10kAIC at 120/240VAC, it utilizes thermal-magnetic trip technology to ensure consistent overload and short-circuit protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2302120 |
| Series | BQ |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Product FAQs
7 answersWhat panels are compatible with the BQ2302120 quadplex breaker?
This breaker is designed for use in Eaton, Cutler-Hammer, and legacy Bryant Type BR load centers that accept CTL (Circuit Total Limitation) breakers. It requires notched bus stabs to accommodate its rejection tab.
How are the 20A and 30A circuits configured on this quadplex breaker?
The BQ2302120 provides two independent single-pole 20A circuits on the outer poles and one two-pole 30A circuit on the inner poles.
Why does the BQ2302120 have a rejection tab?
The rejection tab classifies this as a CTL (Circuit Total Limitation) breaker. It prevents the breaker from being installed in non-notched panel slots, ensuring the panel does not exceed its maximum designed number of circuits.
Will this breaker fit in older Westinghouse or Bryant panels?
Yes, Eaton Type BR breakers are backward compatible with legacy Cutler-Hammer, Westinghouse, and Bryant BR-style load centers, as long as the specific slot has a notched bus stab to accept the CTL rejection tab.
Can this breaker be used for HVAC equipment?
Yes, the BQ2302120 is fully HACR rated, making it suitable for heating, air conditioning, and refrigeration motor loads that require a 20A or 30A circuit.
What wire material is compatible with the BQ2302120 box lugs?
The box lugs on this breaker are rated to accept both copper (Cu) and aluminum (Al) wiring ranging from 14 AWG to 4 AWG.
Are the 20A poles on this breaker switch duty rated?
Yes, the 20A single-pole circuits on the BQ2302120 are SWD (Switch Duty) rated, allowing them to be used for switching 120V fluorescent lighting loads on and off regularly.
