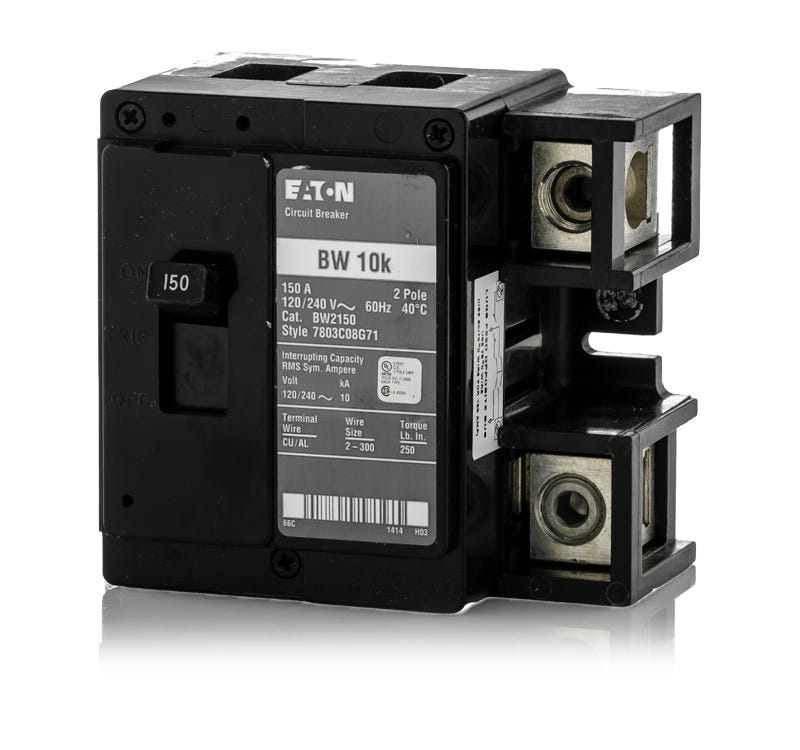

Eaton / Cutler-Hammer BW2150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BW2150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BW2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BW2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BW2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BW2150 |
| Series | BW |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, HACR Rated |
Quantity
Eaton / Cutler-Hammer BW2150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BW |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, HACR Rated |
Similar Items
125A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Engineered for primary service disconnects, the BW2150 delivers essential overcurrent safety for residential and commercial electrical systems. This two-pole breaker mounts into Eaton BR load centers and Type ECB unit enclosures. It accommodates 2 AWG to 300 kcmil wiring and replaces legacy BW2150 and CM2150 units. With a 10 kAIC interrupt capacity at 120/240V, it handles standard fault currents effectively. This HACR-rated breaker is UL 489 listed for reliable performance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BW2150 |
| Series | BW |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, HACR Rated |
Product FAQs
6 answersCan I use the BW2150 as a branch breaker in a standard panel?
No, the BW2150 is a dedicated main breaker frame. It is designed to be installed as the primary service disconnect in compatible Eaton BR load centers and Type ECB unit enclosures, rather than as a standard plug-on branch breaker.
What is the difference between the Eaton BW2150 and BWH2150?
The primary difference is the interrupting capacity. The BW2150 is rated for 10kAIC at 240V, while the BWH2150 is a higher-rated version capable of handling 25kAIC for systems with higher available fault currents.
Does the BW2150 replace older Cutler-Hammer CM series breakers?
Yes, the BW2150 serves as a direct replacement for legacy Cutler-Hammer CM2150 main breakers used in older BR load centers.
Are the lugs on the BW2150 rated for aluminum wire?
Yes, the factory-installed lugs are rated for both copper (Cu) and aluminum (Al) conductors. They accommodate wire sizes ranging from 2 AWG up to 300 kcmil.
Is this breaker suitable for HVAC applications?
Yes, the BW2150 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment loads.
Does this breaker provide GFCI or AFCI protection?
No, the BW2150 is a standard thermal-magnetic main breaker. It provides long-time and instantaneous trip functions for overcurrent and short-circuit protection, but does not include ground-fault or arc-fault circuitry.
