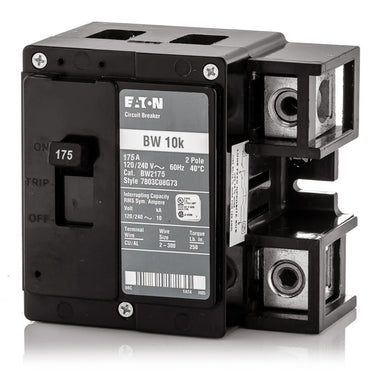

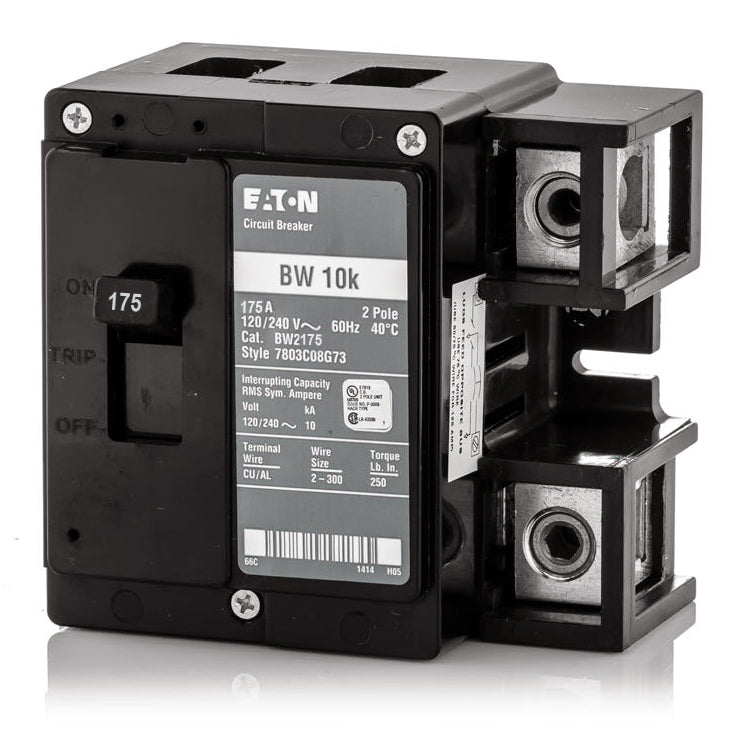

Eaton / Cutler-Hammer BW2175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BW2175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BW2175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BW2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BW2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BW2175 |
| Series | BW |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BW2175 - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BW |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, HACR Rated |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Providing robust safety for main electrical distribution, the BW2175 is a 175-amp thermal-magnetic breaker for residential and commercial service entrances. This two-pole component mounts into Eaton BR load centers and Type ECB unit enclosures via a standard plug-on connection. It accepts 2 AWG to 300 kcmil conductors and acts as a substitute for older CM2175 models. Rated at 10 kAIC for 120/240 VAC systems, it safely interrupts standard fault currents. The unit is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BW2175 |
| Series | BW |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, HACR Rated |
Product FAQs
7 answersWhat load centers are compatible with the Eaton BW2175?
The BW2175 is designed for use as a main circuit breaker in Eaton BR series load centers and Type ECB unit enclosures.
What is the difference between the Eaton BW2175 and BWH2175?
Both are 175A, 2-pole main breakers for BR load centers. The BW2175 has a standard 10kAIC interrupting rating, while the BWH2175 provides a higher 25kAIC rating for systems with higher available fault current.
What wire sizes are accepted by the BW2175 terminals?
The breaker lugs accept copper or aluminum conductors ranging from 2 AWG to 300 kcmil. Ensure proper torque specifications are followed during installation.
Can the BW2175 replace older Cutler-Hammer main breakers?
Yes. Eaton acquired Cutler-Hammer, and the modern Eaton BW2175 is the direct replacement for legacy Cutler-Hammer BW2175 main breakers.
Can I use the BW2175 in a 3-phase electrical panel?
No. The BW2175 is a 2-pole breaker designed exclusively for single-phase, 120/240V AC systems. It will not fit or operate correctly in a 3-phase load center.
Are the trip settings on the BW2175 adjustable?
No. The breaker features a fixed thermal-magnetic trip unit. It provides standard long-time and instantaneous (LI) protection and does not have adjustable dials for field calibration.
Does the BW2175 provide GFCI or AFCI protection?
No. The BW2175 is a standard thermal-magnetic main breaker. It does not include ground fault (GFCI) or arc fault (AFCI) protection circuitry.
