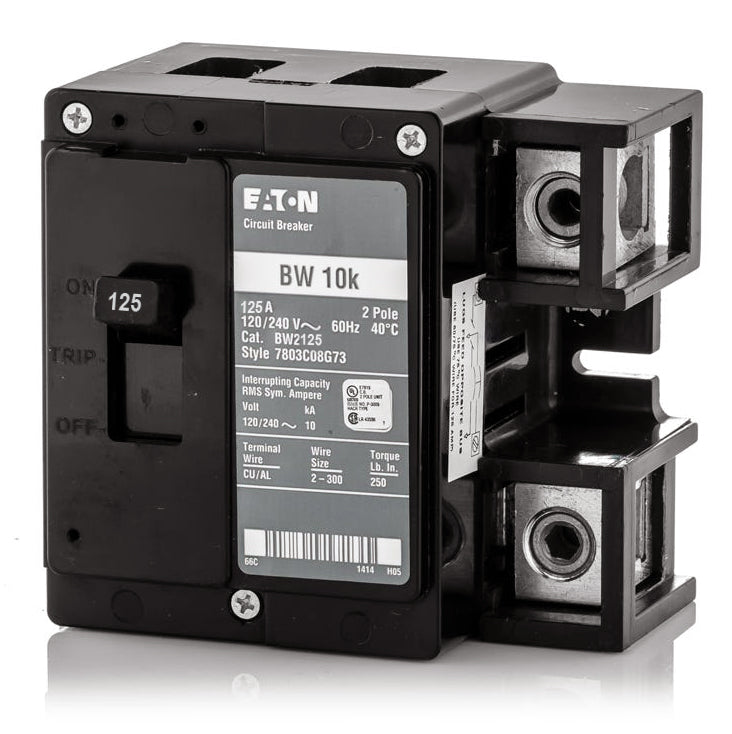

Eaton / Cutler-Hammer BW2125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BW2125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BW2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BW2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BW2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BW2125 |
| Series | BW |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Main Breaker, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer BW2125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BW |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Main Breaker, Common Trip |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
A reliable choice for main service protection, the Eaton BW2125 delivers 125A of capacity in a 2-pole configuration. This thermal-magnetic molded case circuit breaker is built to handle the demands of residential and commercial electrical systems. Designed with a plug-on mounting style, it fits securely into Eaton BR load centers and Type ECB unit enclosures. It replaces older BW2125 and CM2125 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BW2125 |
| Series | BW |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BW |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton BR Load Centers, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Line Side Lugs Included |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Main Breaker, Common Trip |
Product FAQs
7 answersWhich load centers are compatible with the Eaton BW2125 circuit breaker?
The BW2125 is designed for use as a main breaker in Eaton BR series load centers and Type ECB unit enclosures.
What type of wire is compatible with the BW2125 main breaker lugs?
The factory-installed lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 2 AWG to 300 kcmil. Ensure you apply the correct torque specifications listed on the breaker label during installation.
How does the BW2125 mount inside the panel?
It is a main breaker that mounts directly to the bus in compatible BR load centers and ECB enclosures. Always ensure the breaker is securely seated and fastened according to the panel wiring diagram.
Can I use the Eaton BW2125 in a Square D or Siemens panel?
No. The BW2125 is specifically engineered and UL listed for Eaton BR load centers and Type ECB unit enclosures. Installing it in other brands violates UL listings and compromises safety.
What type of trip protection does the BW2125 provide?
This thermal-magnetic breaker features fixed long-time and instantaneous (LI) trip functions. The thermal element protects against prolonged overloads, while the magnetic element trips instantly during severe short circuits. The trip settings are factory set and cannot be adjusted in the field.
What is the difference between the Eaton BW2125 and BWH2125?
The BW2125 has a standard interrupting rating of 10 kAIC at 240V. The BWH2125 is the high-interrupting version, rated at 25 kAIC. Check your local utility requirements or panel labeling to determine which interrupting rating is required for your service entrance.
Does the BW2125 replace older Cutler-Hammer BW breakers?
Yes. Eaton acquired Cutler-Hammer, and the BW2125 is the direct replacement for legacy Cutler-Hammer BW2125 main breakers used in BR load centers.
