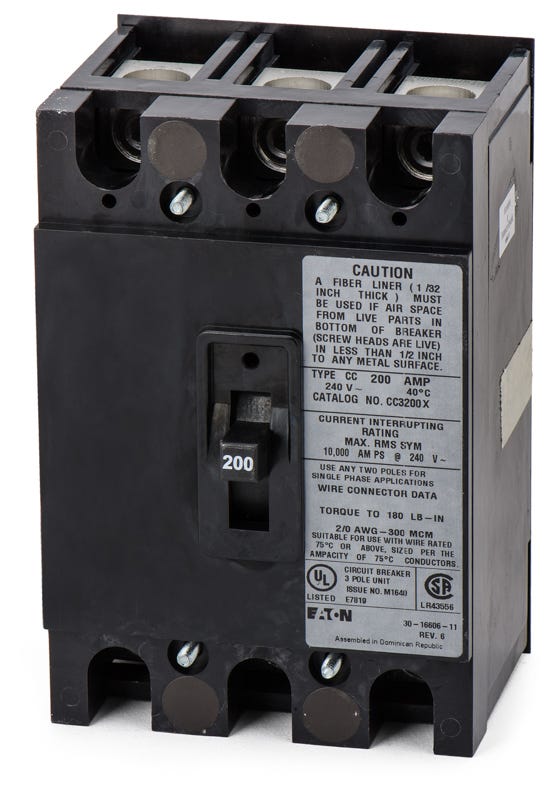

Eaton / Cutler-Hammer CC3200X Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CC3200X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC3200X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CC3200X - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3200H4X
200A 3 Pole Molded Case Circuit Breaker
Description
Tailored for multi-tenant metering environments, the Eaton CC3200X functions as a dedicated tenant main or branch breaker. It delivers consistent thermal-magnetic protection for residential and commercial electrical services. Fastens securely into Eaton 1MP, 1MM, and 3MM modular meter stacks via a robust bolt-on connection. This specific configuration includes load side lugs only and is officially replaced by the CCV3200X.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3200X |
| Series | CC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
7 answersWhich Eaton meter stacks are compatible with the CC3200X breaker?
This breaker is designed to function as a tenant main or branch breaker in Eaton and Cutler-Hammer 1MP, 1MM, and 3MM modular meter stacks. It is also compatible with 37MM and 37SS three-phase modular metering stacks.
What is the current replacement model for the CC3200X?
The CC3200X has been officially replaced by the Eaton CCV3200X. The CCV3200X serves as the direct equivalent for 200A tenant main applications in compatible modular meter stacks.
What wire sizes are accepted by the lugs on this breaker?
The included line and load side lug terminals accept copper or aluminum conductors ranging from 2/0 AWG to 300 kcmil.
Are the thermal and magnetic trip functions adjustable on this model?
No, the CC3200X features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip settings.
How is the CC3200X secured inside the meter stack?
It utilizes a bolt-on mounting connection to fasten securely into the meter stack chassis, providing a stable mechanical and electrical connection for service entrance applications.
Can the CC3200X be used as a main service breaker?
Yes, it is suitable for use as a tenant main breaker in multi-tenant residential and commercial modular metering environments.
Is this breaker suitable for three-phase systems?
Yes, the CC3200X is a 3-pole breaker designed for three-phase electrical services, commonly used in 37MM and 37SS three-phase modular metering stacks.
