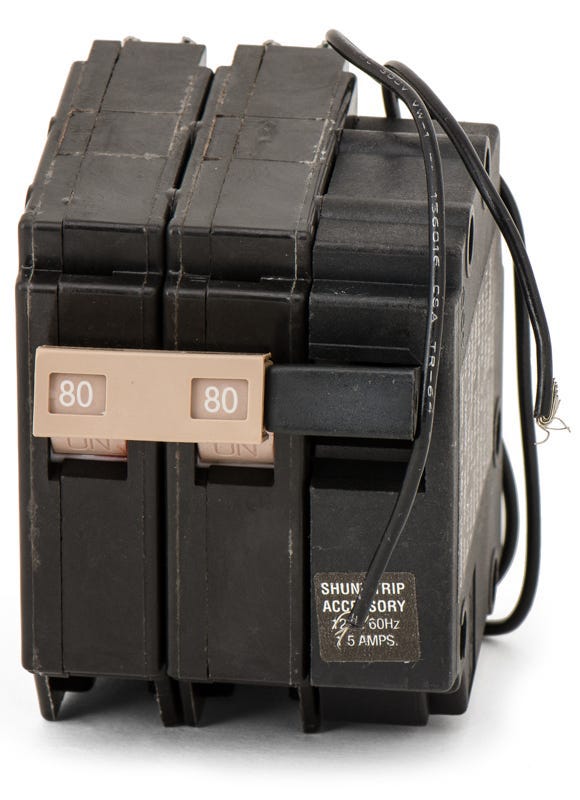

Eaton / Cutler-Hammer CH280ST Miniature Circuit Breaker
- 80A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH280ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH280ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH280ST - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Providing advanced control for commercial and industrial setups, the Eaton CH280ST combines an 80A, two-pole thermal-magnetic breaker with a factory-installed 120VAC shunt trip. This allows the circuit to be opened remotely via an external signal. The plug-on unit is built to fit Eaton and Cutler-Hammer Type CH panelboards. Due to the integrated shunt trip accessory, it requires one additional 3/4-inch pole space. Rated for 10kAIC at 120/240VAC, it features a quick-make/quick-break mechanism.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH280ST |
| Series | CH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Loadcenters |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat loadcenters are compatible with the Eaton CH280ST?
The CH280ST is designed exclusively for use in Eaton and legacy Cutler-Hammer Type CH loadcenters. It utilizes a 3/4-inch per pole plug-on mounting design.
What does the ST suffix indicate on the CH280ST circuit breaker?
The ST suffix indicates that the breaker includes a factory-installed shunt trip. This feature allows the breaker to be tripped remotely by applying an external control voltage, commonly used for emergency shutdowns or fire alarm system integration.
How is the shunt trip wired on the CH280ST?
The factory-installed shunt trip features two black pigtail leads that are not polarity sensitive. One lead connects to the control voltage source, and the other connects to a normally open (NO) contact, such as a momentary push button or relay, to complete the circuit.
What type of control signal is required to activate the shunt trip on the CH280ST?
The shunt trip requires a momentary application of external control voltage to trigger the breaker. This is typically achieved by wiring the shunt trip leads through a normally open (NO) set of contacts, such as a momentary push button or a fire alarm relay.
Can I field-install a shunt trip on a standard 80A Type CH breaker?
No. For Eaton Type CH miniature circuit breakers, the shunt trip mechanism is only available as a factory-installed option. It cannot be added to a standard breaker in the field.
What safety precautions apply when wiring the CH280ST shunt trip?
Always ensure the control voltage source is de-energized before wiring the shunt trip leads. The shunt trip circuit must be wired according to local electrical codes, typically requiring a dedicated control power source or integration with a certified fire alarm control panel.
Can the Eaton CH280ST replace older Cutler-Hammer breakers?
Yes, Eaton acquired Cutler-Hammer, and the CH280ST is a direct, UL-listed replacement for older Cutler-Hammer Type CH breakers with the same specifications and shunt trip requirement.
