Eaton / Cutler-Hammer CH270ST Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH270ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH270ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

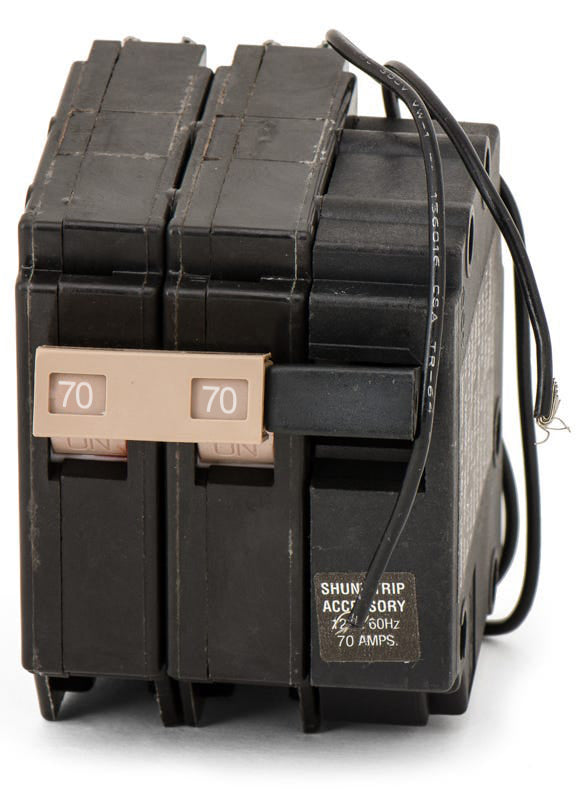

Eaton / Cutler-Hammer CH270ST - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial environments, the Eaton CH270ST provides 70A of thermal-magnetic protection. This 2-pole breaker includes a factory-installed shunt trip accessory, allowing the circuit to be opened remotely via an external voltage signal. The unit mounts into standard Eaton Type CH load centers, occupying two 3/4-inch spaces. It features box lug terminals that accommodate 14-2 AWG copper or aluminum wiring. With a 10 kAIC interrupt rating, it meets UL 489 standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhat does the ST suffix indicate on the CH270ST breaker?
The ST suffix means this breaker includes a factory-installed shunt trip. This feature allows the breaker to be tripped remotely when a voltage signal is applied to the shunt trip coil, which is commonly used for emergency stops or automated safety shutdowns.
How many panel spaces does the CH270ST require?
While it is a 2-pole breaker, the CH270ST requires three 3/4-inch spaces in your panel. The integrated shunt trip mechanism occupies one additional pole space alongside the two standard poles.
Can I install the CH270ST in an Eaton BR series panel?
No. The CH270ST is a Type CH plug-on breaker and is only compatible with Eaton or Cutler-Hammer CH series load centers. It will not fit in BR series panels or load centers from other manufacturers.
Are Eaton and Cutler-Hammer CH270ST breakers interchangeable?
Yes. Eaton acquired Cutler-Hammer and continues to produce the CH series under the Eaton name. A CH270ST branded as Eaton is an exact, direct replacement for an older Cutler-Hammer CH270ST.
What type of protection does the thermal-magnetic trip unit provide?
The thermal-magnetic mechanism includes fixed long-time and instantaneous (LI) trip functions. The thermal component protects against prolonged overloads, while the magnetic component provides immediate tripping during short circuits.
Does the CH270ST feature a common trip mechanism?
Yes, this 2-pole breaker features an internal common trip. If one pole experiences an overload or short circuit, both poles will trip simultaneously to disconnect power to the entire circuit.
