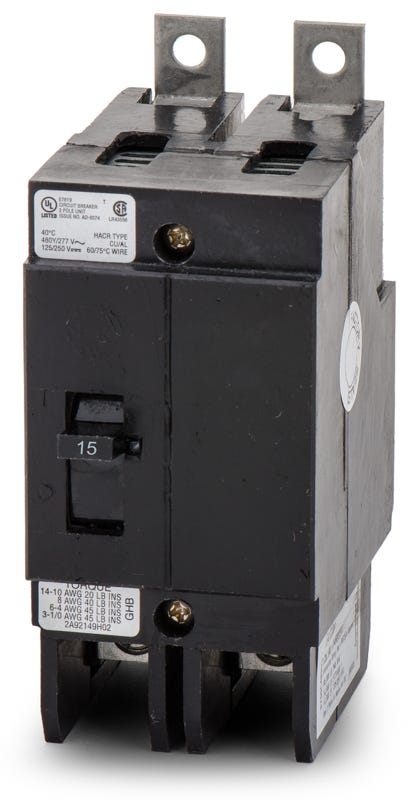

Eaton / Cutler-Hammer GHB2015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2015 |
| Series | GHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB2015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2015-R |
| Series | GHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Designed for industrial distribution, the Eaton GHB2015 is a two-pole molded case circuit breaker from the Series C G-frame lineup. It delivers reliable protection for 480Y/277VAC systems. This unit installs into Eaton Pow-R-Line C panelboards, switchboards, and motor control centers. The bolt-on design provides a stable connection, and it substitutes for GHC2015 breakers. Featuring fixed thermal-magnetic trip settings, it offers a 14kAIC rating at 480Y/277VAC and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2015 |
| Series | GHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the GHB2015 circuit breaker?
The GHB2015 is designed for use in Eaton Pow-R-Line C panelboards, switchboards, and motor control centers. It is commonly installed in PRL1a, PRL2a, and PRL3a distribution panels.
Can the Eaton GHB2015 be reverse fed?
Yes. All Eaton G-Frame molded case circuit breakers, including the GHB2015, are suitable for reverse feed applications.
Is the GHB2015 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific protection.
What is the recommended terminal torque for the GHB2015?
For the supported 14 to 10 AWG wire range, the recommended terminal tightening torque is 20 lb-in.
Does this breaker replace older Westinghouse or Cutler-Hammer GHB2015 models?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The Eaton GHB2015 is the direct, exact replacement for legacy Cutler-Hammer and Westinghouse breakers with the same part number.
Does this 2-pole breaker feature an internal common trip?
Yes, all 2-pole and 3-pole Eaton G-Frame circuit breakers feature an internal common trip mechanism. If one pole trips due to an overcurrent or short circuit, all poles will open simultaneously to disconnect power safely.
Does the GHB2015 provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker. It provides long-time and instantaneous trip functions for overload and short-circuit protection, but does not include ground fault or arc fault circuitry.
