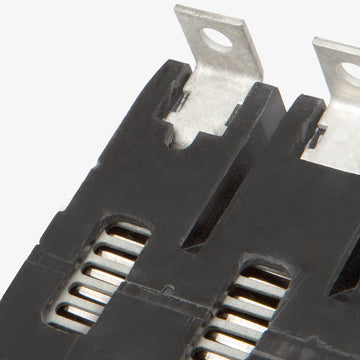

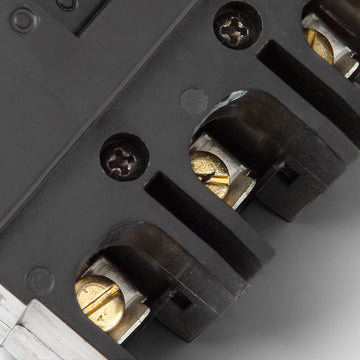

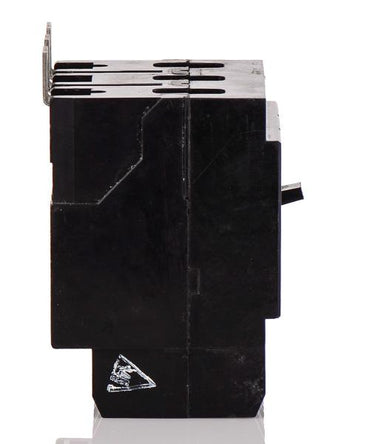

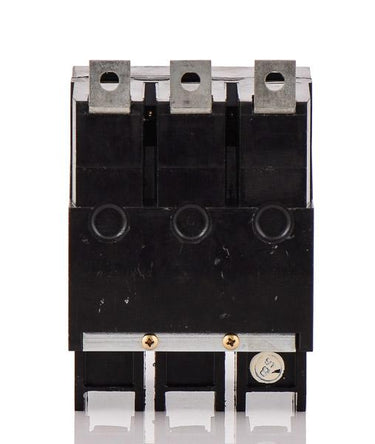

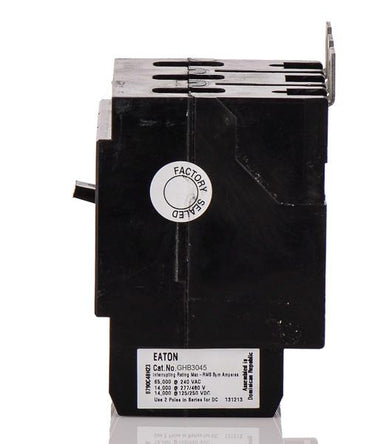

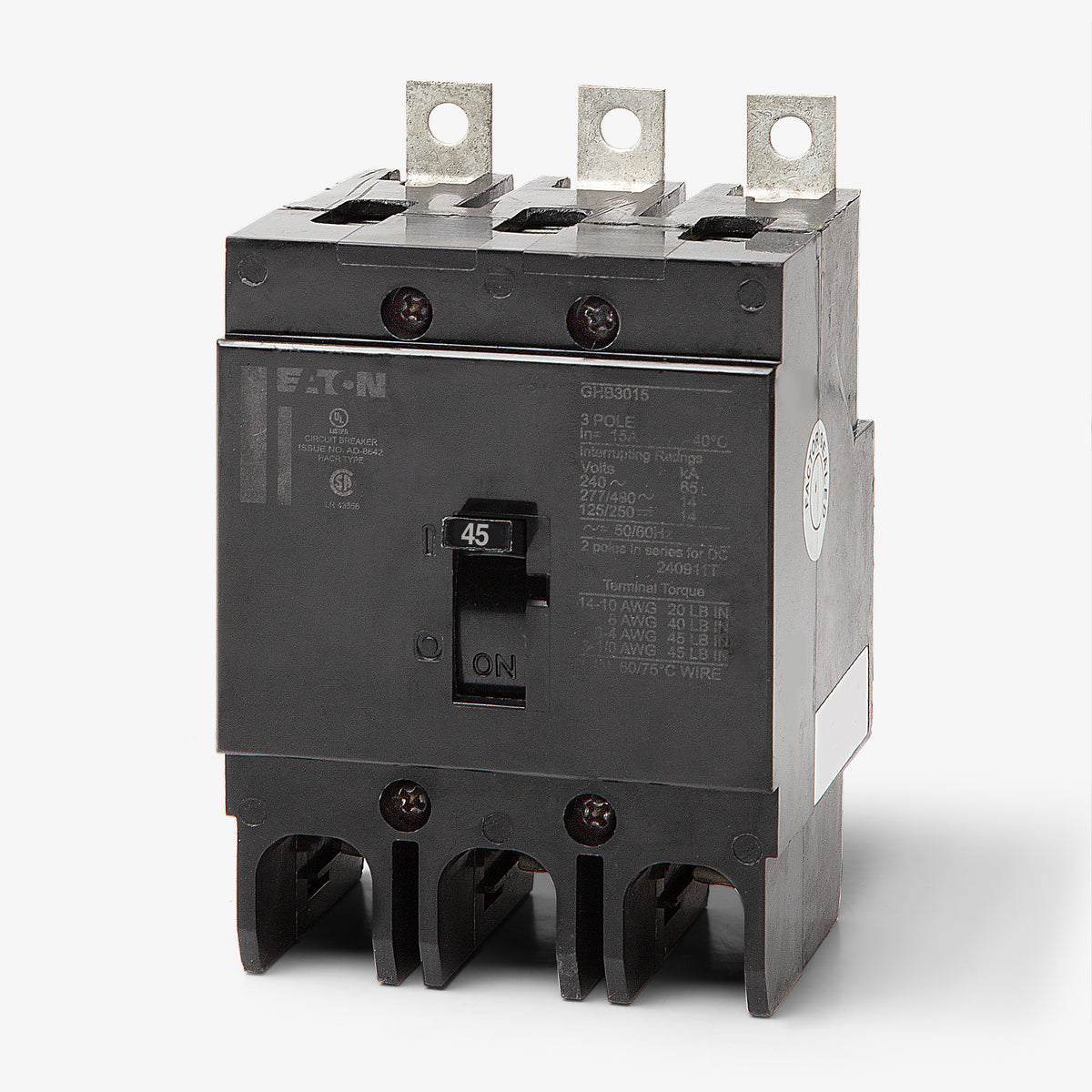

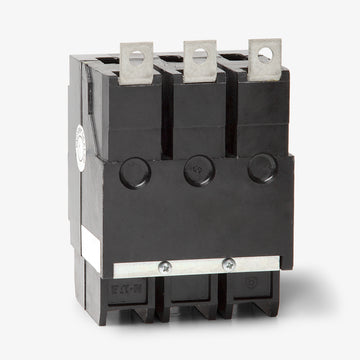

Eaton / Cutler-Hammer GHB3045 Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3045
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3045 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB3045 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3045 |
| Series | GHB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB3045 - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3045-R |
| Series | GHB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerGHB3050S1
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3040S1
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial facilities, the Eaton GHB3045 provides robust branch circuit protection. This 3-pole, 45A molded case circuit breaker is part of the proven Series C G-Frame lineup. It bolts into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. The bolt-on design ensures a secure, vibration-resistant connection for stable three-phase power distribution. Rated 14 kAIC at 480Y/277V, it features fixed thermal-magnetic trip units and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3045 |
| Series | GHB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the GHB3045 circuit breaker?
This breaker is designed to bolt directly into Eaton and Cutler-Hammer Pow-R-Line panelboards, specifically the PRL1a and PRL2a series. It is also compatible with standard Series C switchboards and motor control centers.
Can the GHB3045 be used as a direct replacement for older Westinghouse models?
Yes. Eaton acquired the Westinghouse and Cutler-Hammer distribution equipment lines. The current Eaton GHB3045 is a direct, drop-in replacement for older Westinghouse or Cutler-Hammer breakers sharing the exact same catalog number.
Is this circuit breaker suitable for reverse feed applications?
Yes, Eaton G-frame breakers, including this model, are approved for reverse feed use. This allows it to be back-fed in compatible panelboards when used as a main breaker, provided a hold-down kit is installed per NEC requirements.
Is the GHB3045 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated. It is fully approved for protecting heating, air conditioning, and refrigeration circuits that require this specific safety designation.
What is the continuous current rating for this 45A breaker?
Like most standard molded case circuit breakers, it is 80 percent rated. Under National Electrical Code (NEC) guidelines, the continuous load on this breaker should not exceed 36 amps, which is 80 percent of its nominal 45-amp rating.
Do I need a separate mounting kit to install this breaker?
No additional mounting kit is required for standard installation. It features a bolt-on design that connects directly to the busbars inside compatible Pow-R-Line panelboards.
