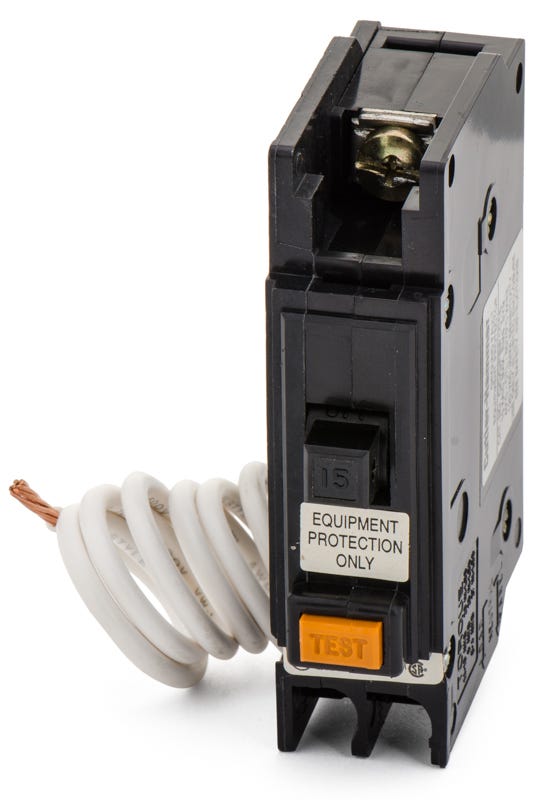

Eaton / Cutler-Hammer QCGFEP1015 GFEP Miniature Circuit Breaker
- 15A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP1015
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP1015 - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP1030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2015
15A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1015
15A GFEP Miniature Circuit Breaker
Description
Part of the Quicklag family, this 15A miniature breaker provides dedicated equipment protection for commercial applications. It detects ground faults at a 30mA threshold to prevent damage to machinery. Featuring a cable-in/cable-out panel mount configuration, it installs into Eaton Quicklag panelboards and enclosures. The box lug terminals accept 14-4 AWG wiring. Rated 10 kAIC at 120VAC, this single-pole unit utilizes thermal-magnetic trip technology and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFEP1015 |
| Series | QCGFEP |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the ground fault trip sensitivity for the QCGFEP1015?
This is a Ground Fault Equipment Protector (GFEP) with a 30mA trip threshold. It is designed to protect machinery from equipment damage, unlike Class A GFCI breakers which trip at 5mA for personnel protection.
How does a feed-thru QC breaker connect to the power source?
Unlike plug-on or bolt-on breakers, the QC series uses a cable-in/cable-out configuration. You must land individual wires on both the line and load box lugs, making it ideal for remote mounting or custom enclosures without a traditional busbar.
What is the purpose of the pigtail wire on this breaker?
The pigtail neutral must be wired directly to the neutral bar in your panelboard or enclosure. This connection powers the internal circuitry required to monitor the circuit for ground faults.
Can I use this to replace an older Cutler-Hammer QCGFEP1015?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture this exact breaker under the same catalog number. The Eaton and Cutler-Hammer branded versions are fully interchangeable.
Will this breaker snap onto a standard load center busbar?
No. The QCGFEP1015 is a panel mount, feed-thru breaker. It does not connect to a busbar and is specifically designed for Eaton Quicklag panelboards or enclosures that accommodate cable-in/cable-out mounting.
