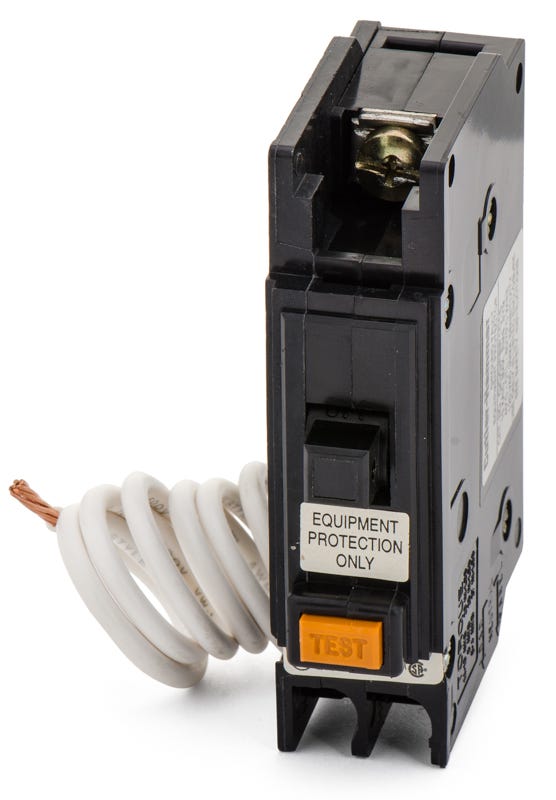

Eaton / Cutler-Hammer QCGFEP1020 GFEP Miniature Circuit Breaker
- 20A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP1020
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP1020 - 20A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP1030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1020
20A GFEP Miniature Circuit Breaker
Description
Built for industrial equipment safety, this 20A GFEP breaker monitors circuits for ground faults. Its 30mA trip sensitivity is engineered to protect hardware rather than serving as a personnel GFCI. This single-pole breaker utilizes a panel mount design with cable-in/cable-out connections. It fits into Eaton Quicklag panelboards and standard enclosures, accommodating 14-4 AWG wire. Delivering a 10 kAIC interrupting capacity at 120VAC, the unit features a fixed thermal-magnetic trip mechanism.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFEP1020 |
| Series | QCGFEP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat is the ground fault trip sensitivity of the QCGFEP1020?
This breaker features a 30mA ground fault trip sensitivity. It is designed for Ground Fault Equipment Protection (GFEP) to protect machinery, heat tracing, and snow melting equipment from damage.
What type of panelboards accept the QCGFEP1020 breaker?
This breaker is designed for use in Eaton Quicklag panelboards and Quicklag enclosures that accept cable-in/cable-out mounted breakers.
How does the QCGFEP1020 mount into the panel?
The QC series utilizes a cable-in/cable-out mounting design. It does not plug on or bolt directly to a busbar. Instead, it is secured via panel mounting and wired directly to the line and load sides.
How is the neutral connection handled on this GFEP breaker?
The breaker includes a pigtail neutral wire that must be connected directly to the neutral bar in your panelboard to power the ground fault sensing circuitry.
Can I use the QCGFEP1020 to meet NEC requirements for personnel GFCI protection?
No. Because this breaker has a 30mA trip threshold, it does not meet the 5mA Class A GFCI requirement for protecting personnel in areas like bathrooms, kitchens, or outdoor receptacles.
Is the QCGFEP1020 interchangeable with QB or QCH series breakers?
No. While they are all part of the Quicklag family, QC breakers are cable-in/cable-out, QB breakers are bolt-on, and QCH breakers have a higher interrupting capacity. You must use the specific mounting type required by your panel.
What does the LIG trip function code indicate on this breaker?
LIG stands for Long-Time, Instantaneous, and Ground-Fault. This means the thermal-magnetic trip unit provides standard overload protection (Long-Time), short-circuit protection (Instantaneous), and equipment-level ground fault protection (Ground-Fault).
