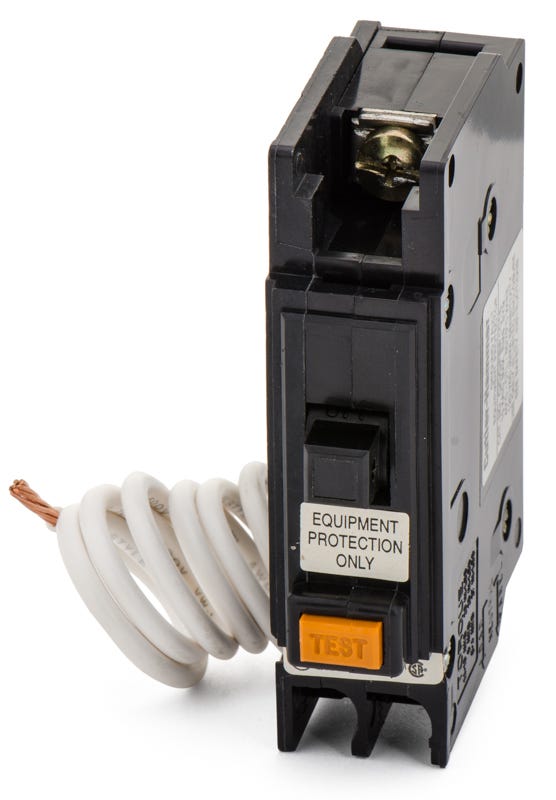

Eaton / Cutler-Hammer QCGFEP1030 GFEP Miniature Circuit Breaker
- 30A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP1030
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP1030 - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP1015
15A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1030
30A GFEP Miniature Circuit Breaker
Description
Designed to safeguard commercial machinery, this 30A equipment protection breaker offers reliable ground fault detection. The 30mA threshold prevents hardware damage while minimizing nuisance tripping. The cable-in/cable-out configuration allows for installation into Eaton Quicklag panelboards. Its box lug terminals provide secure connections for 14-4 AWG conductors. This 120VAC, single-pole breaker provides a 10 kAIC rating. It features a fixed thermal-magnetic trip unit and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFEP1030 |
| Series | QCGFEP |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QCGF |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 30mA Trip Sensitivity |
Product FAQs
6 answersWhat is the difference between this GFEP breaker and a standard GFCI breaker?
The QCGFEP1030 is a Ground Fault Equipment Protector (GFEP) with a 30mA trip threshold, designed to protect equipment from damage while preventing nuisance tripping. A standard Class A GFCI breaker has a 5mA trip threshold and is strictly designed for personnel shock protection.
Can I use this 30mA GFEP breaker to meet residential bathroom or kitchen receptacle codes?
No. The National Electrical Code (NEC) requires Class A GFCI protection with a 5mA trip threshold for residential bathroom, kitchen, and outdoor receptacles to protect personnel. This 30mA equipment protection breaker does not meet those personnel safety requirements.
What types of applications require a 30mA GFEP breaker?
Ground Fault Equipment Protection (GFEP) breakers are typically used to protect electrical equipment that may have inherent low-level current leakage. Common applications include pipe heat tracing tapes, roof snow melting equipment, and industrial heating systems.
How does this Quicklag QC breaker mount in an enclosure?
The QC series features a cable-in/cable-out, feed-thru design using box lugs, meaning it does not plug onto a traditional loadcenter bus bar. It mounts to the backpan using Eaton Quicklag base mounting plates designed specifically for QC series breakers.
How is the neutral connection handled for this GFEP breaker?
The breaker is equipped with a pigtail neutral. You must route and terminate this attached white pigtail wire directly to the neutral bus bar in the panelboard to properly power the internal ground fault detection circuitry.
Is the Cutler-Hammer QCGFEP1030 the exact same breaker as the Eaton version?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Quicklag circuit breaker family. Units labeled under either brand with the QCGFEP1030 catalog number are physically and functionally identical.
