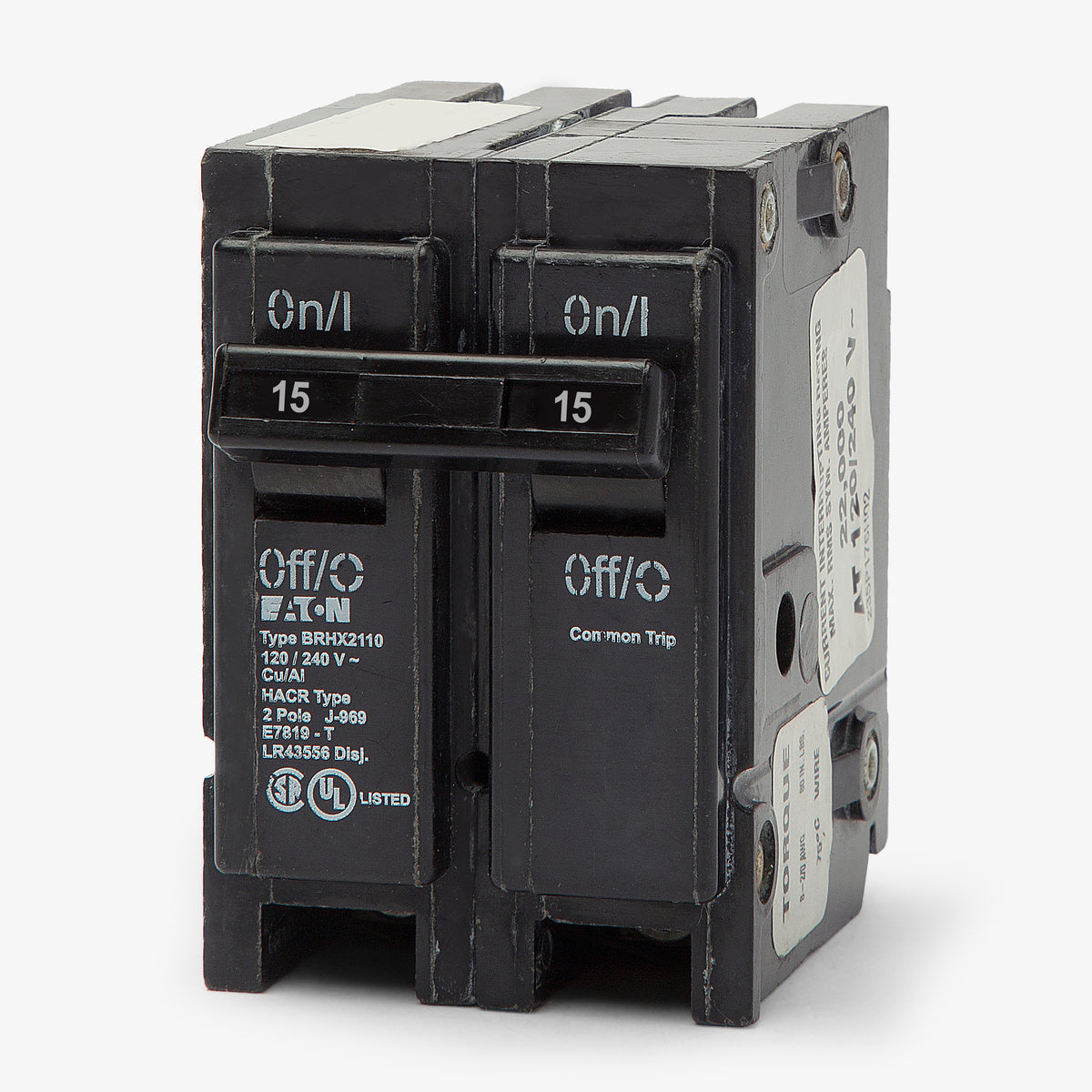

Eaton / Cutler-Hammer BRH215 Miniature Circuit Breaker
- 15A
- 2 Pole

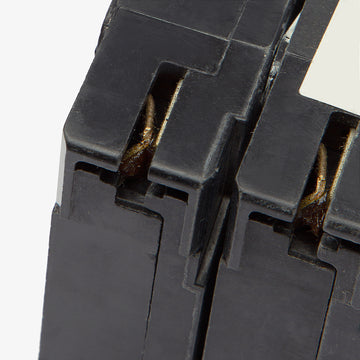

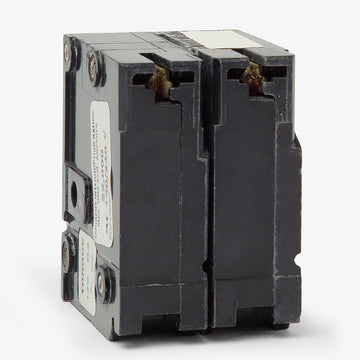

- Plug-On
Eaton / Cutler-Hammer
BRH215
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Part of the BRH series, this 15A, two-pole miniature circuit breaker provides reliable thermal-magnetic protection for residential and commercial systems. It is HACR rated for use with HVAC equipment. Designed for seamless compatibility, the BRH215 mounts into Eaton and legacy Cutler-Hammer Type BR load centers. The plug-on design allows for quick installation, accepting #14-4 AWG wire. Rated at 22 kAIC at 120/240V, this high-interrupting breaker safely clears severe electrical faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|

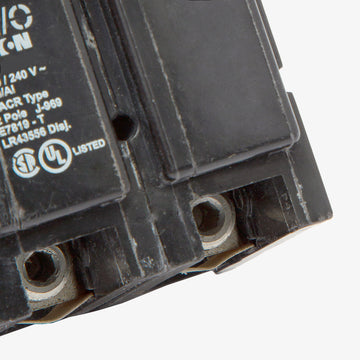

| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C376, HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity, High-Magnetic |
Product FAQs
7 answersWhat load centers are compatible with the BRH215 circuit breaker?
This breaker is designed for use in Eaton Type BR load centers. It is also a direct drop-in replacement for legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger Type BR panels.
What does the H in the BRH215 part number indicate?
The H stands for high-interrupting capacity. While standard BR215 breakers are rated at 10 kAIC, the BRH215 features a 22 kAIC interrupting rating for applications with higher available fault currents.
Is the Eaton BRH215 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 15A, 2-pole breaker.
Can I use the BRH215 to replace an older Westinghouse or Bryant breaker?
Yes. Eaton acquired the Westinghouse and Bryant electrical distribution lines. The modern Eaton Type BR series, including the BRH215, serves as the official replacement for obsolete Westinghouse and Bryant Type BR breakers.
What are the recommended wire torque specifications for the BRH215?
The required torque depends on the wire gauge used. Torque 14-10 AWG wire to 20 in-lbs, 8 AWG to 25 in-lbs, and 6-4 AWG to 35 in-lbs.
Does the BRH215 include ground fault or arc fault protection?
No. The BRH215 is a standard thermal-magnetic breaker providing overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
Does this 2-pole breaker feature a common trip mechanism?
Yes, the BRH215 features an internal common trip mechanism that ensures both poles disconnect simultaneously during an overload or short-circuit event.
