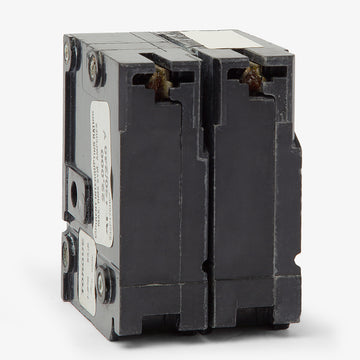

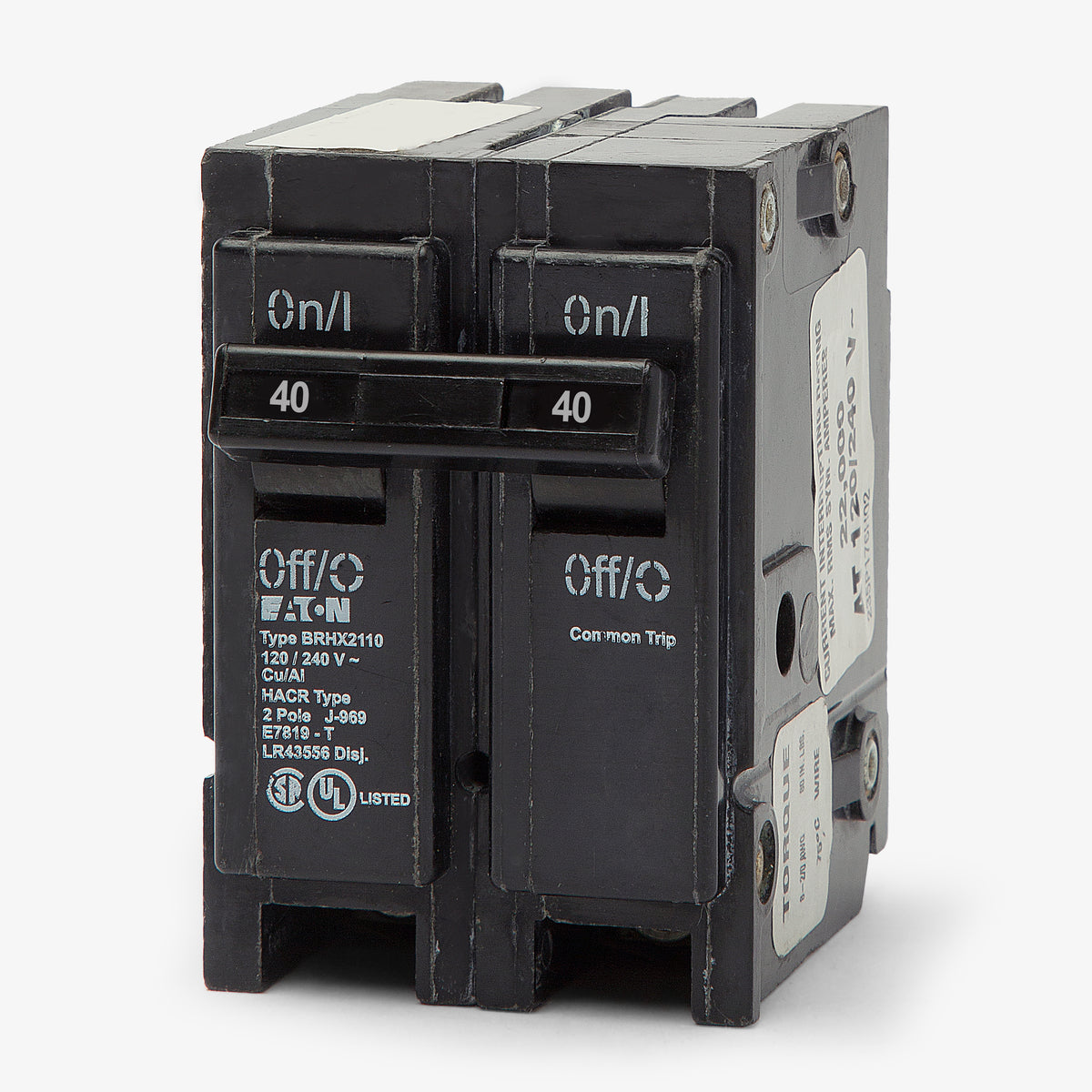

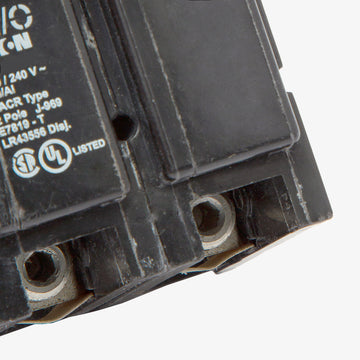

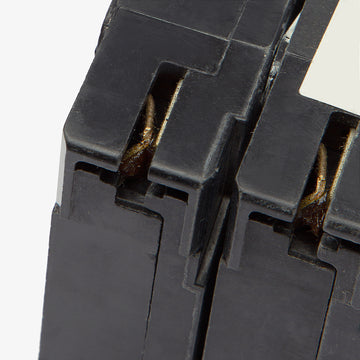

Eaton / Cutler-Hammer BRH240 Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH240
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential and commercial use, the Eaton BRH240 is a 40A, two-pole miniature circuit breaker. It delivers reliable thermal-magnetic protection for 240V loads like ranges and large AC units. This plug-on device mounts into Eaton Type BR load centers and subpanels. The box lug terminals accommodate #14-4 AWG copper or aluminum wiring. Operating at 120/240 VAC, the breaker provides a 22kAIC interrupting rating. It features common trip functionality and carries a HACR rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C376, HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity |
Product FAQs
7 answersWhat panels are compatible with the Eaton BRH240?
This breaker is designed for use in Eaton Type BR load centers. It is also backward compatible with legacy Bryant, Westinghouse, and Challenger panels that accept Type BR breakers.
How many panel spaces does the BRH240 require?
As a 2-pole miniature circuit breaker, it requires two standard 1-inch spaces in a Type BR load center.
What is the difference between the BR240 and the BRH240?
Both are 40A, 2-pole breakers that fit Type BR panels. The BRH240 features a higher interrupting rating of 22kAIC, whereas the standard BR240 is rated for 10kAIC. The BRH240 is required in systems with higher available fault current.
Can I install the BRH240 in a system that only requires a 10kAIC rating?
Yes. The 22kAIC rating exceeds the 10kAIC requirement, making it perfectly safe and code compliant to use in systems with lower available fault current.
Is the BRH240 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires a 40A overcurrent protection device.
What wire types are approved for the box lugs on this breaker?
The terminals accept 14 to 4 AWG copper or aluminum conductors. When terminating aluminum wire, it is recommended to use an approved joint compound or oxide inhibitor to prevent corrosion.
Does the BRH240 replace older Bryant or Westinghouse high-interrupting breakers?
Yes, Eaton acquired the Bryant and Westinghouse lines. The BRH240 is the direct, UL listed replacement for legacy 40A, 2-pole, 22kAIC breakers from those brands that share the Type BR frame.
