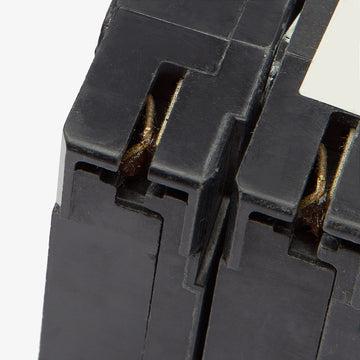

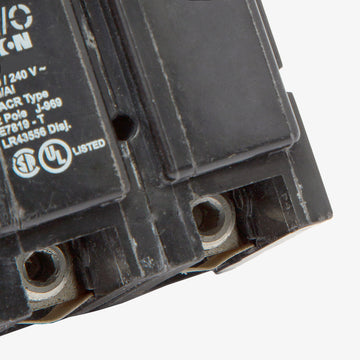

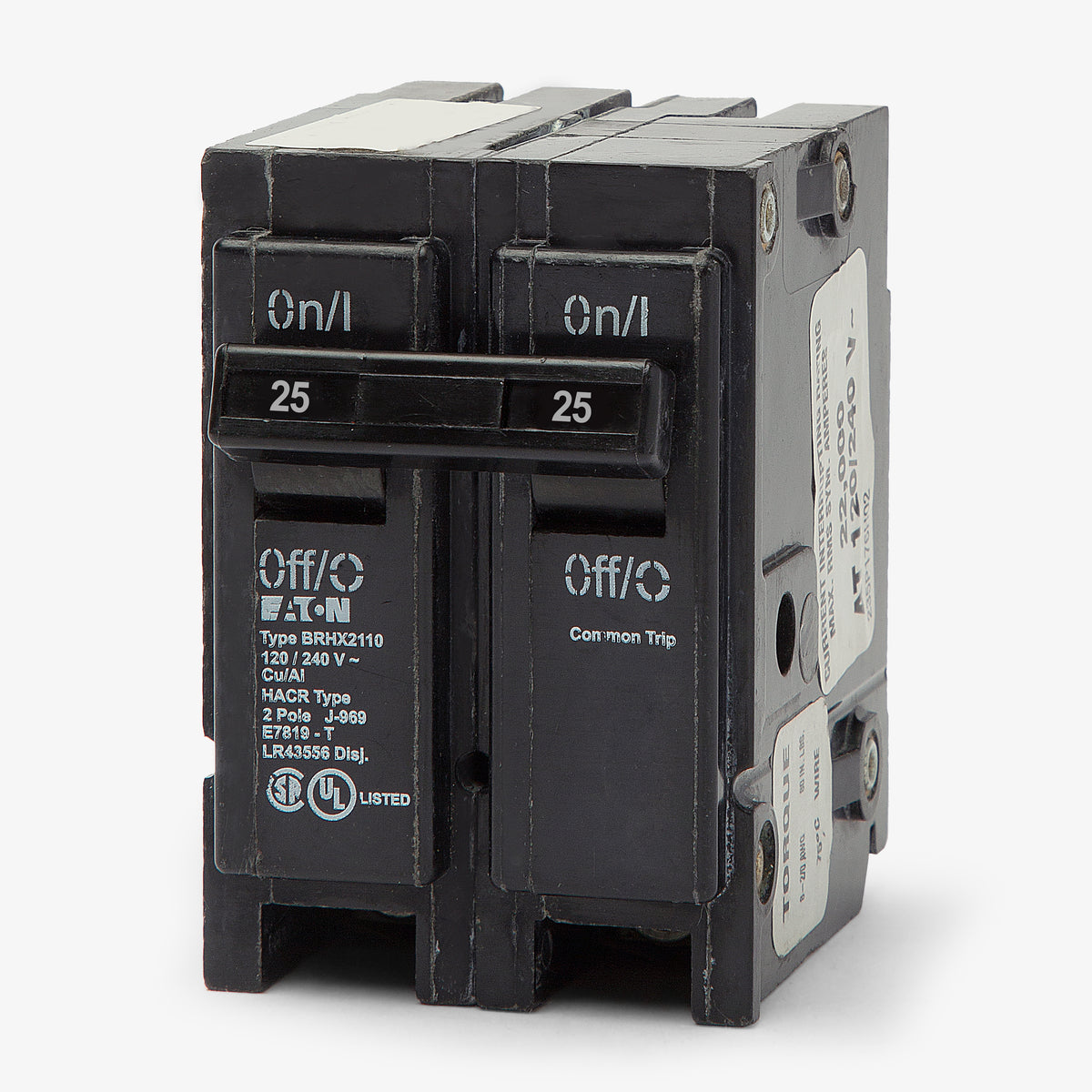

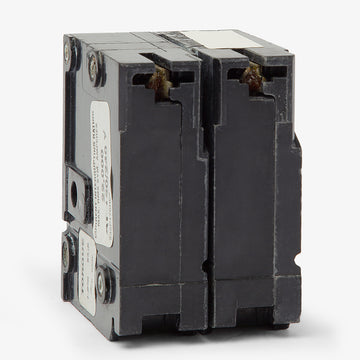

Eaton / Cutler-Hammer BRH225 Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH225
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH225 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for reliable overcurrent protection, this 25A, two-pole miniature circuit breaker is ideal for residential and commercial systems. It carries an HACR rating, allowing it to protect dedicated HVAC circuits. This breaker mounts into Eaton and legacy Cutler-Hammer Type BR load centers. The plug-on design facilitates quick installation, and the terminals accommodate #14-4 AWG wire. With a 22 kAIC rating at 120/240V, the BRH225 safely interrupts high-level fault currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C376, HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity |
Product FAQs
7 answersWhat panels are compatible with the BRH225?
The BRH225 is designed for use in Eaton Type BR load centers. It is also UL listed for use in compatible legacy Westinghouse, Bryant, and Challenger panels that accept Type BR breakers.
What is the difference between an Eaton BR225 and a BRH225?
The primary difference is the interrupting capacity. The standard BR225 has a 10kAIC rating, while the BRH225 features a higher 22kAIC rating for applications requiring higher fault current protection.
Can I use this to replace an older Cutler-Hammer BRH225?
Yes. Eaton acquired Cutler-Hammer, and this Eaton BRH225 is the direct replacement for the legacy Cutler-Hammer version of the same catalog number.
Is the BRH225 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
Can I install a BRH225 in an Eaton Type CH panel?
No. Type BR and Type CH breakers are not interchangeable. The BRH225 features a 1-inch per pole footprint and will only fit Type BR load centers, not the 3/4-inch Type CH panels.
Does the BRH225 require a plug-on neutral panel?
No. The BRH225 is a standard thermal magnetic breaker, not an AFCI or GFCI, so it does not require a plug-on neutral connection. It installs onto the bus bar using a standard plug-on mounting style.
Can I use the BRH225 to replace a 10kAIC breaker?
Yes. You can replace a 10kAIC Type BR breaker with the 22kAIC BRH225, provided the physical dimensions and amperage match. However, you cannot replace a 22kAIC breaker with a 10kAIC version if the panel or system specifies a 22kAIC minimum.
