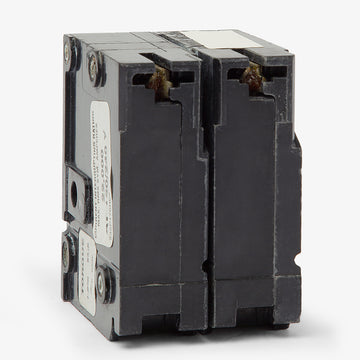

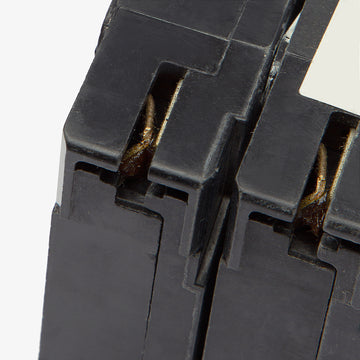

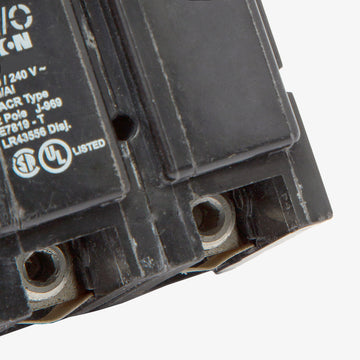

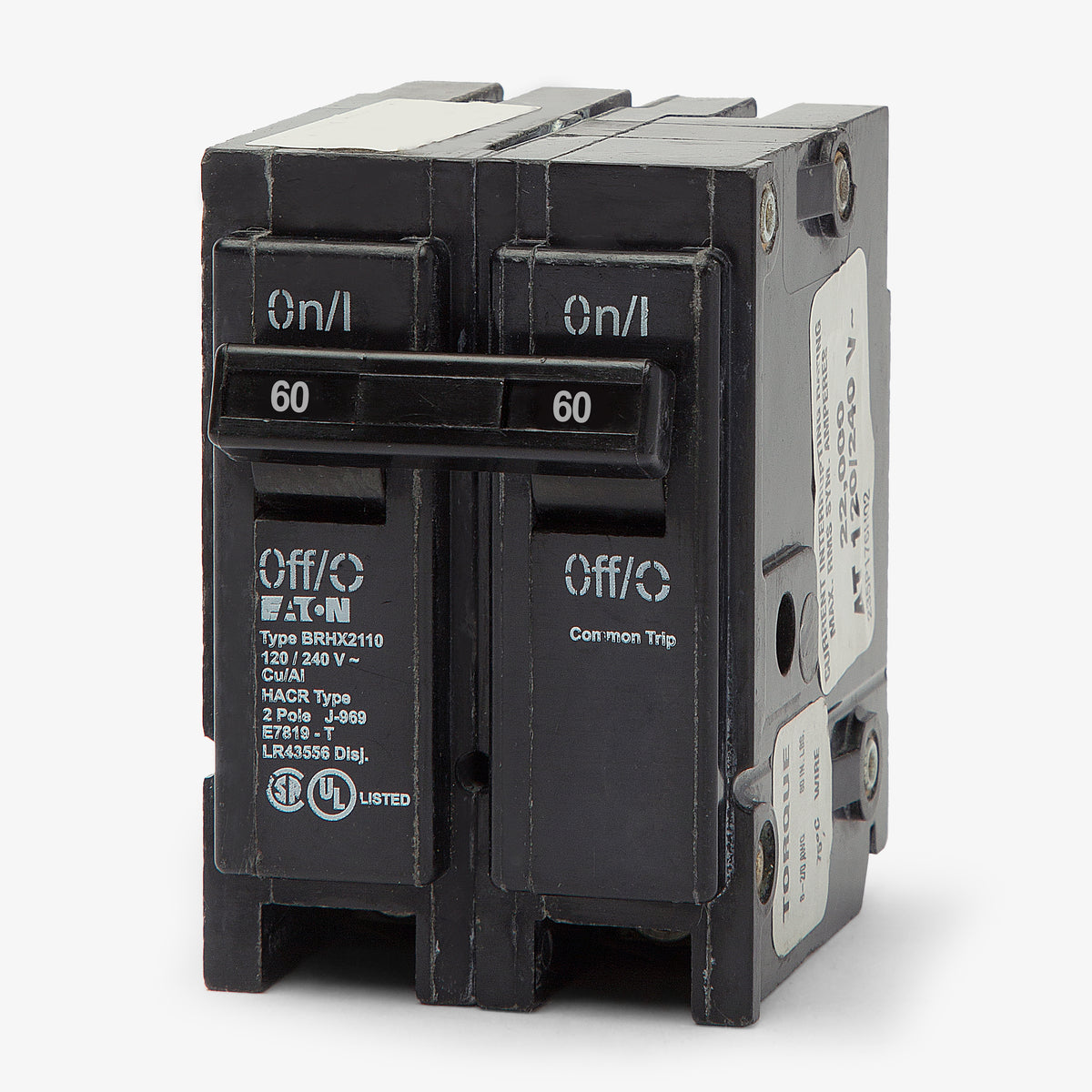

Eaton / Cutler-Hammer BRH260 Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH260
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial applications, this 60-amp miniature circuit breaker delivers dependable thermal-magnetic protection. It installs seamlessly into Eaton Type BR load centers and compatible sub-panels. The BRH260 offers an upgraded 22 kAIC interrupting capacity at 120/240VAC, making it suitable for systems requiring higher fault current ratings. This two-pole unit features a common trip function, accepts 4-1/0 AWG wire, and carries a HACR rating for HVAC circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, Federal Specification W-C376, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity, Rejection Tab, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat load centers are compatible with the BRH260 circuit breaker?
The BRH260 is designed for use in Eaton Type BR load centers. It is also UL-listed for use in legacy Westinghouse, Challenger, and Bryant panels that accept Type BR breakers.
What is the difference between the Eaton BR260 and the BRH260?
The primary difference is the interrupting rating. The standard BR260 has a 10 kAIC rating, while the BRH260 features a higher 22 kAIC rating for systems with higher available fault current. Both share the same physical dimensions and fit Type BR panels.
How much panel space does the BRH260 require?
As a 2-pole, 1-inch per pole miniature circuit breaker, the BRH260 requires two standard 1-inch spaces in a compatible load center.
Is the BRH260 HACR rated for HVAC equipment?
Yes, the BRH260 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 60A, 2-pole breaker.
Can I install a BRH260 in an Eaton Type CH load center?
No. Eaton Type BR breakers, including the BRH260, are not physically compatible with Type CH load centers. Type CH panels require 3/4-inch Type CH breakers.
