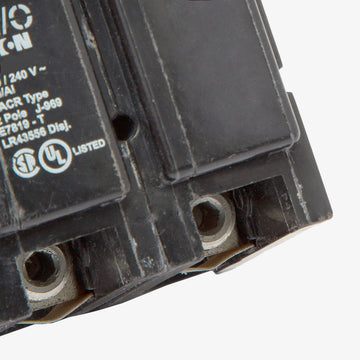

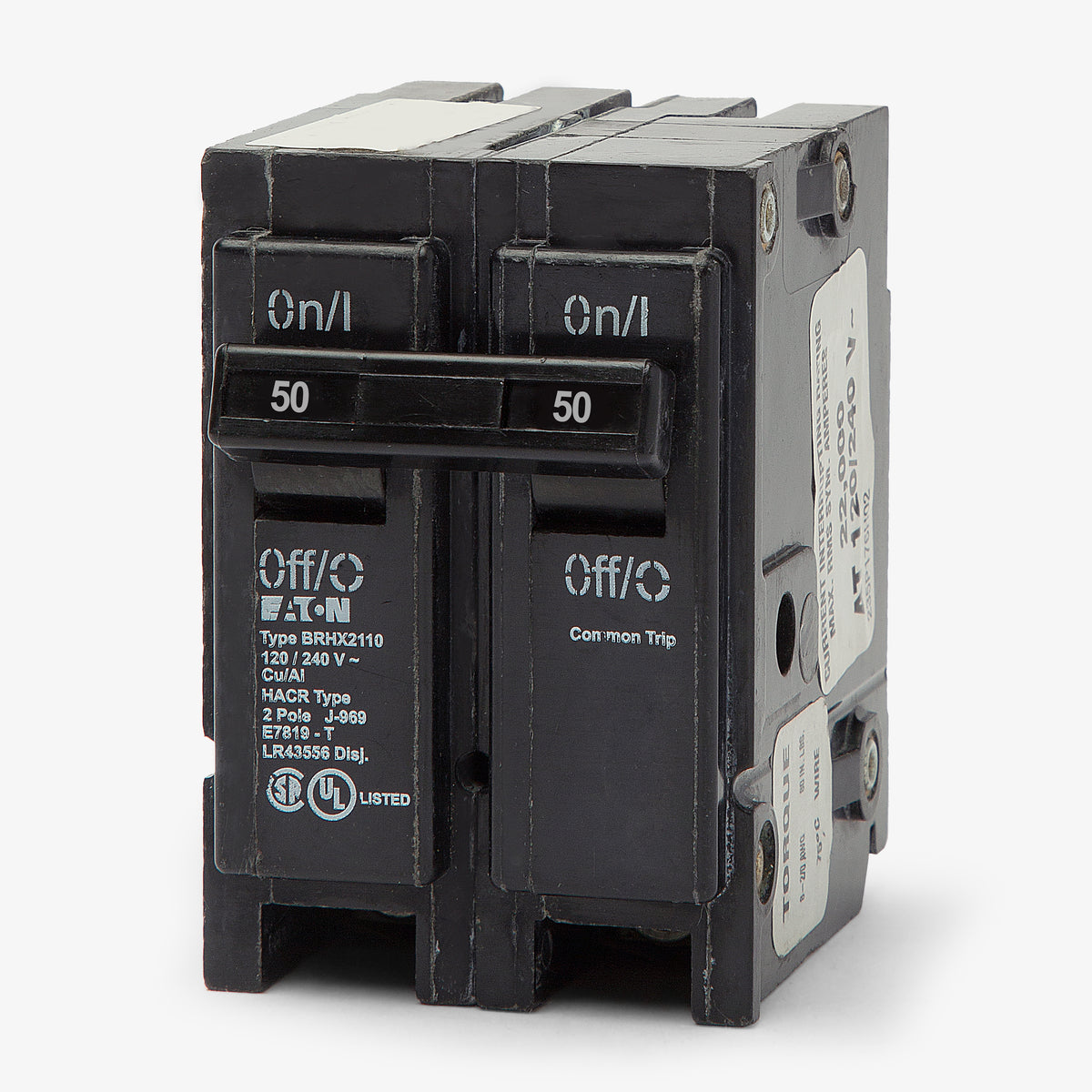

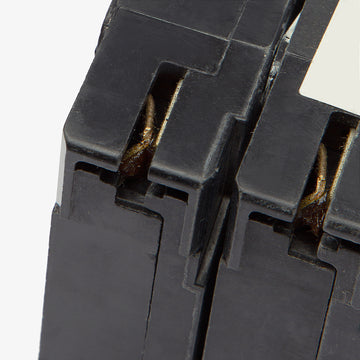

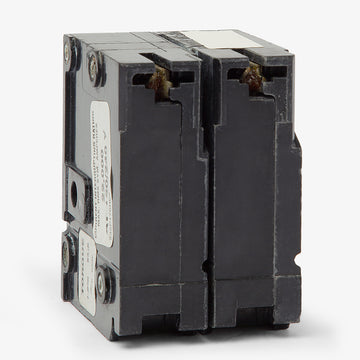

Eaton / Cutler-Hammer BRH250 Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH250
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH250 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Part of the Eaton BR series, this 50A two-pole circuit breaker provides thermal-magnetic overcurrent protection for residential and commercial electrical systems. It mounts into standard Eaton Type BR load centers, meter breaker panels, and spa enclosures. Rated at 22 kAIC at 120/240VAC, the BRH250 features a common trip mechanism and accepts 14-4 AWG copper or aluminum wire. It is UL 489 listed and HACR rated for use with heating, air conditioning, and refrigeration equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, Federal Specification W-C376, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity, Rejection Tab, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat is the difference between the Eaton BRH250 and the standard BR250?
The BRH250 features a higher interrupting rating of 22kAIC at 240V, whereas the standard BR250 is rated for 10kAIC. Both are 50A, 2-pole plug-on breakers designed for Eaton Type BR load centers.
Which load centers are compatible with the BRH250 circuit breaker?
The BRH250 is designed exclusively for use in Eaton Type BR load centers and compatible legacy Cutler-Hammer BR series panels. It uses a plug-on mounting style and requires two standard 1-inch panel spaces.
Can I use the Eaton BRH250 to replace an older Cutler-Hammer BRH250?
Yes. Eaton acquired Cutler-Hammer, and the current Eaton BRH250 is the direct replacement for the legacy Cutler-Hammer BRH250. They share the same physical dimensions, plug-on mounting, and 22kAIC rating.
What wire sizes are accepted by the lugs on the BRH250?
The box lugs on the BRH250 accept 14 AWG to 4 AWG copper or aluminum wire. Always verify that your conductor sizing matches the 50A circuit requirements and local electrical codes.
Does the BRH250 provide GFCI or AFCI protection?
No. The BRH250 is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) functions.
Can I install the BRH250 in an Eaton CH series panel?
No. The BRH250 is a Type BR breaker and is not physically compatible with Eaton CH series load centers. CH panels require CH series breakers, which have a different mounting mechanism and a 3/4-inch width per pole.
