Eaton / Cutler-HammerCHFCAF115
Free Shipping Over $99

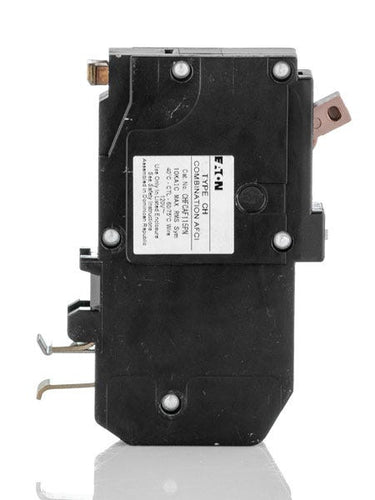

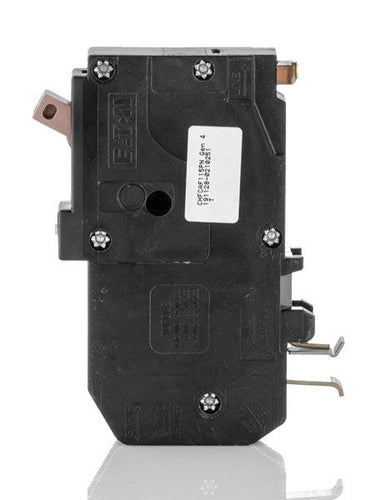

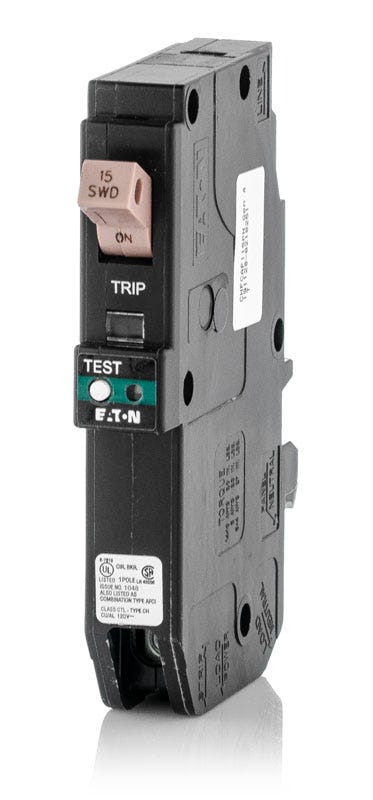

Eaton / Cutler-Hammer CHFCAF115PN AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFCAF115PN
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFCAF115PN
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFCAF115PN - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFCAF120
20A AFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFCAF120PN
20A AFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFP115AF
15A AFCI Miniature Circuit Breaker
Description
Designed for modern residential applications, the Eaton CHFCAF115PN delivers combination arc-fault protection in a single-pole, 15A package. This miniature circuit breaker utilizes a plug-on neutral connection, eliminating the pigtail wire for a cleaner and faster installation in compatible Type CH load centers. Featuring a visual trip flag, it simplifies troubleshooting by clearly indicating fault events. Rated at 10 kAIC for 120/240V systems, this unit has been replaced by the CHFP115AF.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Trip Flag |
| Standards | HACR Rated, Switching Duty Rated, UL 1699 |
| Approval | UL, UL 1699 |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat type of load center is required for the CHFCAF115PN?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH Plug-On Neutral load centers. It occupies a single 3/4-inch space and will not fit Type BR panels or standard CH panels that lack a plug-on neutral bar.
How does the plug-on neutral design of this breaker affect installation?
The plug-on neutral connection eliminates the need to route and terminate a traditional pigtail wire to the panel neutral bar. This reduces wire clutter in the gutter space and speeds up the installation process.
What level of arc fault detection does the CHFCAF115PN provide?
This unit functions as a Combination Arc Fault Circuit Interrupter (CAFCI). It is engineered to detect both high-energy parallel arcs and low-energy series arcs, providing comprehensive fire hazard mitigation for residential branch circuits.
What is the purpose of the visual trip flag on CHF series breakers?
The trip flag provides a clear visual indicator when the breaker trips due to an overload, short circuit, or arc fault. This allows electricians to easily differentiate between a tripped breaker and one that has been manually switched to the OFF position.
What is the difference between the CHFCAF115PN and the standard CHFCAF115?
The CHFCAF115PN features a direct plug-on neutral connection for use in modern Eaton CH PON load centers. The standard CHFCAF115 includes a traditional pigtail wire, which is required for older Type CH panels that do not have a plug-on neutral chassis.
