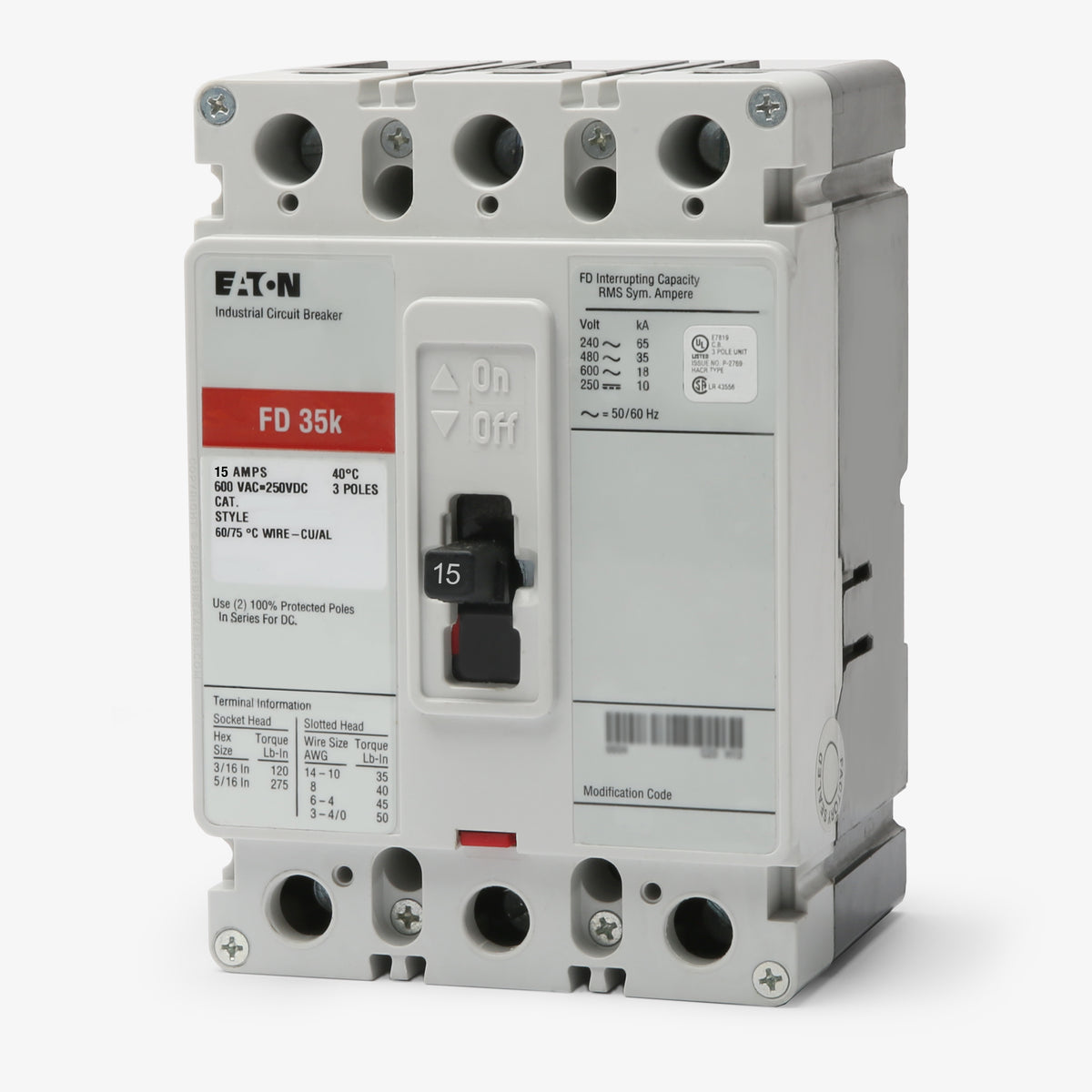

Eaton / Cutler-Hammer FD3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FD3015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD3015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer FD3015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3015 |
| Series | FD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer FD3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3015-R |
| Series | FD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Providing robust 3-phase protection, the Eaton FD3015 is a 3-pole, 15A molded case circuit breaker from the Series C F-Frame lineup. It is engineered to safeguard commercial electrical systems against overloads and short circuits. This bolt-on breaker is designed for use with Eaton Series C panelboards and motor control centers. When upgrading, it is replaced by the PDG23G0015TFFJ. With a maximum voltage of 600VAC, it delivers a 35kAIC rating at 480V and is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3015 |
| Series | FD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
4 answersCan the Eaton FD3015 replace older Cutler-Hammer or Westinghouse breakers?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse product lines, so the current Eaton FD3015 serves as a direct replacement for legacy breakers carrying the same FD3015 catalog number.
Is the FD3015 circuit breaker HACR rated?
Yes. All Eaton Series C F-frame molded case circuit breakers carry a Heating, Air Conditioning, and Refrigeration (HACR) rating for use in HVAC equipment circuits.
Is this breaker suitable for High Intensity Discharge (HID) lighting circuits?
Yes. Eaton Series C F-frame circuit breakers rated between 10A and 30A are fully approved for switching HID lighting loads. As a 15A breaker, the FD3015 meets this requirement.
Can the FD3015 be used in reverse-feed applications?
Yes. The Eaton Series C F-frame design is suitable for reverse feeding, allowing it to be used in applications where the line side and load side connections must be swapped.
