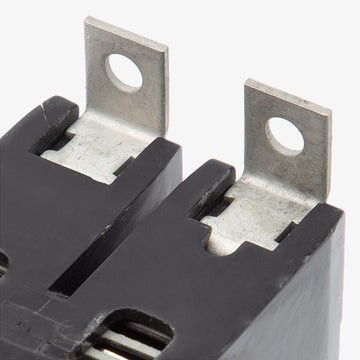

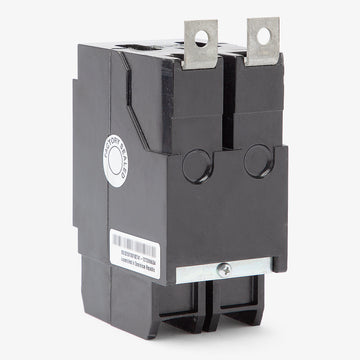

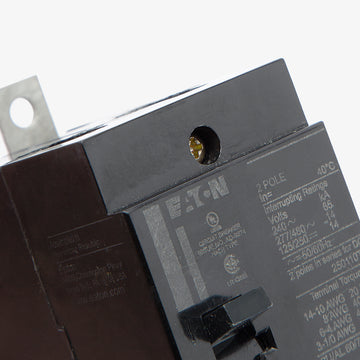

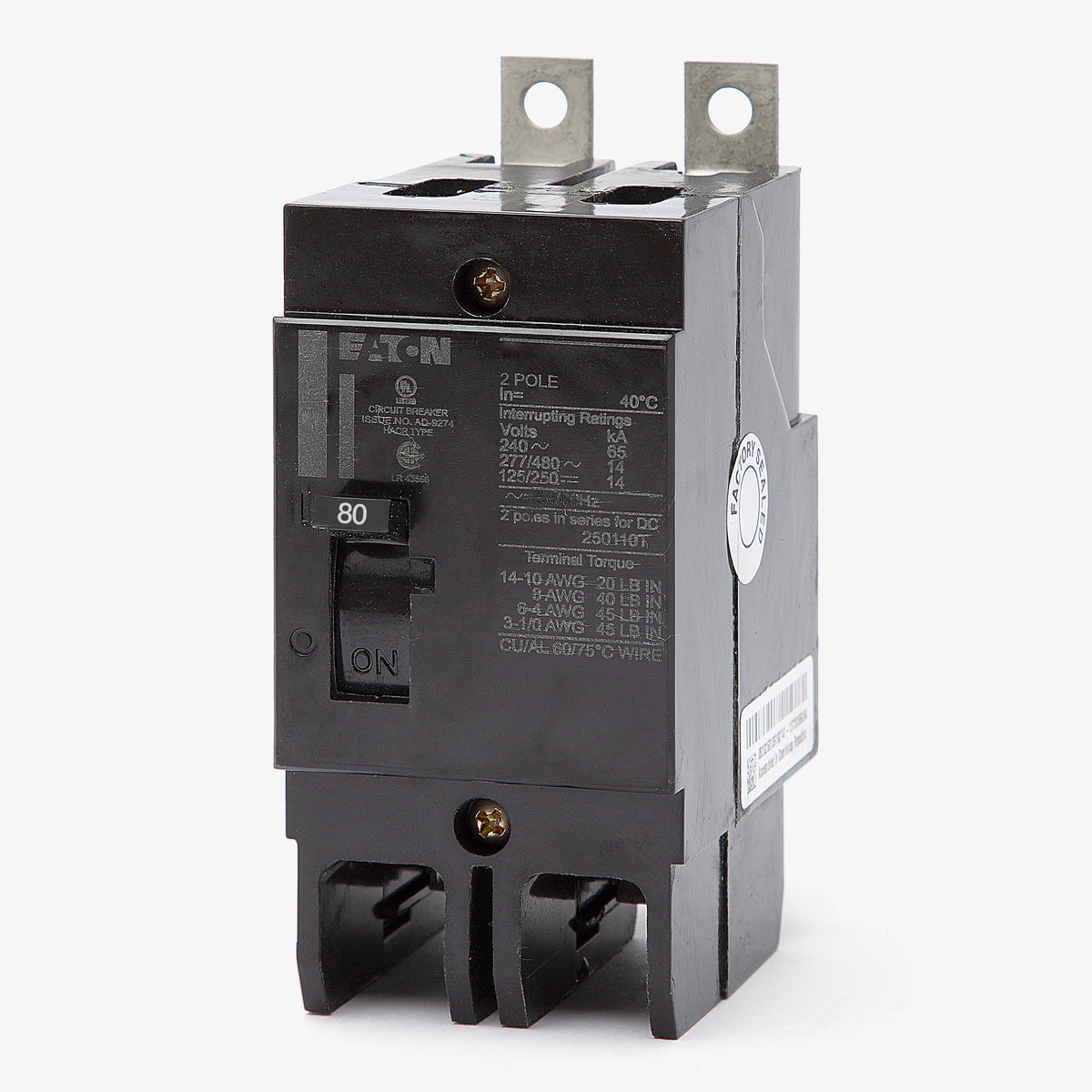

Eaton / Cutler-Hammer GHB2080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2080
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB2080 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Eaton GHB2080 is a 2-pole, 80A molded case circuit breaker. It features a compact G-Frame design with fixed thermal-magnetic trip units. This bolt-on MCCB installs into Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards. It includes load side lugs and accepts 10-1/0 AWG wire. Rated 14 kAIC at 480Y/277V, it provides robust fault clearing. The unit is HACR rated and reverse feed capable for flexible deployment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the GHB2080 circuit breaker?
The GHB2080 is designed for use in Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards. It features a bolt-on mounting style specific to the bus structure of these distribution systems.
Can I use the GHB2080 on an ungrounded 480V Delta system?
No. The 480Y/277VAC rating indicates this breaker is strictly for use on solidly grounded Wye systems where the line-to-neutral voltage is 277V. It lacks the full 480V rating required for ungrounded or corner-grounded Delta systems.
Is the GHB2080 suitable for reverse-feed applications?
Yes. Eaton Series C G-frame circuit breakers, including the GHB2080, do not have line or load restrictions and are suitable for reverse-feed installations.
Can this Eaton breaker replace an older Westinghouse GHB2080?
Yes. Eaton acquired the Westinghouse distribution equipment line. Eaton, Cutler-Hammer, and Westinghouse GHB breakers share the exact same physical dimensions and electrical characteristics, making them direct replacements.
What are the lug torque specifications for the GHB2080?
Torque values depend on the installed wire size. For Eaton G-frame breakers, standard torque is 20 in-lbs for 14 to 10 AWG, 40 in-lbs for 8 AWG, and 45 in-lbs for 6 to 1/0 AWG. Always verify against the breaker nameplate prior to installation.
Is the GHB2080 HACR rated?
Yes, Eaton G-frame molded case circuit breakers are HACR rated, meaning they are approved for use with heating, air conditioning, and refrigeration equipment.
Does the 2-pole GHB2080 feature an internal common trip?
Yes. Like all multi-pole Eaton G-frame breakers, it features an internal common trip mechanism. If an overcurrent or short circuit occurs on one pole, both poles will trip simultaneously to safely disconnect the entire circuit.
