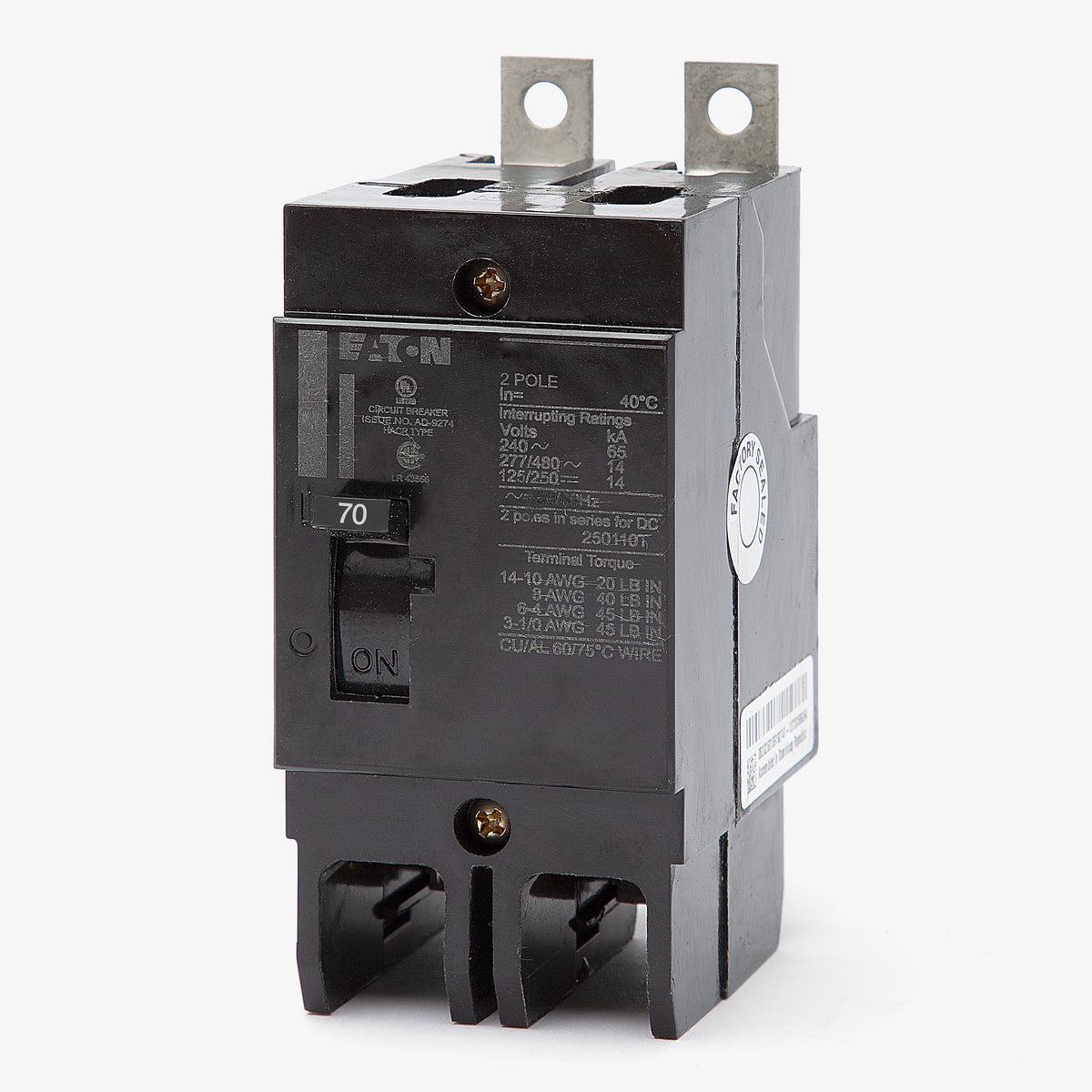

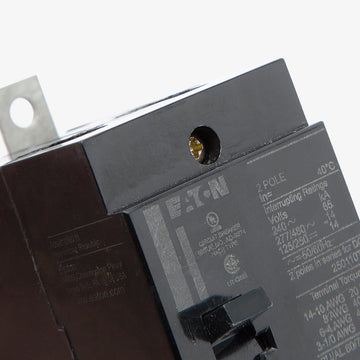

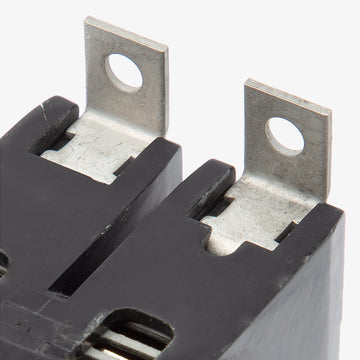

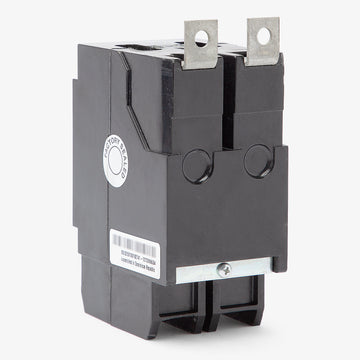

Eaton / Cutler-Hammer GHB2070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2070
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB2070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
The GHB2070 is part of Eaton's robust Series C G-Frame lineup, offering 70 amps of thermal-magnetic protection for commercial and industrial facilities. It is engineered to safeguard branch circuits against overloads and short circuits. This two-pole breaker bolts into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. Featuring a 14 kAIC rating at 480Y/277 VAC and 65 kAIC at 240 VAC, it includes non-interchangeable trip units and supports reverse feed installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the GHB2070 circuit breaker?
The GHB2070 is designed to bolt into Eaton Pow-R-Line panelboards, Series C panelboards, as well as compatible switchboards and motor control centers.
What wire sizes do the lugs on the GHB2070 accept?
The standard lugs on this 70A breaker accept #10 to 1/0 AWG copper or aluminum (Cu/Al) wire.
Can the GHB2070 be used in DC applications?
Yes, this thermal-magnetic breaker is rated for DC systems, providing up to 14 kAIC of interrupting capacity at 125/250V DC.
How does the GHB2070 mount into the panelboard?
It features a bolt-on connection type, meaning it physically bolts directly to the panelboard bus for a secure, vibration-resistant installation.
Is the trip unit on the GHB2070 adjustable?
No, it features a fixed thermal-magnetic trip unit with non-adjustable long-time and instantaneous (LI) trip functions.
Is the GHB2070 suitable for reverse feed applications?
Yes, Eaton G-Frame circuit breakers, including the GHB2070, are suitable for reverse feed installations.
What breaker family does the GHB2070 belong to?
The GHB2070 is part of the Eaton / Cutler-Hammer Series C family and utilizes the G-Frame design.
Can the GHB2070 be used on a 480V ungrounded Delta system?
No. Because it is a slash-rated breaker (480Y/277V AC), it is only approved for use on solidly grounded Wye systems where the line-to-ground voltage does not exceed 277V. It cannot be used on ungrounded or corner-grounded 480V Delta systems.
