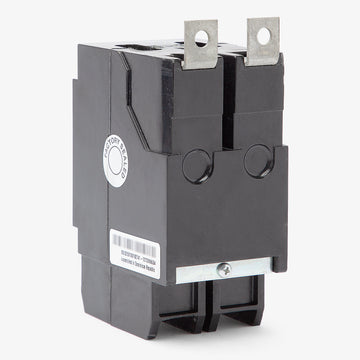

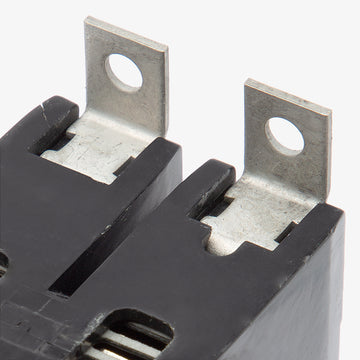

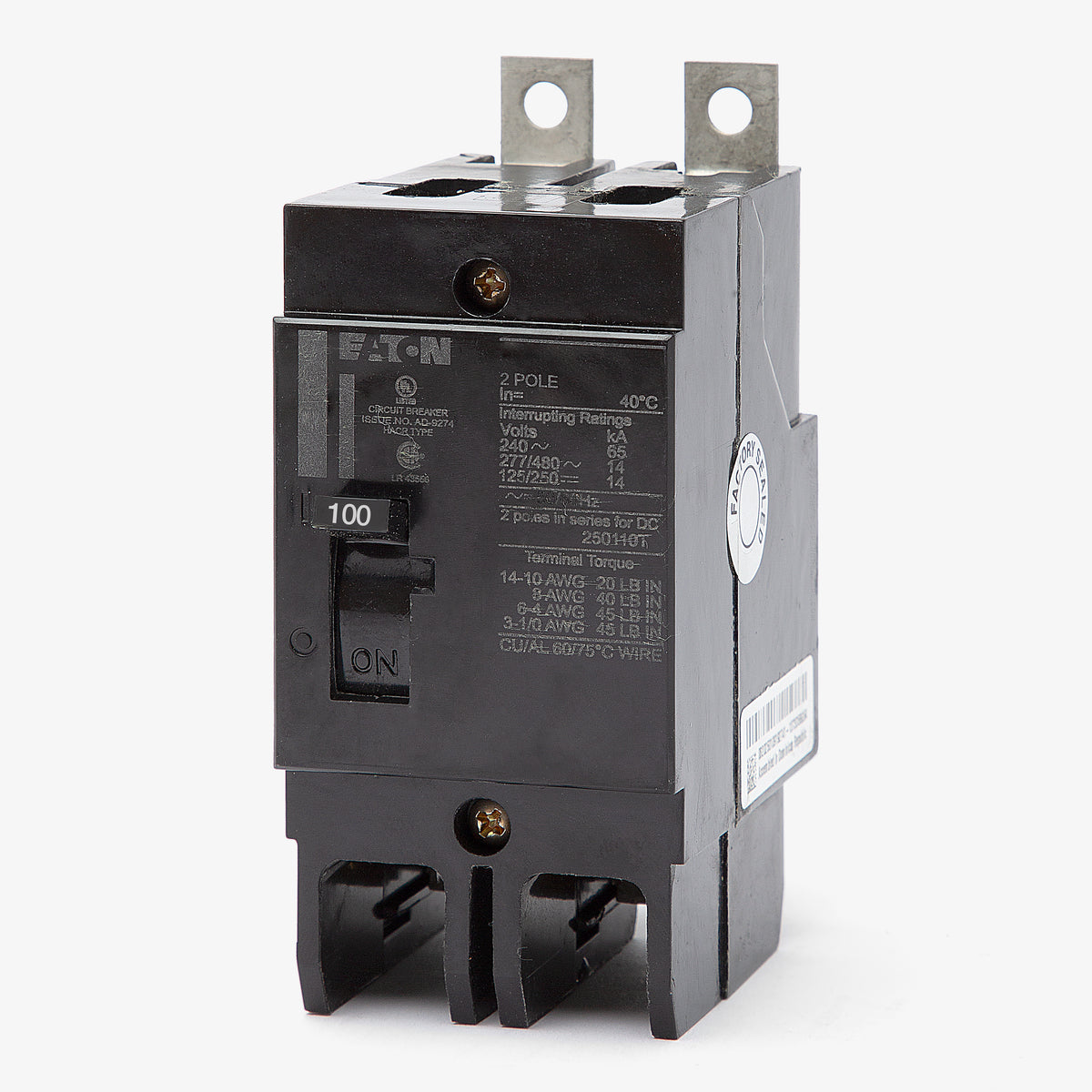

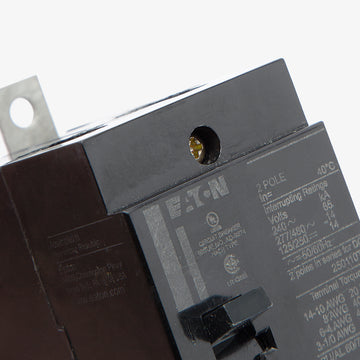

Eaton / Cutler-Hammer GHB2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2100 |
| Series | GHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2100-R |
| Series | GHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for high-capacity industrial applications, this 100A thermal-magnetic breaker provides dependable long-time and instantaneous fault protection. The device integrates smoothly into Eaton Pow-R-Line 2 (PRL2), Pow-R-Line 3 (PRL3), and Series C panelboards. It utilizes standard load side lugs accepting 10-1/0 AWG wire sizes. Boasting a 65kAIC rating at 240VAC and reverse feed compatibility, this HACR-rated component is optimized for demanding commercial electrical systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2100 |
| Series | GHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the GHB2100 circuit breaker?
The GHB2100 is designed for use in Eaton and Cutler-Hammer Series C panelboards, as well as Pow-R-Line 2 (PRL2) and Pow-R-Line 3 (PRL3) panelboards. It requires the appropriate twin or single connector kits (such as KPRL series hardware) specific to your panelboard model for installation.
What does the 480Y/277VAC voltage rating on the GHB2100 signify?
This slash rating indicates the breaker is intended strictly for use on solidly grounded Wye systems where the line-to-neutral voltage is 277V and the line-to-line voltage is 480V. It is not approved for use on 480V ungrounded or corner-grounded Delta systems.
What are the terminal torque specifications for the GHB2100 lugs?
Torque requirements for Eaton G-frame breakers vary based on the wire gauge. Standard torque is 20 in-lbs for 10 AWG wire, 40 in-lbs for 8 AWG, and 45 in-lbs for 6 AWG up to 1/0 AWG conductors. Always verify the exact torque values printed on the breaker nameplate prior to termination.
Can the GHB2100 be reverse fed?
Yes, Eaton G-frame molded case circuit breakers, including the GHB2100, are suitable for reverse feed applications.
Is there a difference between the Eaton GHB2100 and the Cutler-Hammer GHB2100?
No, there is no technical difference. Eaton acquired Cutler-Hammer and continues to manufacture these G-frame breakers to the exact same specifications. The breaker you receive may feature either brand name, but the UL listings, physical dimensions, and trip units are identical.
