Eaton / Cutler-Hammer PDG23F0200TFFJ Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0200TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0200TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

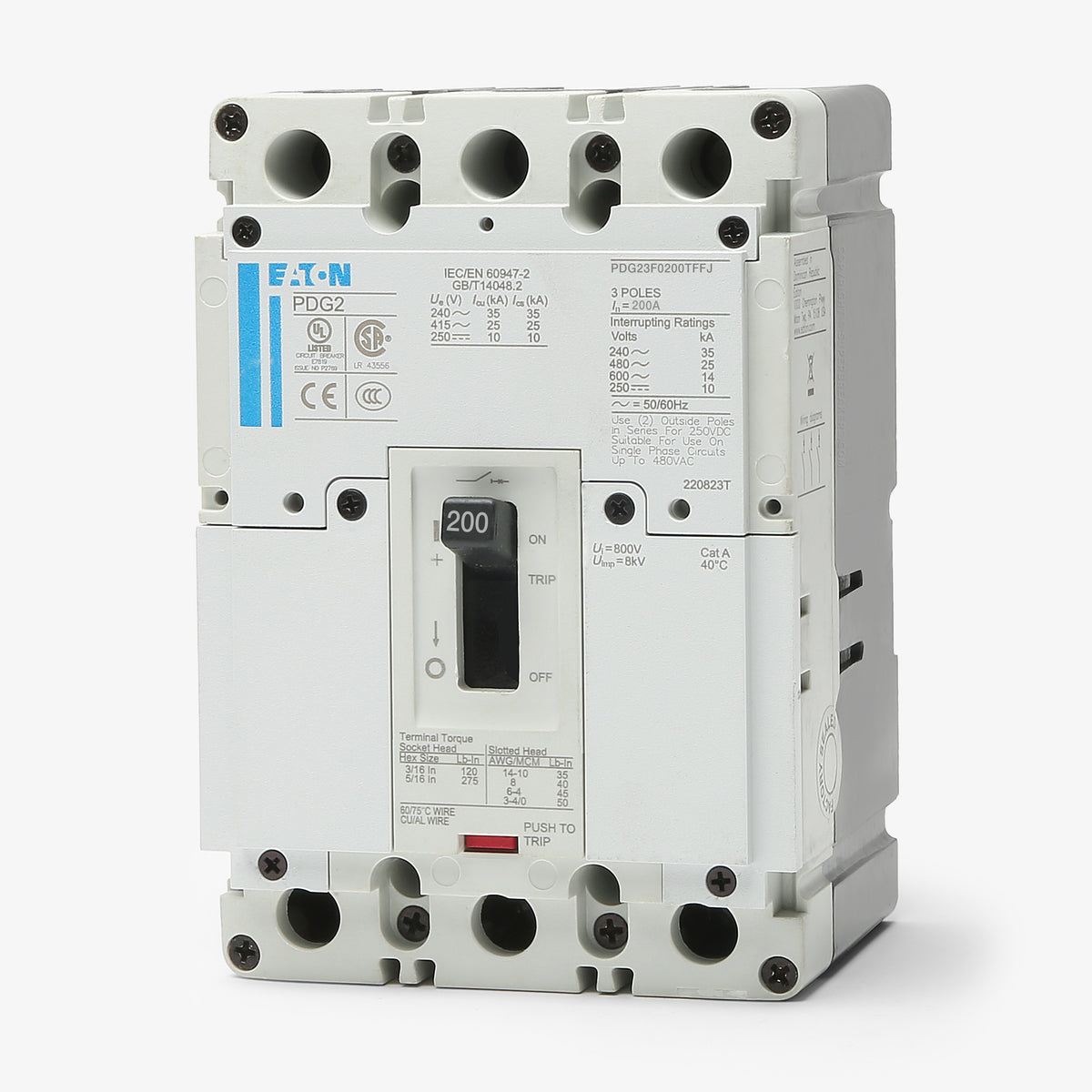

Eaton / Cutler-Hammer PDG23F0200TFFJ - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG23F0200TFFJ provides robust overcurrent protection within the Power Defense Frame 2 family. This 200A, 3-pole MCCB features a fixed thermal-magnetic (LI) trip unit for standard distribution needs. It installs into Eaton Power Defense panelboards and serves as a drop-in substitute for discontinued EHD3200 and FDB3200 breakers. Rated 25 kAIC at 480VAC, the unit includes standard line and load lugs for immediate integration.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0200TFFJ |
| Series | PDG2 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Frame 2 Enclosures and Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting |
Product FAQs
6 answersWhich discontinued Eaton circuit breakers does the PDG23F0200TFFJ replace?
This Power Defense Frame 2 model is a modern replacement for legacy 200A, 3-pole Series C F-frame breakers. This includes discontinued catalog numbers such as the EHD3200 and FDB3200. Updated Eaton mounting hardware is required for the retrofit.
Can I use older Series C lugs on this Frame 2 breaker?

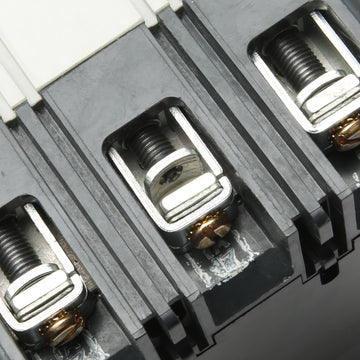

Yes. Power Defense Frame 2 circuit breakers are fully backward compatible with legacy Series C F-frame terminal lugs. The PDG23F0200TFFJ ships with standard line and load lugs already installed.
What type of enclosure or panelboard is this breaker designed for?
This 200A molded case circuit breaker is engineered specifically for seamless integration with Eaton Power Defense Frame 2 enclosures and panelboards.
Are the thermal and magnetic trip limits field adjustable?
No. The thermal-magnetic trip unit on the PDG23F0200TFFJ is fixed for both long-time (thermal) and instantaneous (magnetic) protection. If your application requires adjustable settings, you must select a Power Defense model equipped with an electronic trip unit.
Does this breaker support DIN rail mounting?
Yes. Along with standard panelboard mounting, this Frame 2 circuit breaker is designed to support DIN rail configurations for flexible installation in industrial control panels.
What global safety certifications does this breaker carry?
This globally rated Power Defense circuit breaker is certified to UL 489, CSA, CCC, and IEC 60947-2 standards for safe use in worldwide commercial and industrial power distribution systems.
