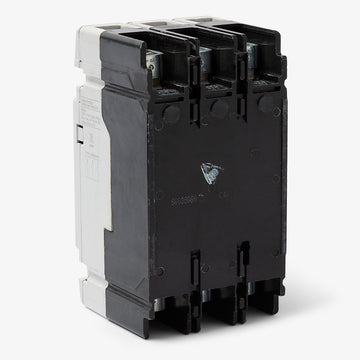

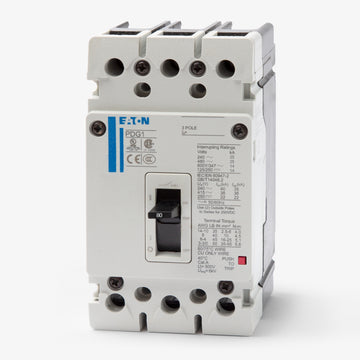

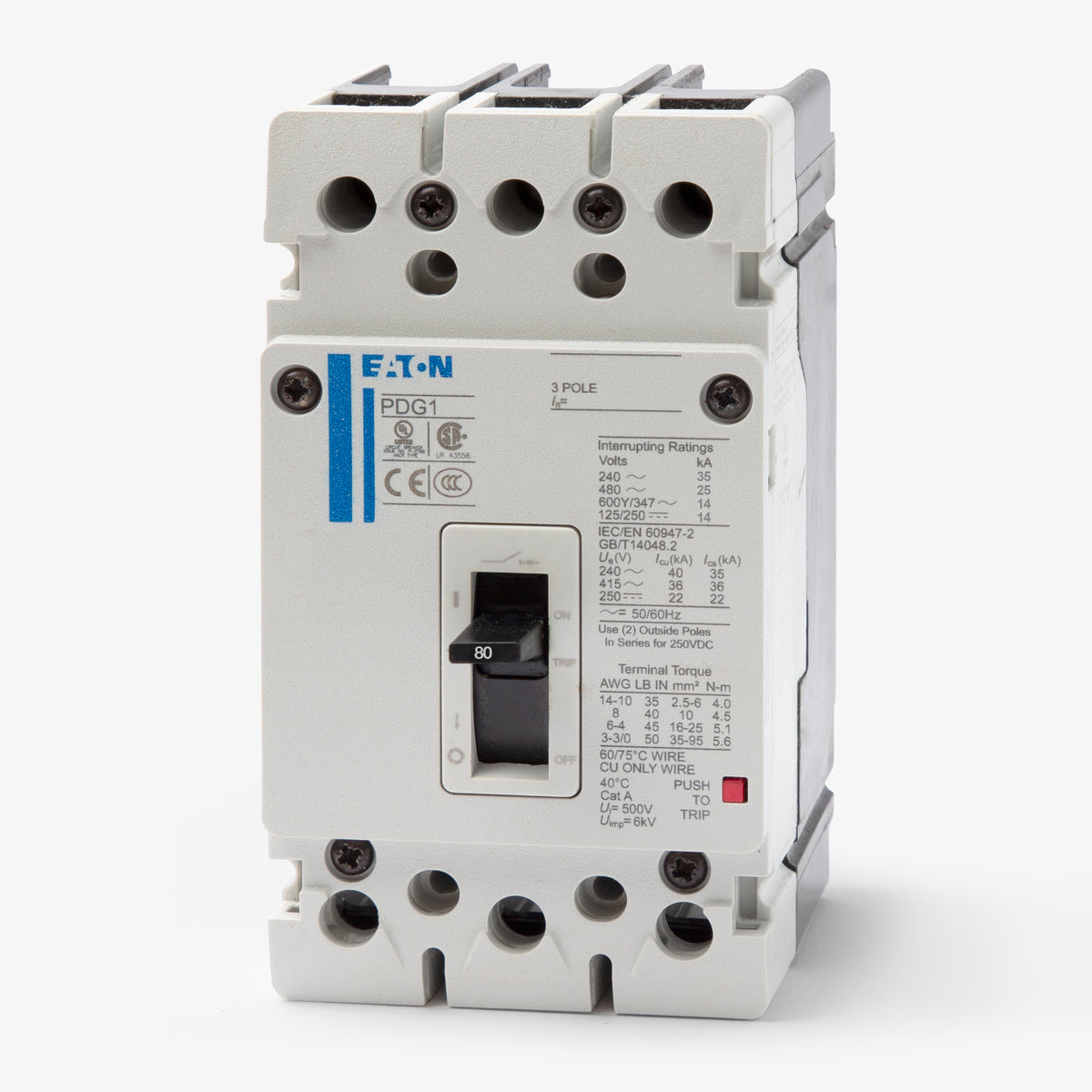

Eaton / Cutler-Hammer PDG13C0080TFFJ Molded Case Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0080TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0080TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0080TFFJ - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13C0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Description
Operating within the Power Defense Frame 1 series, this 80A, 3-pole breaker delivers fixed thermal and magnetic (LI) circuit protection. It is engineered to safeguard industrial electrical infrastructure. This component installs into Eaton Pow-R-Line panelboards and acts as a cross-reference for discontinued EGB3080FFG models. Box lug terminals are included for straightforward wiring. Delivering an 18kAIC rating at 480VAC, the globally rated breaker ensures excellent fault current limitation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
7 answersCan the PDG13C0080TFFJ be installed in standard Eaton panelboards?
This Frame 1 breaker is specifically designed for Eaton Power Defense and Pow-R-Line panelboards. It is not universally compatible with all Eaton load centers, so verify your panel type before installation.
Can the PDG13C0080TFFJ replace older Cutler-Hammer breakers?
Yes, the Power Defense PDG1 series is the modern replacement for discontinued Cutler-Hammer EGB series breakers. Specifically, this model serves as a direct cross-reference for the obsolete EGB3080FFG.
Are the lugs included with the PDG13C0080TFFJ, and what wire types do they accept?

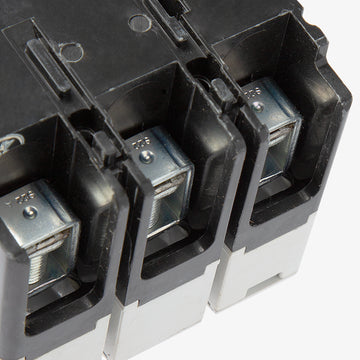

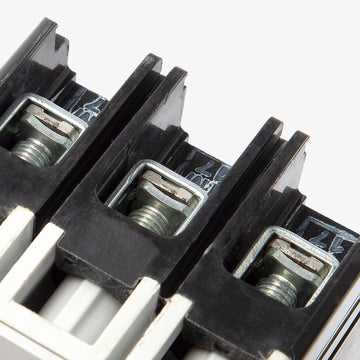

Yes, standard box lugs are factory-installed on the line and load sides. They accept 14 AWG to 3/0 AWG conductors and are dual-rated for both aluminum and copper (Al/Cu) wire.
Is the PDG13C0080TFFJ suitable for direct current (DC) applications?
Yes, because it utilizes a thermal-magnetic trip unit, this breaker is rated for 250VDC applications with a 10kA interrupting capacity. Note that the 250VDC rating is typically achieved by wiring two poles in series.
Does the PDG13C0080TFFJ feature adjustable trip settings for coordination?
No, this specific model uses a fixed thermal and fixed magnetic (LI) trip unit. If your electrical system requires adjustable long-time or instantaneous pickup settings for selective coordination, you will need to select a Power Defense breaker equipped with a PXR electronic trip unit.
What does the C in the PDG13C0080TFFJ catalog number indicate?
In the Eaton Power Defense catalog nomenclature, the C indicates the interrupting capacity tier. For Frame 1 breakers, this designates a standard 18kAIC rating at 480VAC.
What is the maximum amperage capacity of the Power Defense Frame 1 series?
The Eaton Power Defense Frame 1 (PDG1) series covers continuous current ratings from 15A up to 125A. This specific PDG13C0080TFFJ model is factory-set for an 80A continuous current.
