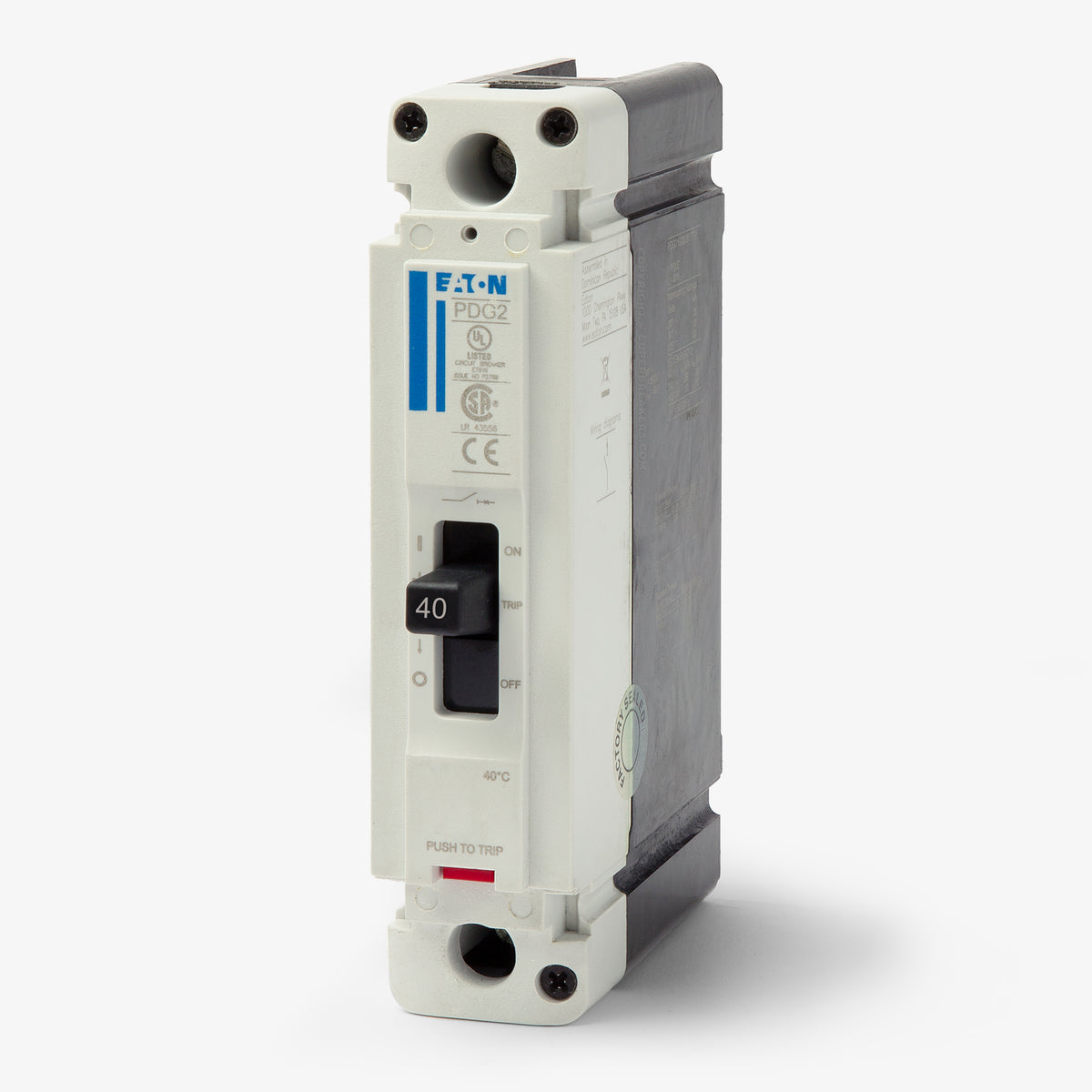

Eaton / Cutler-Hammer PDG21G0040TFFJ Molded Case Circuit Breaker
- 40A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0040TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0040TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21G0040TFFJ - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21G0050TFFJ
50A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0030TFFJ
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Description
Designed for global applications, the Eaton PDG21G0040TFFJ is a 1-pole, 40A molded case circuit breaker from the advanced Power Defense Frame 2 family. This panel-mount MCCB fits seamlessly into Eaton enclosures and panelboards, offering an exact replacement for older FD1040 models. Featuring a 65 kAIC rating at 240VAC and fixed thermal-magnetic trip technology (LI), it includes both line and load lugs to facilitate straightforward connections in commercial and industrial environments.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG21G0040TFFJ |
| Series | PDG2 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Rotary Handle |
|---|---|

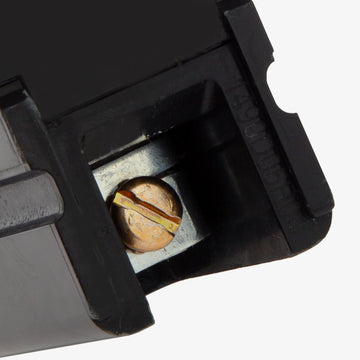

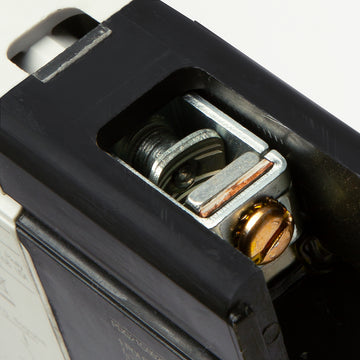

| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
5 answersWhat legacy Cutler-Hammer breaker does the PDG21G0040TFFJ replace?
This Power Defense Frame 2 breaker serves as an exact replacement for the older FD1040 molded case circuit breaker.
Are the thermal and magnetic trip points adjustable on this breaker?
No, the PDG21G0040TFFJ features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection settings cannot be modified in the field.
What equipment is the PDG21G0040TFFJ designed to fit?
This breaker is specifically engineered for installation within Eaton Power Defense enclosures and panelboards.
What international standards does the PDG21G0040TFFJ meet?
This breaker is globally rated and carries certifications for UL 489, CSA, IEC 60947-2, and CCC standards.
Does this breaker provide ground fault or arc fault protection?
No, the PDG21G0040TFFJ is a standard thermal magnetic breaker with long-time and instantaneous (LI) functions. It does not include ground fault or arc fault protection circuitry.
